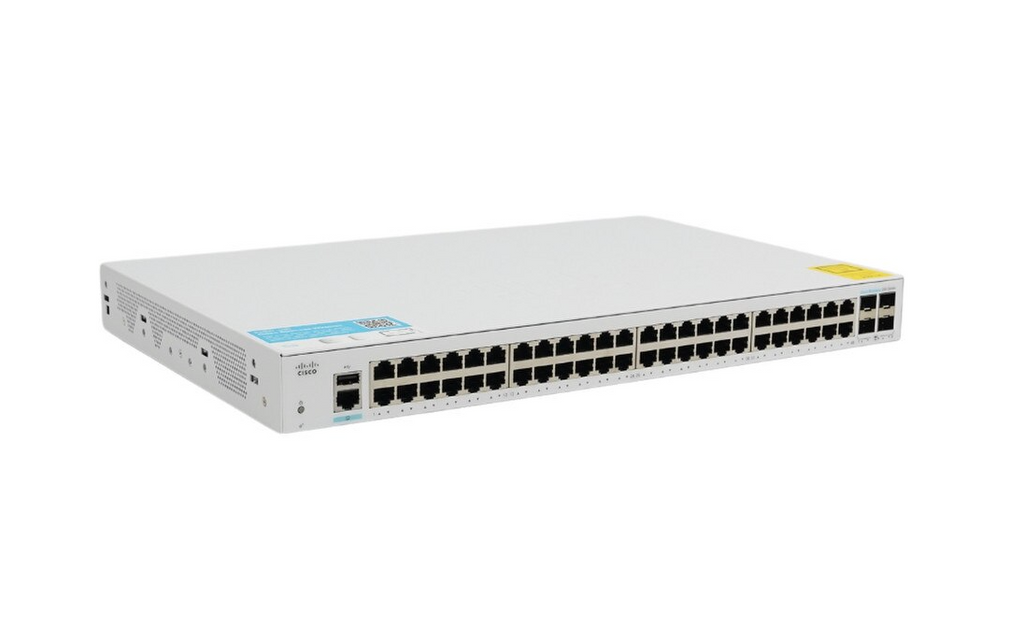

Model | Cisco CBS250-48T-4X |
Product Type | Smart Managed Switch (Layer 2+) |
Ports | 48 × 10/100/1000 RJ-45, 4 × 10G SFP+ |
Switching Capacity | 176 Gbps |
Forwarding Rate | 130.94 Mpps |
MAC Address Table | 8K entries |
Packet Buffer | 3 MB |
VLAN Support | Up to 255 active VLANs, 802.1Q, voice VLAN, guest VLAN |
Layer 3 Features | Static IPv4 routing, 32 static routes, 16 IP interfaces |
Management | Web UI, CLI, SNMP, RMON, HTTPS, SSH |
Security Features | Port security, DHCP snooping, RADIUS, ACLs, 802.1X |
Link Aggregation | Yes (LACP support) |
Spanning Tree | STP, RSTP, MSTP |
Power Consumption | ~51.01 W (typical) |
Dimensions | 17.5 × 10.7 × 1.7 in (44.5 × 27.2 × 4.4 cm) |
Weight | 8.71 lbs (3.95 kg) |
Operating Temperature | 23°F to 122°F (–5°C to 50°C) |
