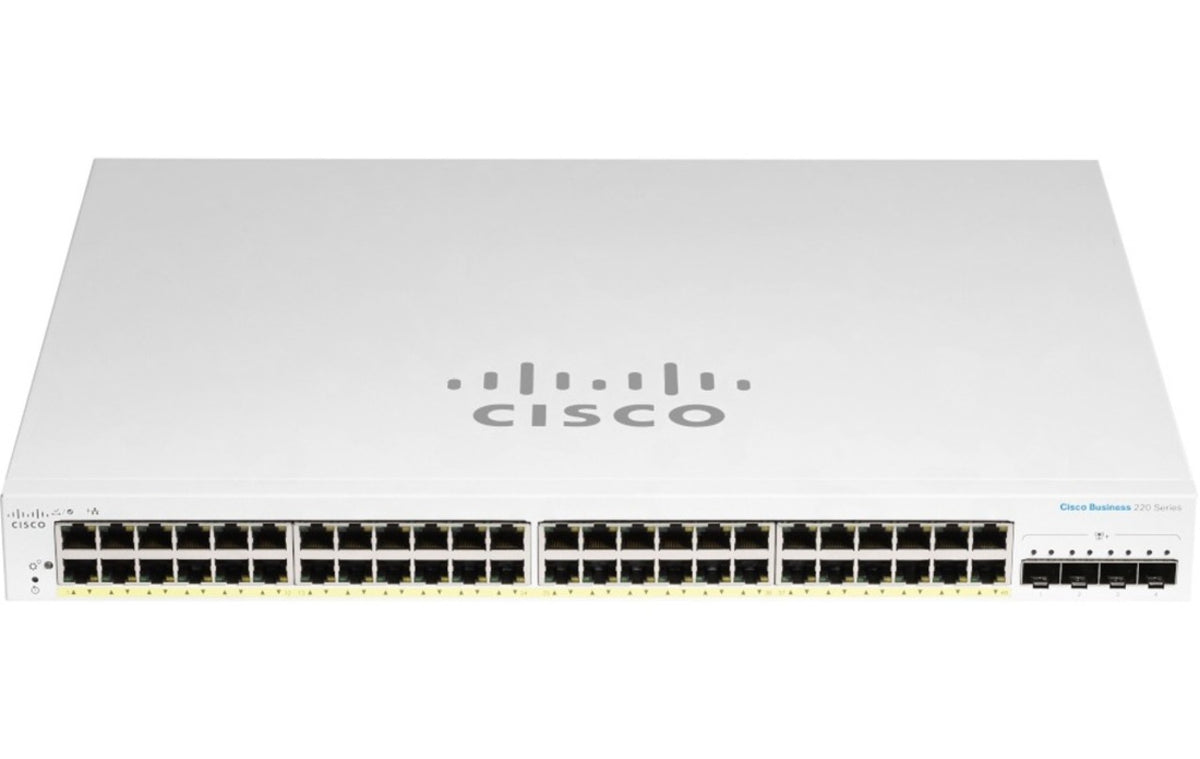

| Product & Series | Cisco CBS220-48P-4X, part of the Cisco Business 220 Series Smart Switches |
| Access Ports | 48 x 10/100/1000 PoE+ ports, up to 30W per port |
| PoE Power Budget | 382W |
| Uplink Ports | 4 x 10G SFP+ |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.94 Mpps |
| Packet Buffer | 16 Mb |
| MAC Table | Up to 8,192 MAC addresses |
| VLANs | Up to 256 VLANs |
| Jumbo Frames | Frame sizes up to 9,216 |
| Multicast | 256 multicast groups |
| Spanning Tree | 802.1d Spanning Tree, 802.1w RSTP, 802.1s MSTP with 16 instances |
| Link Aggregation | IEEE 802.3ad LACP, up to 8 groups, up to 8 ports per group |
| Port Mirroring | Port or VLAN mirroring, 4 sessions |
| Storm Control | Broadcast, multicast and unknown unicast |
| QoS | 8 hardware queues per port, DSCP and 802.1p CoS queue assignment |
| Security | 802.1X with RADIUS authentication, guest VLAN, single-host, multiple-host and multisession modes; up to 512 ACL rules; port security |
| Energy Efficiency | 802.3az Energy Efficient Ethernet on all ports, port LED disable option |
| Management | Web interface, SNMP v1, v2c and v3, SSH v1 and v2, Cisco Business Dashboard, Cisco Business Mobile App |
| Power Input | 100 to 240V, 50 to 60 Hz, internal |
| System Power Consumption | 110V: 54.8W; 220V: 55.1W |
| Power Consumption with PoE | 110V: 482W; 220V: 468W |
| Heat Dissipation | 1,644.65 BTU/hr |
| Cooling | 1 fan, acoustic noise 35.1 dB at 25 C |
| MTBF | 265,589 hours at 25 C |
| Dimensions | 440 x 350 x 44 mm (17.3 x 13.8 x 1.7 in.) |
| Weight | 5.36 kg (11.82 lb) |
| Operating Temperature | 0 to 50 C |
| Storage Temperature | -20 to +70 C |
| Operating Humidity | 10% to 90% relative humidity, noncondensing |
| Sibling Comparison | CBS220-48FP-4X has a 740W PoE budget; CBS220-48T-4X is the 48-port model with 4 10G SFP+ uplinks and no PoE |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
