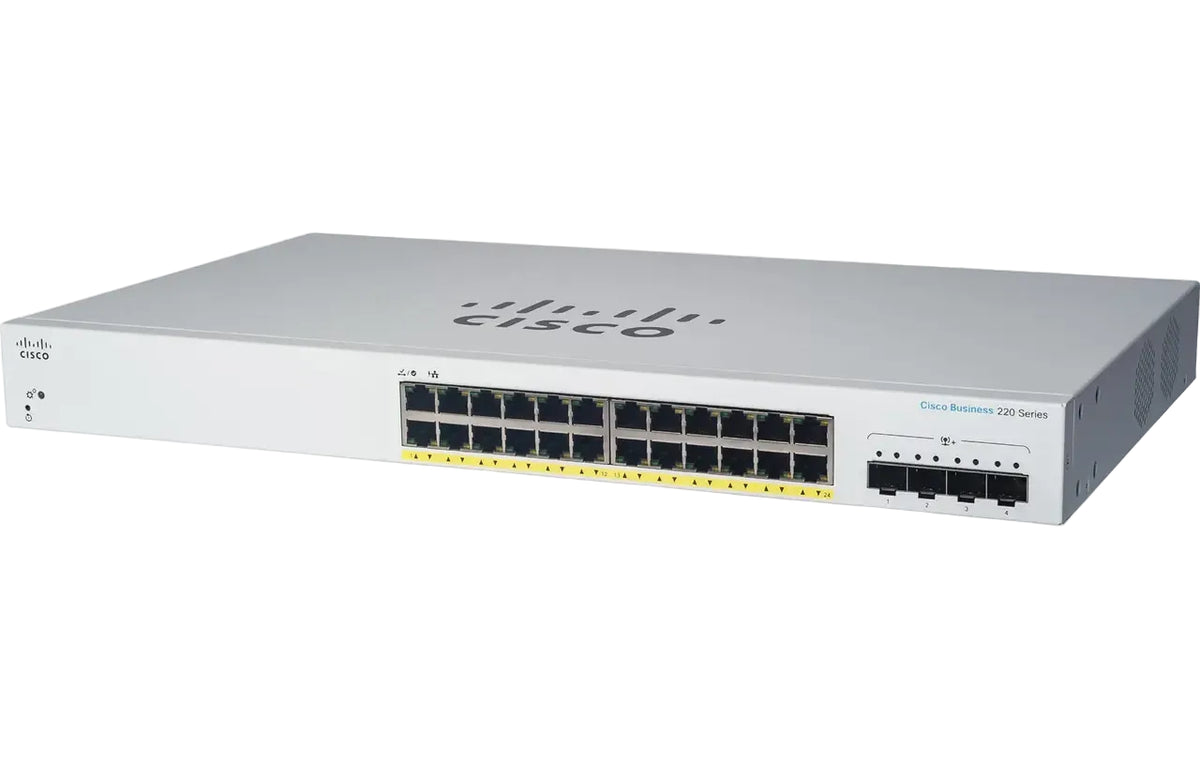

| Brand | Cisco |
| Model | CBS220-24FP-4G |
| Series | Business 220 Series |
| Description | 24 10/100/1000 PoE+ ports with 382 W power budget, 4 Gigabit SFP uplinks |
| Total Ports | 28 Gigabit Ethernet |
| RJ-45 Ports | 24 x 10/100/1000 |
| SFP Uplink Ports | 4 x Gigabit SFP |
| PoE Standards | 802.3af, 802.3at, Cisco pre-standard (legacy) PoE |
| PoE Ports | 24 |
| Maximum Power per Port | 30 W |
| PoE Power Budget | 382 W |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| Packet Buffer | 4.1 Mb |
| MAC Address Table | Up to 8,192 |
| VLANs | Up to 256 |
| Jumbo Frames | Up to 9,216 bytes |
| ACL Rules | Up to 512 |
| Multicast Groups | 256 |
| Quality of Service | 8 hardware queues per port |
| Security | IEEE 802.1X, ACLs, port security, storm control, denial-of-service attack prevention |
| IPv6 | Full support, dual-stack |
| Management | Cisco Business Dashboard, mobile app, web-based interface, SNMP, RMON |
| Discovery | LLDP, CDP |
| Energy Efficiency | Energy Efficient Ethernet (IEEE 802.3az) |
| CPU Memory | 256 MB |
| Flash Memory | 64 MB |
| Fans | 2 |
| Power Input | 100 to 240 V, 50 to 60 Hz, internal |
| Power Consumption (system) | 30.8 W at 110 V, 30.8 W at 220 V |
| Power Consumption (with PoE) | 459 W at 110 V, 445 W at 220 V |
| Heat Dissipation | 1,566.17 BTU/hr |
| Acoustic Noise | 43.2 dB at 25 C |
| MTBF | 588,411 hours at 25 C |
| Dimensions (W x D x H) | 440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in) |
| Weight | 4.10 kg (9.04 lb) |
| Operating Temperature | 0 to 50 C |
| Storage Temperature | -20 to 70 C |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
