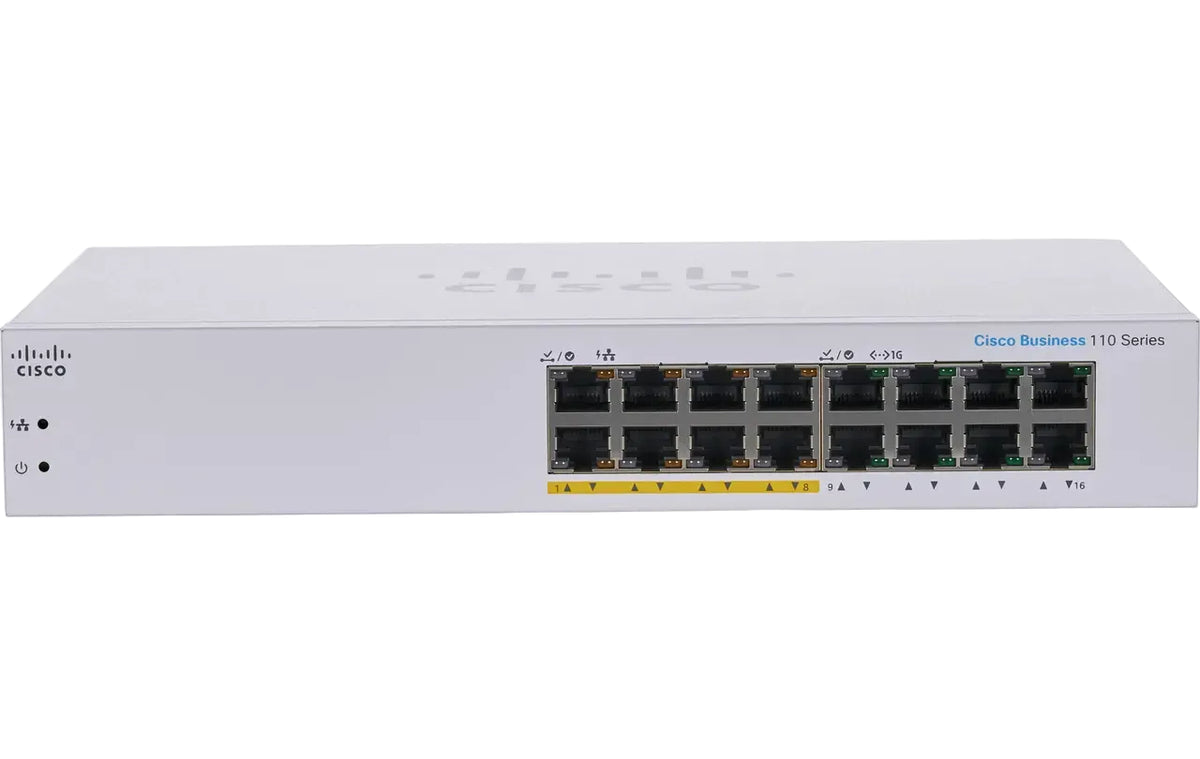

| Model | Cisco CBS110-16PP |
| Series | Business 110 Series |
| Product Type | Unmanaged switch |
| Form Factor | Rack-mountable |
| Ports | 16 x 10/100/1000 Gigabit Ethernet RJ-45 |
| Uplink Ports | None |
| PoE Ports | 8 |
| PoE Standard | IEEE 802.3af |
| PoE Budget | 64W |
| Switching Capacity | 32 Gbps |
| Forwarding Rate | 23.8 Mpps (64-byte packets) |
| Architecture | Wire-speed, nonblocking |
| Packet Buffer | 2 Mbit, shared dynamically across all ports |
| MAC Address Table | 8,000 entries |
| Jumbo Frames | 9,216 bytes |
| QoS | 802.1p priority based, 4 hardware queues, priority queuing and weighted round-robin |
| Auto MDI/MDI-X | Supported |
| Loop Detection | Supported |
| Cable Diagnostics | Cable fault and short detection |
| Energy Efficiency | IEEE 802.3az on all copper Gigabit Ethernet ports |
| LEDs | Power, link/activity, Gigabit, PoE, Max PoE |
| Cooling | Fanless |
| Power Input | 100 to 240V, 50 to 60 Hz, internal, universal |
| System Power (Worst Case) | 11.51W at 110V, 11.8W at 220V |
| Dimensions (W x D x H) | 11 x 6.7 x 1.73 in (279 x 170 x 44 mm) |
| Weight | 3.46 lb (1.57 kg) |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Operating Humidity | 10 to 90% relative, noncondensing |
| Storage Humidity | 5 to 90% relative, noncondensing |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
