NEW CISCO C9500-40X-2Q-A CATALYST 9500 SWITCH

Roll over image to zoom in Click on image to zoom

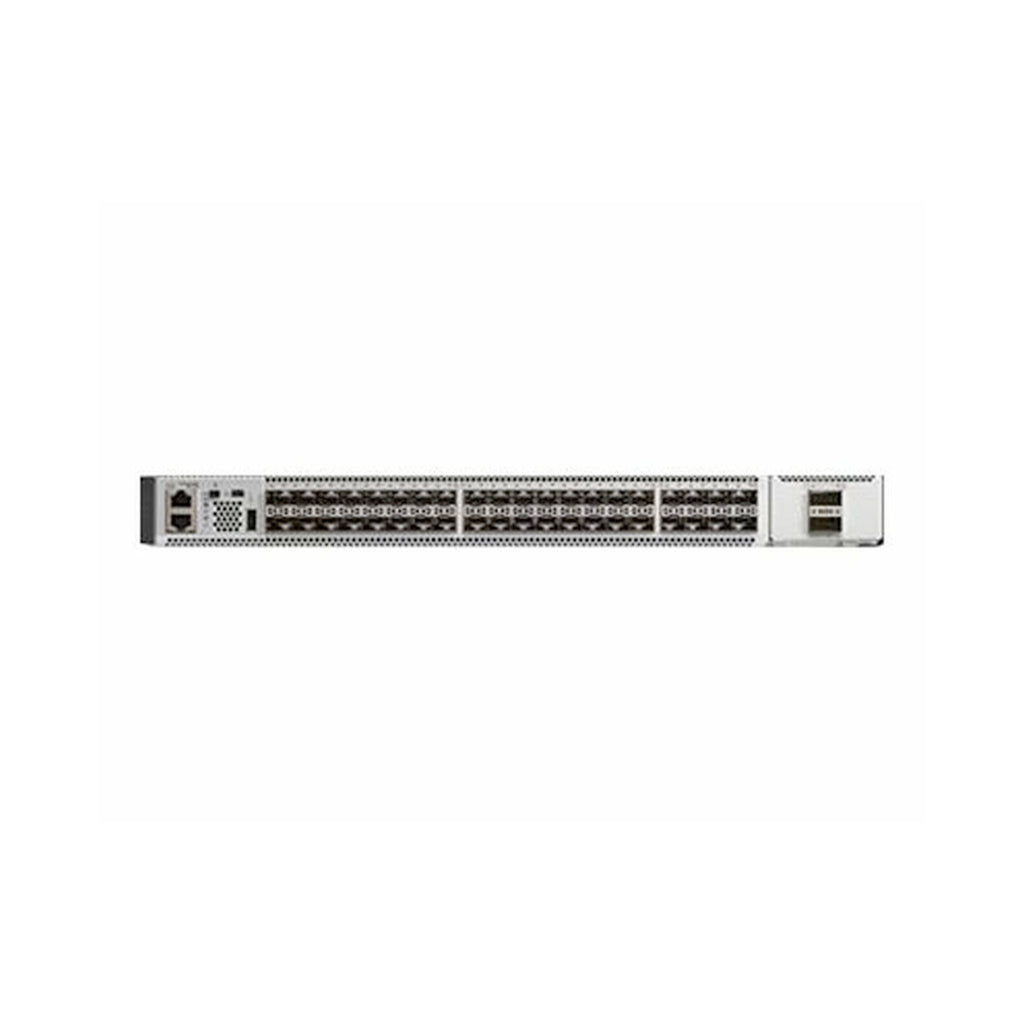

Cisco C9500-40X-2Q-A Catalyst 9500 40x10G SFP+ 2x40G QSFP+ UADP 960Gbps Managed Switch

Condition: refurbished MPN: C9500-40X-2Q-A

Price:

$2,695.00

Stock:

In stock

Quantity:

Tech Overview

The Cisco C9500-40X-2Q-A is a managed switch from the Catalyst 9500 Series with 40 fixed 10G SFP+ ports and 2 bundled 40G QSFP+ uplinks. The Cisco C9500-40X-2Q-A delivers 960 Gbps of switching capacity and 720 Mpps of forwarding. Its bundled network module saves buyers from a separate uplink module purchase, unlike the bare C9500-40X-A, which ships without one.

View full product specifications

The Cisco C9500-40X-2Q-A is a managed switch from the Catalyst 9500 Series, built for enterprise core and aggregation layer deployments. It comes bundled with the C9500-NM-2Q network module for 2 additional 40 Gigabit Ethernet uplinks, unlike the bare C9500-40X-A, which ships without any network module installed and requires one to be purchased separately for uplink connectivity. It provides 40 fixed 1 or 10 Gigabit Ethernet SFP+ ports for flexible access or distribution connectivity, plus the bundled 2x 40 Gigabit Ethernet QSFP+ uplinks for a total of 42 ports in a single 1U chassis. Built on Cisco's UADP 2.0 XL ASIC, the switch delivers 960 Gbps of switching capacity and 720 Mpps of wire speed forwarding. Cisco StackWise Virtual technology supports a 2-switch virtual chassis with Nonstop Forwarding, Stateful Switchover, and In-Service Software Upgrade for hitless software updates. The platform scales to 64,000 MAC addresses, 64,000 indirect IPv4 routes, and 4,000 VLANs, giving it substantial headroom for growing enterprise networks. A 4-core Intel x86 CPU running at 2.4GHz, paired with 16GB of DDR4 memory and 16GB of flash storage, supports container based application hosting with optional SSD expansion. Network Advantage licensing unlocks advanced routing protocols including BGP, EIGRP, and MPLS for demanding enterprise deployments.

Manufacturer	Cisco
Product Line	Catalyst 9500 Series
Product Type	Managed Switch
Fixed Ports	40x 1/10G SFP+
Bundled Uplinks	2x 40G QSFP+ (via C9500-NM-2Q Module)
Total Ports	42
ASIC	UADP 2.0 XL
Switching Capacity	960 Gbps
Forwarding Rate	720 Mpps
MAC Address Table	64,000
Max VLANs	4,000
Max SVIs	4,000
CPU / Memory / Storage	4-Core x86 2.4GHz, 16GB DDR4, 16GB Flash
High Availability	StackWise Virtual, NSF/SSO, ISSU
License	Network Advantage
Form Factor	1U Rack Mountable
