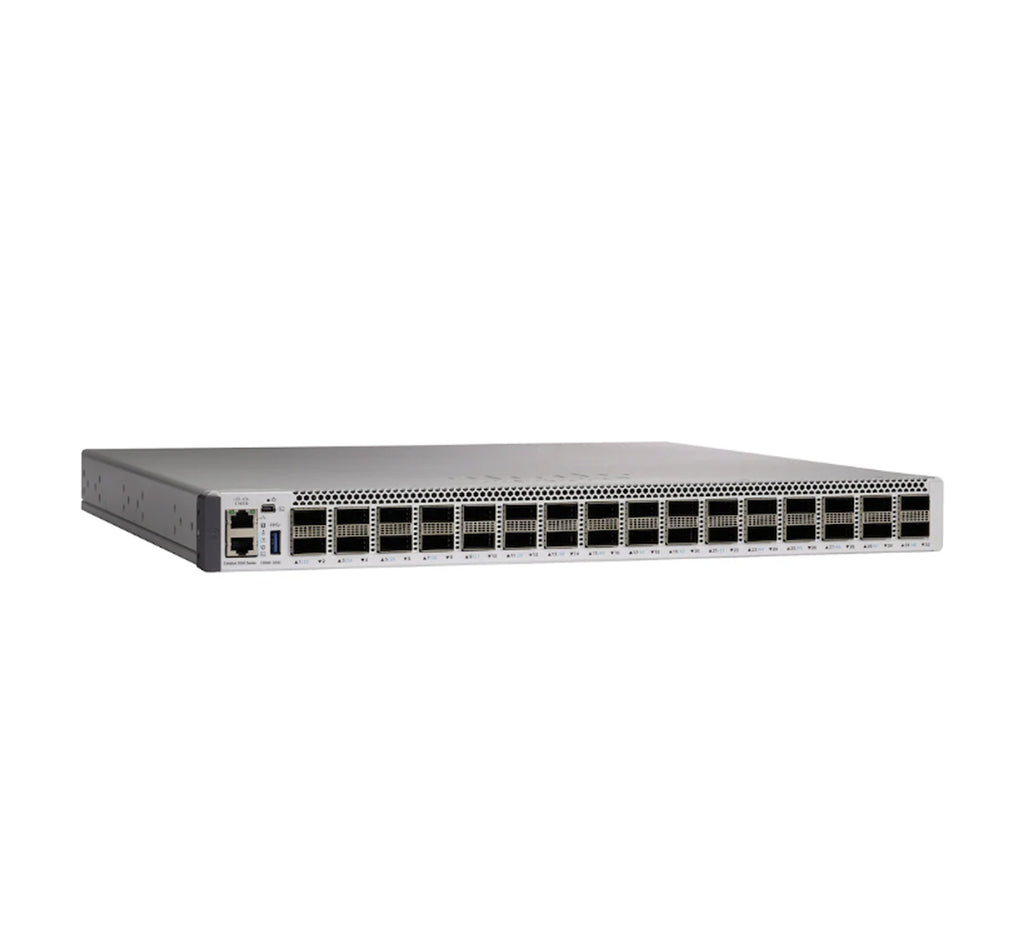

Cisco C9500-32QC-E Catalyst 9500 32x 40GB QSFP NW Essentials Switch - New

Roll over image to zoom in Click on image to zoom

Cisco C9500-32QC-E

The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching Layer 2 and Layer 3 VPNs, Multicast VPN , and Network Address Translation ); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding -aware Locator/ID Separation Protocol ); and network system virtualization with Cisco StackWise virtual technology that are critical for their placement in the campus core. The Cisco Catalyst 9500 Series also supports foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

C9500-32QC-E Specification
Performance specifications
Switching capacity	Up to 3.2 Tbps
Forwarding rate	Up to 1 Bpps
Total number of MAC addresses	Up to 82,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)	Up to 212,000 indirect direct Up to 90,000 host/ARP
Total number of IPv6 routes	Up to 212,000 indirect direct Up to 90,000 host
QoS ACL scale	Up to 16000
Security ACL scale	Up to 27000
FNF entries	Up to 98,000
DRAM	16 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	4000
Jumbo frame	9216 bytes
Power supply specifications
Power Supply Selection	C9K-PWR-650WAC-R or C9K-PWR-930WDC-R
Dimensions, physical specifications, weight, and MTBF
Dimensions (H x W x D)	1.73 x 17.5 x 21.2 in
Rack units (RU)	1 RU
Input voltage	90 to 264 VAC
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	-4° to 149°F (-20° to 65°C)
Relative humidity operating and nonoperating noncondensing	Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95%
Altitude	Operation up to 13,000 feet at 40°C
MTBF (hours)	307,200

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.

Cisco C9500-32QC-E Catalyst 9500 32x 40GB QSFP+ NW Essentials Switch - New

Overview

Cisco C9500-32QC-E

Cisco C9500-32QC-E Catalyst 9500 32x 40GB QSFP+ NW Essentials Switch - New
