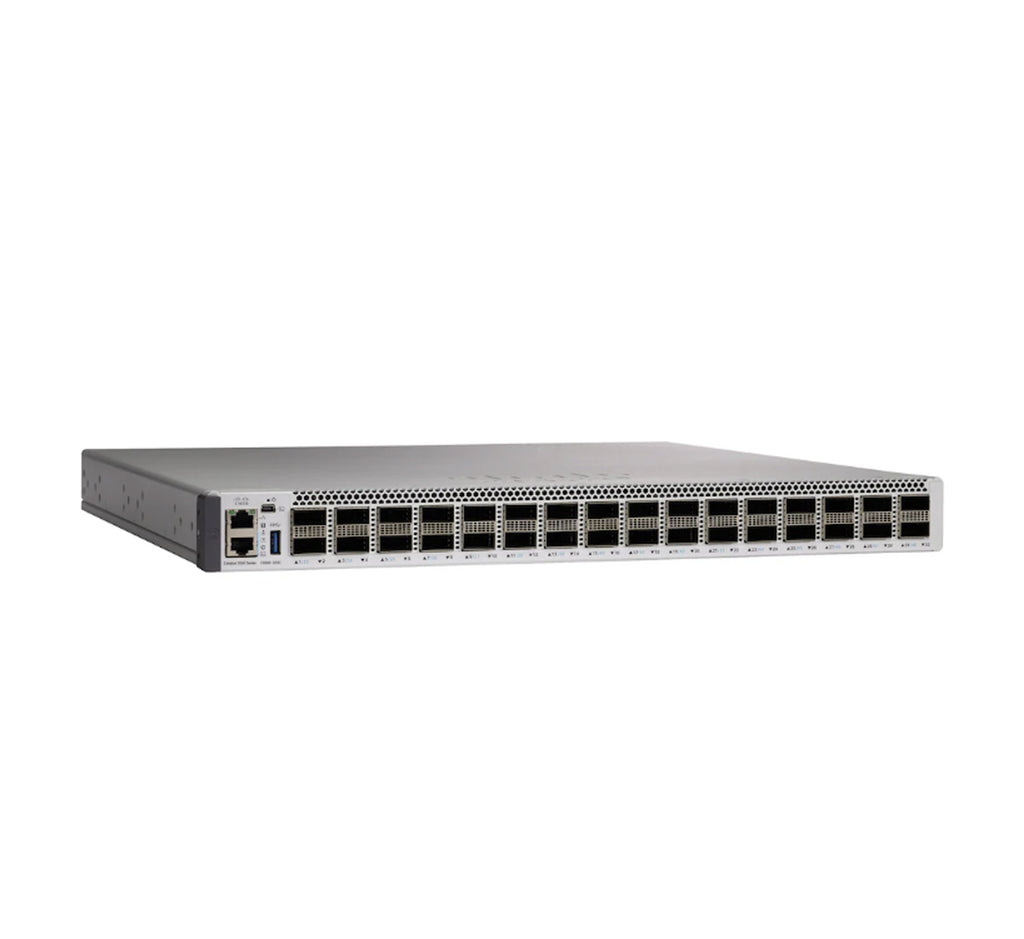

| Manufacturer | Cisco |
| Model | C9500-32QC-E |
| Series | Catalyst 9500 High Performance |
| Switch Type | Fixed Core / Aggregation Managed |
| License Level | Network Essentials |
| Ports | 32 x 40G QSFP+ (configurable as 16 x 100G QSFP28; 4x10G breakout supported per 40G port) |
| PoE | No (Data Only) |
| Switching Capacity | 3.2 Tbps |
| Forwarding Rate | 1 Bpps |
| StackWise Virtual | Hardware capable (requires Network Advantage license to activate) |
| MAC Address Table | 82,000 entries |
| VLAN Support | 4,094 VLANs |
| Spanning Tree | STP, RSTP, MSTP |
| DRAM | 16 GB |
| Flash | 16 GB |
| ASIC | Cisco UADP 3.0 |
| Operating System | Cisco IOS XE |
| Layer 3 Routing | OSPF, OSPFv3, EIGRP, BGP, MPLS L2/L3 VPN, VRF-Lite, PBR, PIM-SM, PIM-SSM, RIP, Static Routing |
| QoS | CBWFQ, LLQ, 8 queues per port |
| Authentication | 802.1X, MAB, Web Authentication |
| Security | MACsec-256, TrustSec (SGT/SGACL), CoPP, DHCP Snooping, DAI, ACLs, ETA |
| Management | CLI, SNMP v1/v2c/v3, NETCONF, RESTCONF, YANG, gRPC, Cisco DNA Center |
| Visibility | Flexible NetFlow, AVC, Integrated Wireshark |
| SDM Templates | Configurable (Core, Distribution, Access, Custom) |
| High Availability | NSF/SSO, GIR, Patching |
| Power Supply | C9K-PWR-650WAC-R 650W AC default (dual 1+1 redundant, hot-swappable, platinum-rated; options: 1600W AC, 930W DC, 1600W DC) |
| Input Voltage | 90 to 264 VAC |
| Cooling | 4 x C9K-T1-FANTRAY fan trays, front-to-back airflow (port-side intake) |
| Form Factor | Rack-mountable (1RU) |
| Operating Temperature | 23°F to 113°F (-5°C to 45°C) |
| Humidity | 5% to 90% (non-condensing) |
| Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
| Weight | 25.64 lb |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
