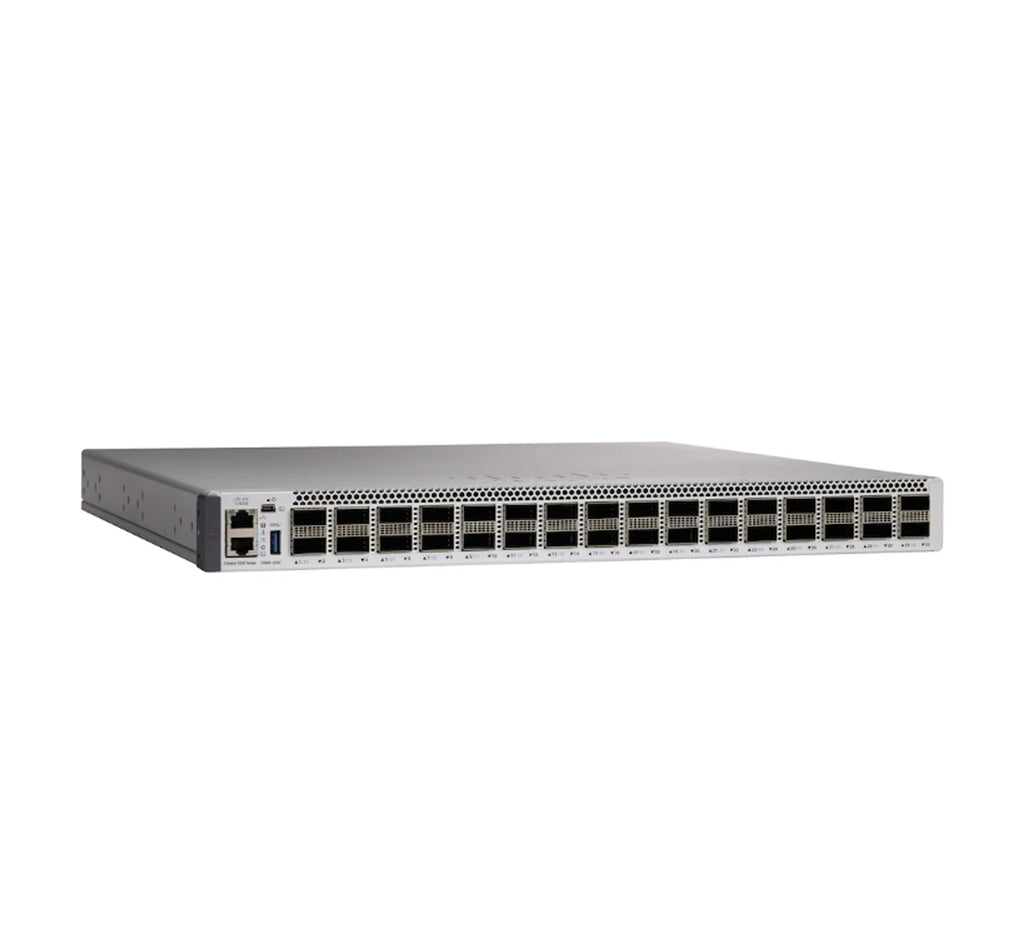

| Manufacturer | Cisco |
| Product Line | Cisco Catalyst |
| Series | Catalyst 9500 High Performance |
| Product Type | Stackable Managed Switch — Core / Aggregation |
| Ports | 32 x 40G QSFP+ or 16 x 100G QSFP28 (configurable, no PoE) |
| Port Configuration | 32x 40GE (QSFP+) or 16x 100GE (QSFP28) — pairs of ports share 100G bandwidth |
| Switching Capacity | 3.2 Tbps (nonblocking) |
| Forwarding Rate | 1 Bpps |
| ASIC | Cisco UADP 3.0 |
| CPU | 4-core Intel x86 2.4 GHz |
| DRAM | 16 GB DDR4 |
| Internal Storage | 16 GB (up to 120 GB USB 3.0 or 960 GB SATA SSD for app hosting) |
| MAC Address Table | 64,000 entries |
| VLANs | 4,000 |
| SVIs | 4,000 |
| SVI Adjacencies | 80,000 |
| Host IPv4 Routes | 90,000 direct / 212,000 indirect |
| Host IPv6 Routes | 90,000 direct / 212,000 indirect |
| Multicast Scale | 32,000 |
| Security ACL Scale | 270,000 entries |
| QoS ACL Scale | 16,000 entries |
| FNF Entries | 96,000 flows |
| StackWise Virtual | Yes — 2-switch virtual chassis, NSF/SSO, ISSU (Network Advantage required) |
| Layer 3 | OSPFv2/v3, EIGRP, BGP, IS-IS, VRF-Lite, VXLAN EVPN, MPLS, Segment Routing, PIM-SM/SSM |
| Security | MACsec 256-bit, TrustSec SGT, 802.1X, CoPP, Trustworthy Systems |
| License | Network Advantage |
| Operating System | Cisco IOS XE |
| Power Supply | 2 slots — C9K-PWR-1600WAC-R or C9K-PWR-1600WDC-R; 1+1 redundancy |
| Airflow | Front-to-back |
| Input Voltage | 90 to 264 VAC |
| MTBF | 212,820 hours |
| Form Factor | 1U rack-mountable |
| Dimensions | 1.73 x 17.50 x 18.00 in. |
| Weight | 21.85 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
