| Feature | Description |
| Standards | Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az |
| EtherChannel Technology | Gigabit EtherChannel: All 1000 Mbps ports 10 Gigabit EtherChannel: All 10Gbps ports IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports Port Aggregation Protocol (PagP): Yes Number of ports per tuple: 8 EtherChannel and IEEE 802.3ad technology across line cards: Yes |

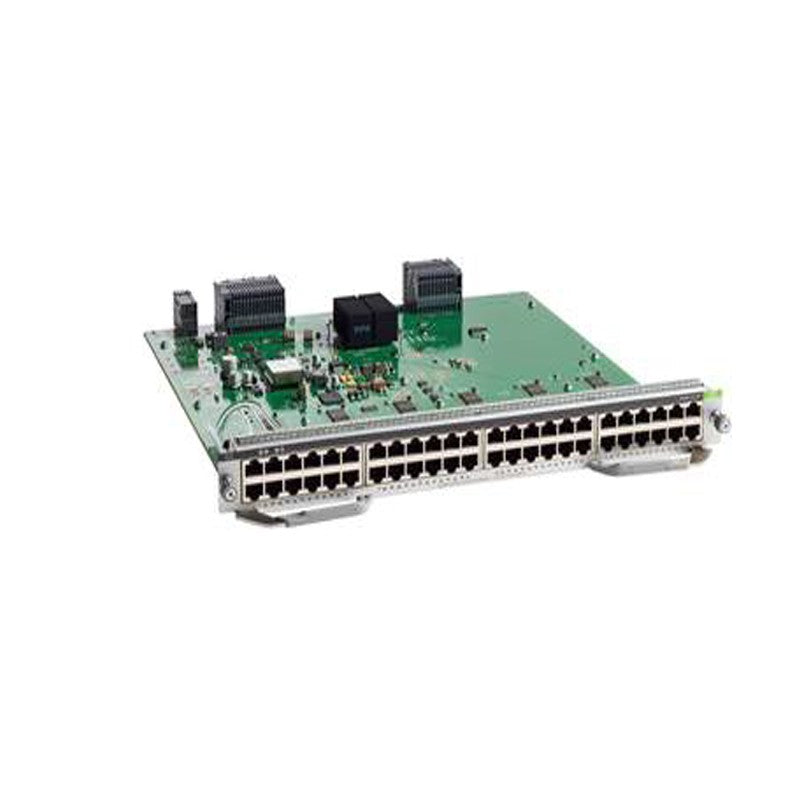

| Physical Dimensions | Occupies one slot in the Cisco Catalyst 9400 Series platform Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Environmental Conditions | Operating temperature: Normal Operating Temperature and Altitudes: ◦ 27° to 109°F (-5 to 45°C), up to 6,000 feet (1800 m) ◦ 27° to 104°F (-5 to 40°C), up to 10,000 feet (3000 m) ◦ Minimum ambient temperature for cold startup is 0°C Short-Term Exceptional Conditions: ◦ 27° to 119°F (-5 to 55°C), up to 6,000 feet (1800 m) ◦ 27° to 114°F (-5 to 50°C), up to 10,000 feet (3000 m) ◦ Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences Storage temperature: -40° to 158° F (-40° to 70°C) Relative humidity: 10 to 95%, noncondensing Operating altitude: -60 to 3000m |
| Safety Conditions | Fiber optic lasers: Class 1 laser products |
| Safety Certifications | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic Emissions Certifications | 47 CFR Part 15 CISPR22 Class A EN 300 386 V1.6.1 EN 55022 Class A EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR24 EN 300 386 EN55024 TCVN 7317 |
| ROHS Compliance | ROHS5 |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
