| Product Code | C9300X-24Y-E |

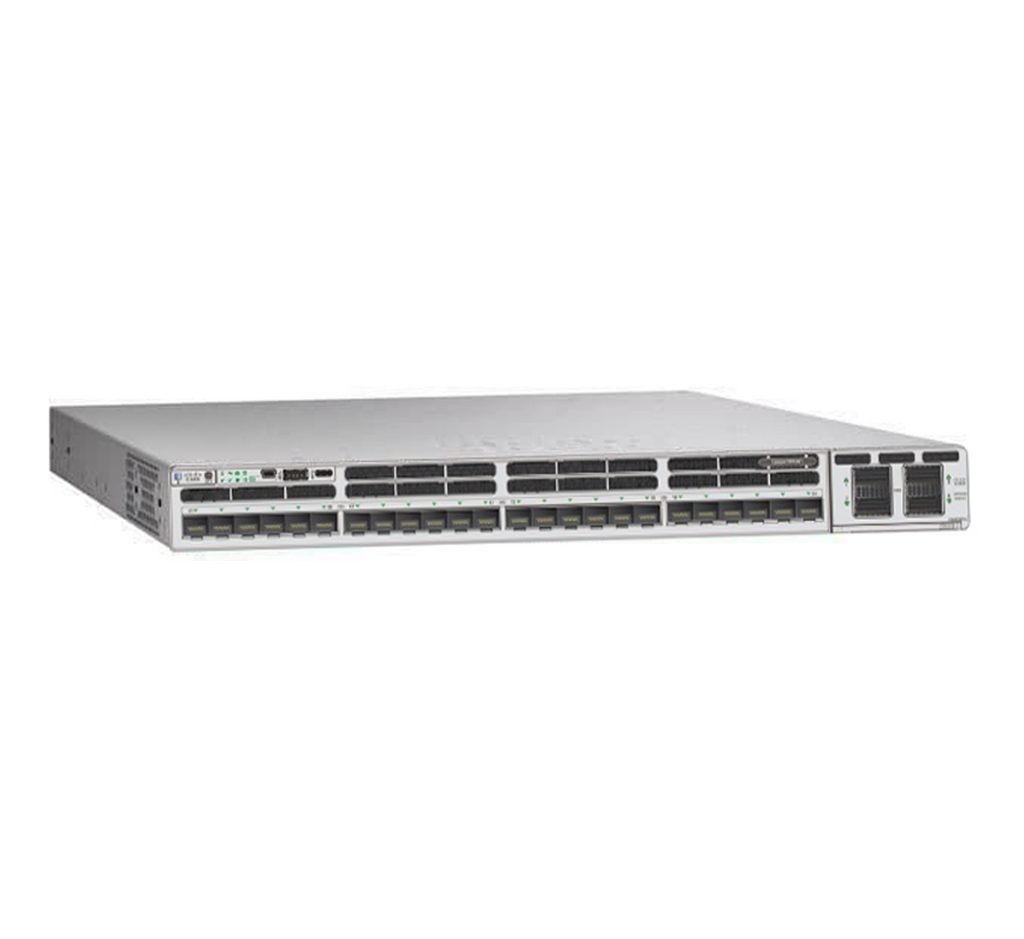

| Description | Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials |
| General | |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 24 x 1/10/25 Gigabit SFP28 |
| Performance | Switching capacity: 2000 Gbps ¦ Switching capacity with stacking: 3000 Gbps ¦ Forwarding rate: 1488 Mpps ¦ Forwarding rate with stacking: 2232 Mpps |
| Capacity | IPv4 routing table entries: 39000 ¦ Flexible NetFlow entries: 128000 ¦ Direct IPv4 routes: 24000 ¦ Indirect IPv4 routes: 15000 ¦ IPv6 routing table entries: 19500 ¦ VLAN IDs: 4094 ¦ SVIs: 1000 ¦ Multicast routing flow table: 8000 ¦ QoS scale: 4000 ¦ ACL scale: 5000 ¦ PVST instances: 300 ¦ STP Virtual Ports (PVST/MST): 13000 ¦ Routed ports: 448 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, PBR, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1/2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm | 256-bit AES |
| Features | DHCP, trunking, Syslog, full duplex, SSO, CBWFQ, WRED, STP, ACL, QoS, NSR, RSPAN, MIB, StackWise-480, StackPower, FNF, MSDP, 802.1x, 16MB buffer, FTP client, MACsec, 3 fans, CoPP, VXLAN, AVC, SSM, Wireshark, Q-in-Q, EoMPLS, H-VPLS, Private VLAN, L3VPN, ERSPAN, SGT caching, SGACL, ITSM, IPAM integration, StackWise-1T |
| Compliant Standards | IEEE 802.3, 802.3u, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad, 802.1w, 802.1x, 802.1s, 802.3at |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 24 x 1/10/25GBase-X SFP28 ¦ 1 x USB 2.0 |
| Expansion Slots | 1 (total) / 1 (free) |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 715 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | CISPR 22/24, EN 61000 series, CCC, ICES-003 A, UL 60950-1, IEC/EN 60950-1, RoHS, AS/NZS 3548 A, BSMI A, VCCI A, FCC Part 15 A, EN 300 386, TVCN 7317, CAN/CSA-C22.2 No. 60950-1 |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 17.6 in |
| Height | 1.7 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime (next business day) ¦ Technical support - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
