| Product Code | C9300X-24HX-A |

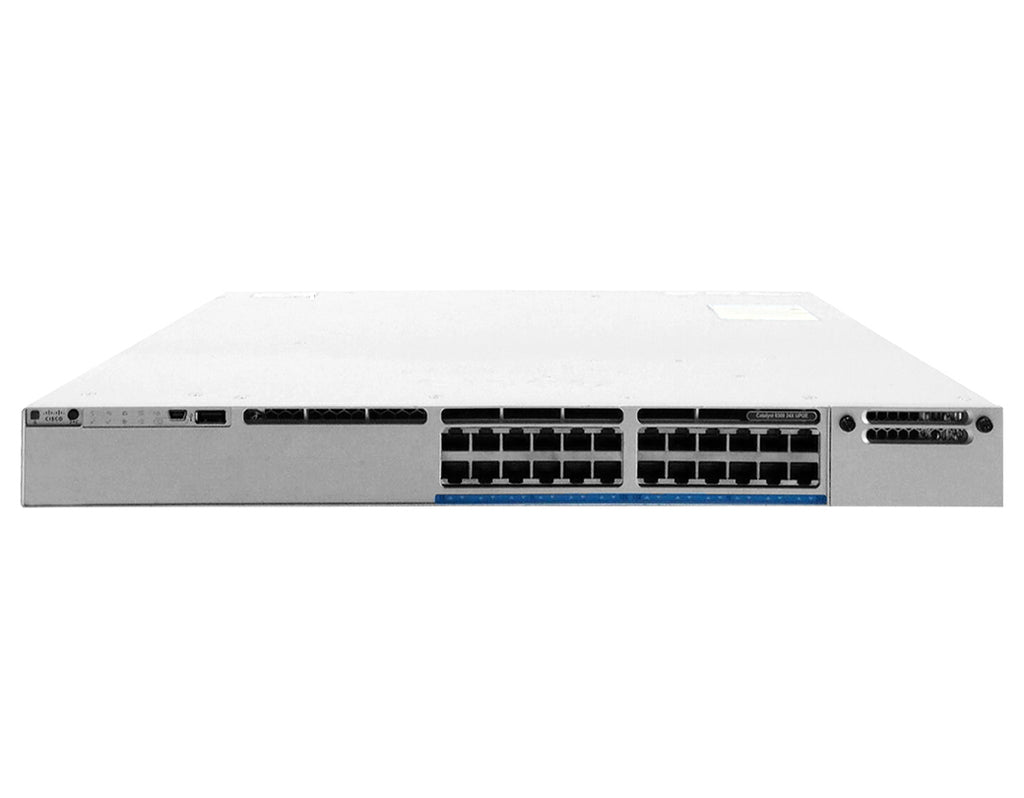

| Product Description | Catalyst 9300X 24-port 10G mGig UPOE+, Modular Uplinks, Network Advantage |
| Downlink Ports | 24 x 10G Multi-Gigabit (100M/1G/2.5G/5G/10G) UPOE+ |
| Uplink Configuration | Modular Network Module (10G/25G/40G/100G supported) |
| Switching Capacity (Standalone) | 880 Gbps |
| Switching Capacity (Stacked) | 1880 Gbps |
| Forwarding Rate | 327.38 Mpps |
| Stacking Technology | StackWise-1T (1 Tbps) |
| DRAM | 16 GB |
| Flash Memory | 16 GB |
| Default Power Supply | PWR-C1-1100WAC-P (1100W AC) |
| Available PoE Power (Single PSU) | 735W |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.57 inches (4.4 x 44.5 x 44.6 cm) |
| Weight | 13.8 lb (6.25 kg) |
| MTBF | 220,250 Hours |
| MAC Address Table Size | 32,000 entries |
| IPv4 Routing Entries | 39,000 (24,000 direct + 15,000 indirect) |
| IPv6 Routing Entries | 19,500 |
| Software License | Network Advantage |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
