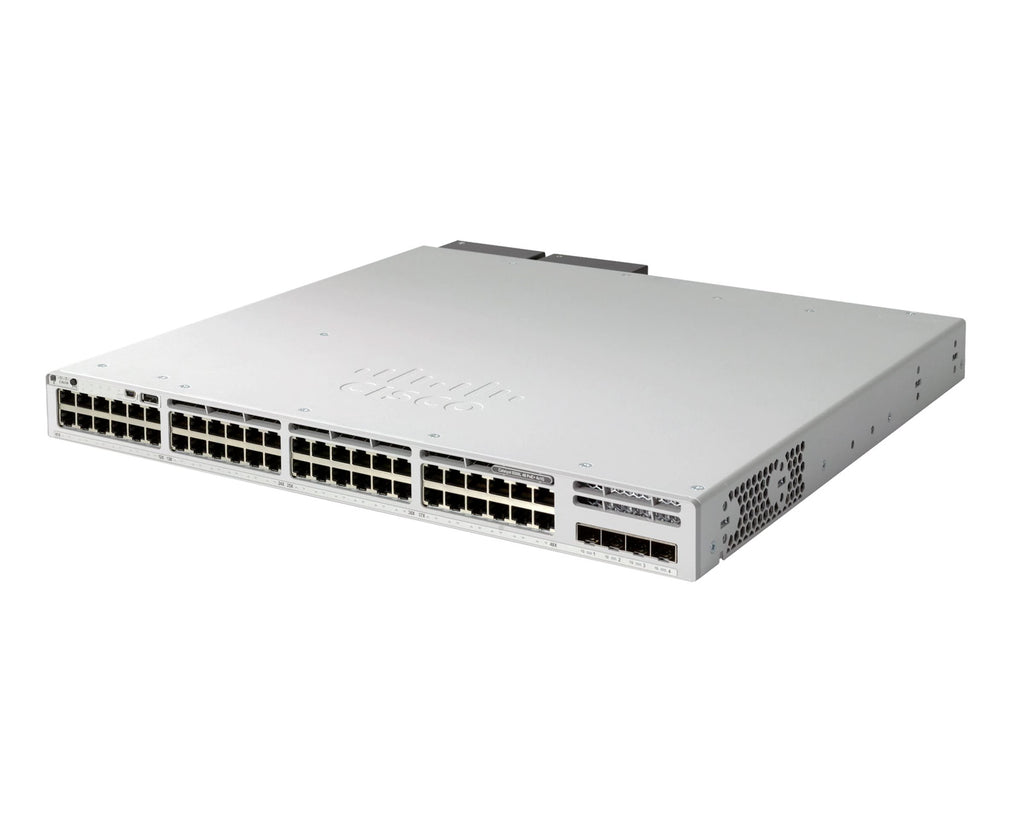

Cisco C9300L-48PF-4X-A Catalyst 9300 48-port 1G 4x10G/1G SFP

Roll over image to zoom in Click on image to zoom

C9300L-48PF-4X-A

The Cisco C9300L-48PF-4X-A switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Device Type	Switch - 48 ports - L3 - managed - stackable
Bundled Services	1 year Network Essentials
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE ) 4 x 10 Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE
PoE Budget	890 W
Performance	Switching capacity with stacking: 496 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps ¦ Forwarding rate with stacking: 369.05 Mpps
Capacity	IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ Routed ports: 416 ¦ VLANs supported: 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MPLS, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm	128-bit AES, 256-bit AES
Features	Non-Stop Forwarding (NSF), Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST ), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Location ID Separation Protocol (LISP), Blue Beacon LED, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Protocol Independent Multicast (PIM), First Hop Security (FHS), Audio Video Bridging (AVB), PVLAN support, Graceful Insertion and Removal (GIR) mode, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6
RAM	8 GB
Flash Memory	16 GB
Status Indicators	Status
Interfaces	48 x 1000Base-T RJ-45 PoE ¦ 4 x 10GBase-X SFP uplink ¦ 1 x management (LAN) RJ-45 ¦ 1 x console ¦ 1 x USB 2.0
Power Device	Internal power supply - hot-plug
Installed Qty	1
Max Supported Qty	2
Power Redundancy	Optional
Power Provided	1100 Watt
Voltage Required	AC 120/230 V (50 - 60 Hz)
MTBF	298,880 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 25, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, IEC 61000-6-1, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, QCVN, V-2/2015.04, V-3/2015.04
Width	17.5 in
Depth	1.7 in
Height	19.2 in
Weight	15.5 lbs
Service & Support	Limited warranty - advance parts replacement - lifetime - response time: next business day
Min Operating Temperature	23 °F
Max Operating Temperature	113 °F
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
Humidity Range Storage	5 - 90% (non-condensing)

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
