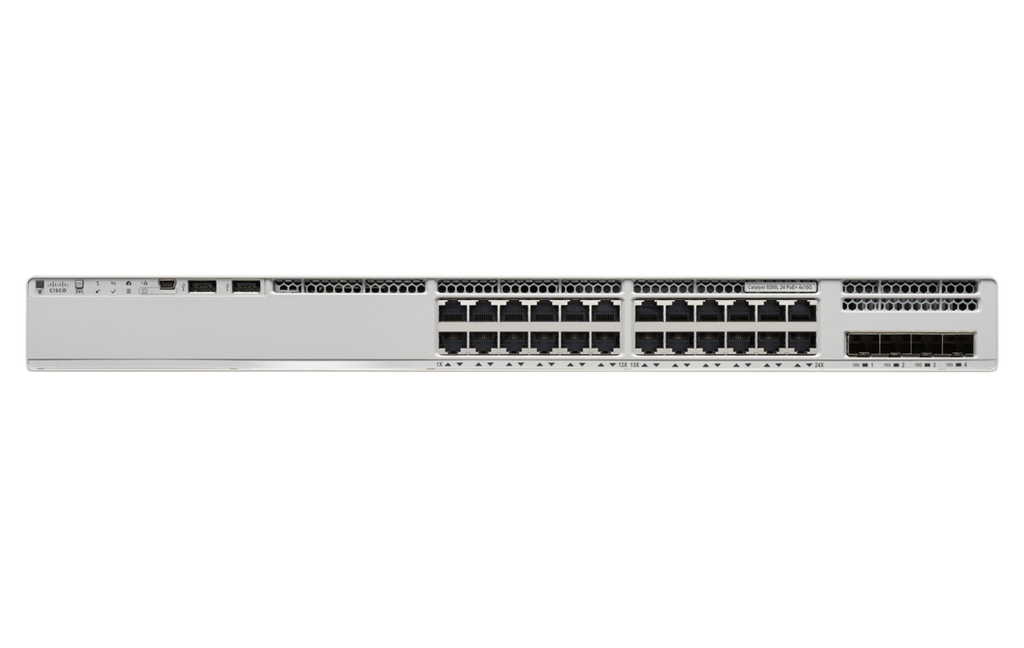

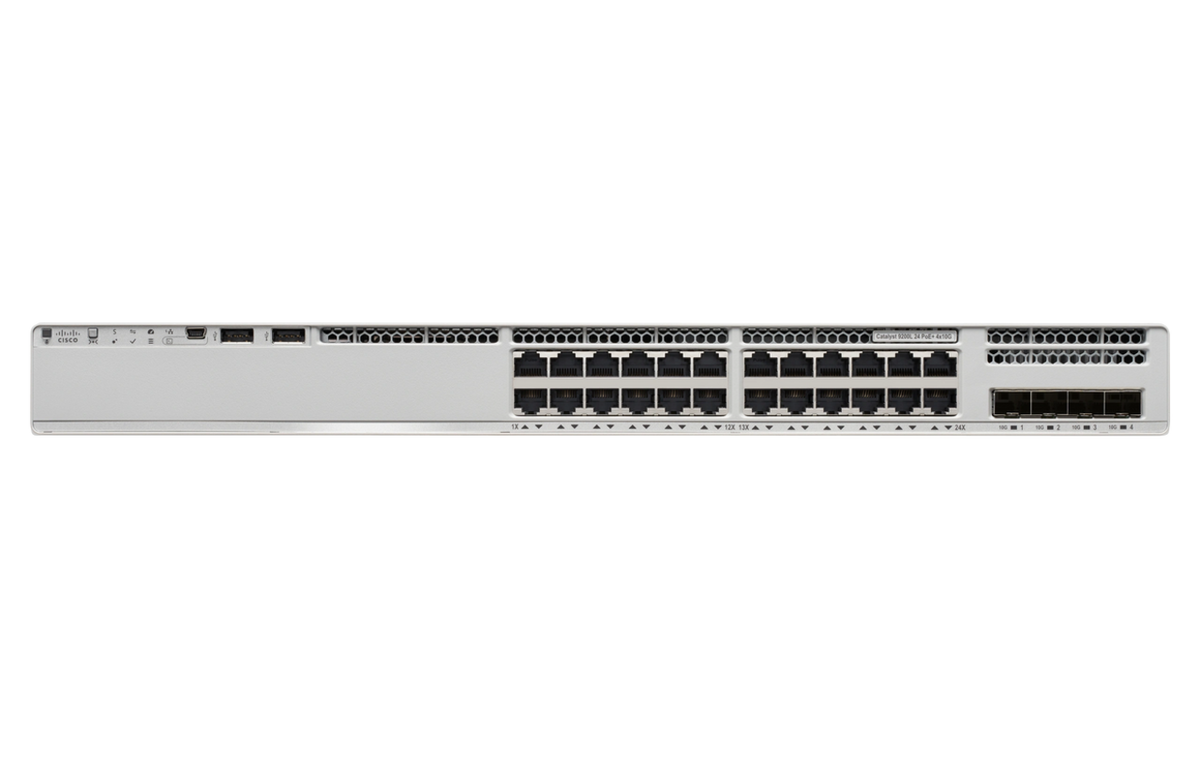

| Brand | Cisco |
| Model | C9300L-24P-4G-A |
| Series | Cisco Catalyst 9300 Series Switches |
| Product Type | Fixed-uplink stackable Ethernet switch |
| Software Tier | Network Advantage (-A suffix) |
| Downlink Ports | 24 x 10/100/1000 RJ-45 PoE+ |
| PoE Standards | IEEE 802.3af (up to 15.4 W per port), IEEE 802.3at (up to 30 W per port) |
| Uplink Ports | 4 x 1 GE SFP, fixed |
| Network Module Slots | None (fixed uplinks) |
| Management Ports | 1 x RJ-45 10/100/1000 Ethernet, 1 x RJ-45 console, 1 x USB mini-Type B console |
| USB Ports | USB Type A (storage, front); USB 3.0 SSD port (rear, 120 GB or 240 GB modules) |
| Switching Capacity | 56 Gbps |
| Switching Capacity with Stacking | 376 Gbps |
| Forwarding Rate | 41.66 Mpps |
| Forwarding Rate with Stacking | 279.76 Mpps |
| Stacking | StackWise-320, 320 Gbps, up to 8 members |
| Stackable With | Catalyst 9300L and 9300LM only |
| Stack Kits | C9300L-STACK-KIT or C9300L-STACK-KIT2 (two adapters and one cable); STACK-T3 cables in 50 cm, 1 m and 3 m |
| Routed Ports per Stack | 416 |
| Power Supply Slots | 2 |
| Primary Power Supply | PWR-C1-715WAC-P (715 W AC) |
| Available PoE Budget | 505 W with PWR-C1-715WAC-P; up to 720 W with a secondary power supply (limited by port count and rating) |
| Secondary Power Supply Options | 350 W: PWR-C1-350WAC-P; 715 W: PWR-C1-715WAC-P or PWR-C1-715WDC; 1100 W: PWR-C1-1100WAC-P |
| Power Supplies for PoE+ on All Ports | 1 x PWR-C1-1100WAC-P, or 2 x PWR-C1-715WAC-P or PWR-C1-715WDC |
| PWR-C1-715WAC-P Input | 100 to 240 VAC (autoranging), 47 to 63 Hz, 798 W total input at full output |
| Fan Modules | 3 internal hot-swappable 12 V fan modules (FAN-T2=), N+1 redundancy |
| ASIC | Cisco UADP 2.0 |
| CPU Memory | 8 GB DRAM |
| Flash | 16 GB |
| MAC Addresses | 32,000 |
| IPv4 Routes (ARP plus Learned) | 32,000 (24,000 direct, 8,000 indirect) |
| IPv6 Routing Entries | 16,000 |
| Multicast Routes | 8,000 |
| ACL Scale Entries | 5,120 |
| QoS Scale Entries | 5,120 |
| VLAN IDs | 4,094 |
| PVST Instances | 300 |
| STP Virtual Ports (PVST and MST) | 13,000 each |
| Switched Virtual Interfaces | 1,000 |
| Jumbo Frames | 9,198 bytes |
| Packet Buffer | 16 MB |
| Flexible NetFlow Entries | 64,000 flows |
| Layer 3 Routing | Static, RIPv1/v2, RIPng, OSPF; PIM sparse mode and SSM multicast |
| Resiliency | NSF/SSO (sub-50 ms failover), cross-stack EtherChannel, Flexlink+, MSTP, PVRST+, err-disable auto-recovery |
| Security | MACsec (AES-128, AES-256), image signing, secure boot, Trust Anchor module, SUDI, Encrypted Traffic Analytics |
| Quality of Service | 802.1p CoS and DSCP classification, SRR scheduling, 8 egress queues per port, cross-stack marking |
| PoE Features | Perpetual PoE, Fast PoE |
| Programmability | NETCONF, RESTCONF, gNMI, YANG, on-box Python, streaming telemetry, zero-touch provisioning |
| Application Hosting | Yes |
| Minimum Software Release | Cisco IOS XE 16.11.1b |
| LEDs | System, Active, STACK, PoE, port LEDs with modes (STAT, SPEED, DUPLX, ACTV, STACK, PoE+), Beacon, fan LEDs |
| Dimensions (H x W x D) | 1.73 x 17.5 x 19.2 in (4.4 x 44.5 x 48.8 cm) |
| Weight | 14.99 lb (6.81 kg) |
| Operating Temperature | 23 to 113 F (-5 to 45 C) |
| Storage Temperature | -40 to 158 F (-40 to 70 C) |
| Relative Humidity | 5% to 90% noncondensing |
| Operating Altitude | Up to 10,000 ft (3000 m) |
| Storage Altitude | Up to 15,000 ft (4500 m) |
| Related Models | C9300L-24T-4G (24 data ports, no PoE), C9300L-24P-4X (24 PoE+ ports, 4 x 10 GE SFP+ uplinks), C9300L-48P-4G (48 PoE+ ports, 4 x 1 GE SFP uplinks) |
| Other Tier Variant | C9300L-24P-4G-E (same configuration, Network Essentials) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
