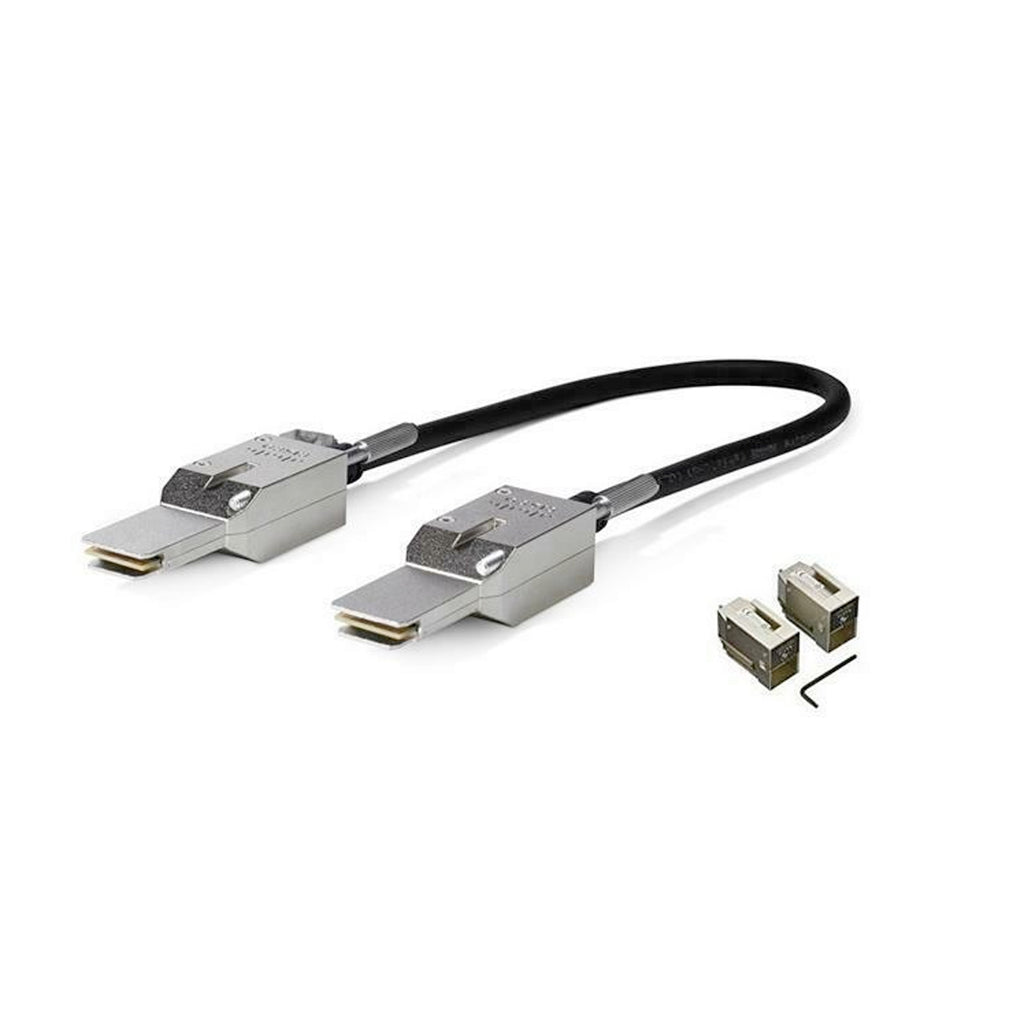

The Cisco C9200L-STACK-KIT is a StackWise-80 stacking kit for fixed Catalyst 9200L Series switches. Unlike the C9200-STACK-KIT, which delivers 160 Gbps of StackWise-160 stacking for modular Catalyst 9200 models, this kit supports C9200L models only at 80 Gbps. The kit consists of two data stack adapters and one data stack cable. The default cable is the 0.5 m STACK-T4-50CM, and 1 m STACK-T4-1M and 3 m cables are available separately. Up to 8 switches join into a single virtual switch with one management plane and one control plane. A full stack of 8 switches presents up to 384 access ports. Stacking is limited to other C9200L models, and mixing with modular C9200 models or Catalyst 2960-X and 2960-XR switches is not supported. Stacking is not available on C9200CX switches.
| Model | Cisco C9200L-STACK-KIT |
| Series | Catalyst 9200L |
| Product Type | Stacking kit |
| Stacking Technology | StackWise-80 |
| Stacking Bandwidth | 80 Gbps |
| Kit Contents | 2 x data stack adapters, 1 x data stack cable |
| Default Cable | STACK-T4-50CM, 50 cm (0.5 m) |
| Optional Cables | STACK-T4-1M (1 m), STACK T4-3M (3 m), sold separately |
| Maximum Stack Members | 8 |
| Maximum Access Ports Per Stack | 384 |
| Stack Management | Single management plane and control plane |
| Compatible Switches | Fixed Catalyst 9200L models |
| Not Supported | Modular C9200 models, C9200CX models, Catalyst 2960-X and 2960-XR (mixed stacking) |
| Related Kit | C9200-STACK-KIT (StackWise-160, 160 Gbps, modular C9200 models only) |
