NEW C9200L-48P-4G-E CATALYST 9200L48-PORT POE+ 4X1G UPLINK SWITCH NETWORK ESSENT

Roll over image to zoom in Click on image to zoom

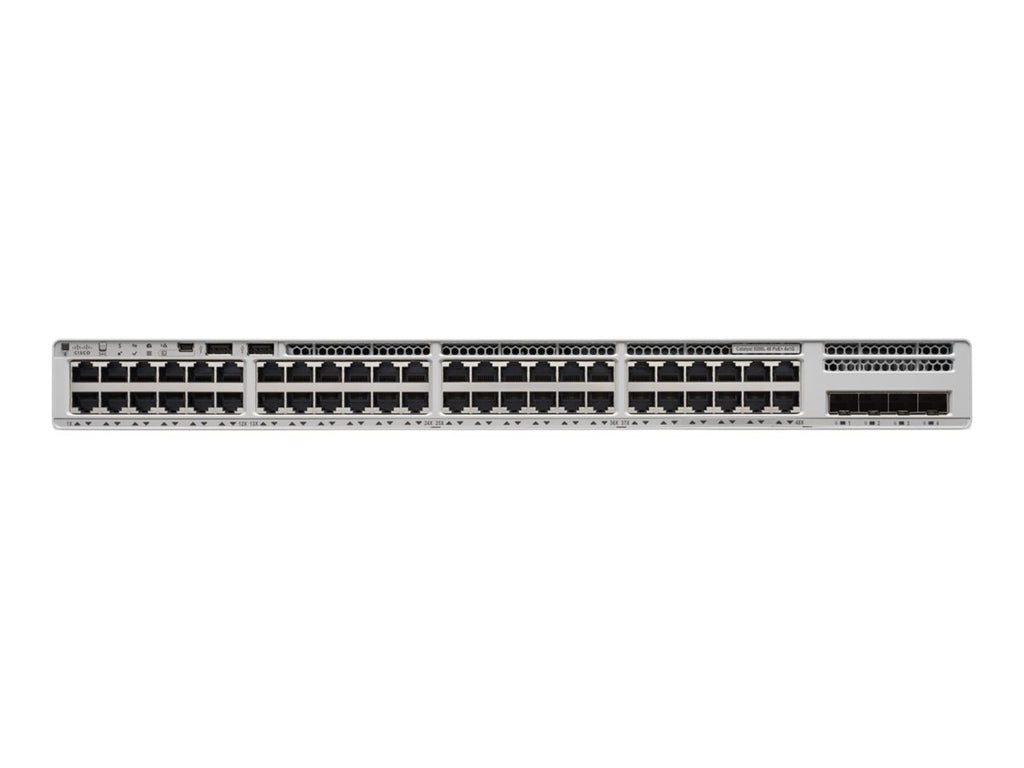

Cisco C9200L-48P-4G-E Catalyst 9200L 48-Port Gigabit PoE+ 4x 1G SFP Switch Network Essentials - New

Condition: new MPN: C9200L-48P-4G-E

Price:

$2,495.00

Stock:

In stock

Quantity:

Tech Overview

The Cisco C9200L-48P-4G-E Catalyst 9200L is a fixed-uplink access switch with 48x GbE PoE+ ports (740W budget with dual PSU) and 4x fixed 1G SFP uplinks, delivering 104 Gbps switching capacity and 77.38 Mpps forwarding. Ideal cost-effective foundation for small and branch networks requiring standard Gigabit fiber uplinks. Network Essentials license covers core switching fundamentals and management automation. StackWise-80 stacking bandwidth supports up to 8 switches with C9200L-STACK-KIT (ordered separately). Field-replaceable power supplies; fixed redundant fans. Powered by the UADP 2.0 Mini ASIC. For 10G uplinks see C9200L-48P-4X-E; for Network Advantage see C9200L-48P-4G-A.Cisco Catalyst 9200L - Network Essentials - switch - L3 - 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - rack-mountable - PoE+ (1440 W)

View full product specifications

The Cisco C9200L-48P-4G-E is a 1RU fixed-uplink Layer 2/3 access switch from the Catalyst 9200L Series, designed for branch office and workgroup deployments requiring high-density PoE+ access connectivity. The switch provides 48 10/100/1000 PoE+ RJ-45 ports and 4 fixed 1G SFP uplink ports. PoE budget is 740W with a single power supply, expandable to 1440W with an optional second power supply. Switching capacity is 104 Gbps with a forwarding rate of 77.38 Mpps. The MAC address table supports 16,000 entries with 2 GB DRAM and 4 GB flash. The unit ships with the Network Essentials license providing Layer 2 and basic Layer 3 features including static routing, RIP, and OSPF for routed access. StackWise-80 stacking supports up to 8 units with 80 Gbps stack bandwidth. MACsec-128 hardware encryption, Secure Boot, 802.1X, ACLs, and DHCP snooping provide enterprise-grade security. The switch includes one 600W AC power supply with a second slot for optional redundancy.

Model	Cisco C9200L-48P-4G-E
Series	Catalyst 9200L Series
Software	Network Essentials
Downlink ports	48 x 10/100/1000 PoE+
Uplink interfaces	4 x 1 Gigabit SFP
PoE standard	IEEE 802.3at PoE+
PoE budget	740 W
Stacking	StackWise-80 80 Gbps
Switching capacity	104 Gbps
Forwarding rate	154.76 Mpps
Power supply	Fixed internal AC optional secondary
Form factor	1RU rack mount
Dimensions	1.73 x 17.5 x 11.3 in
Weight	18.08 lbs
