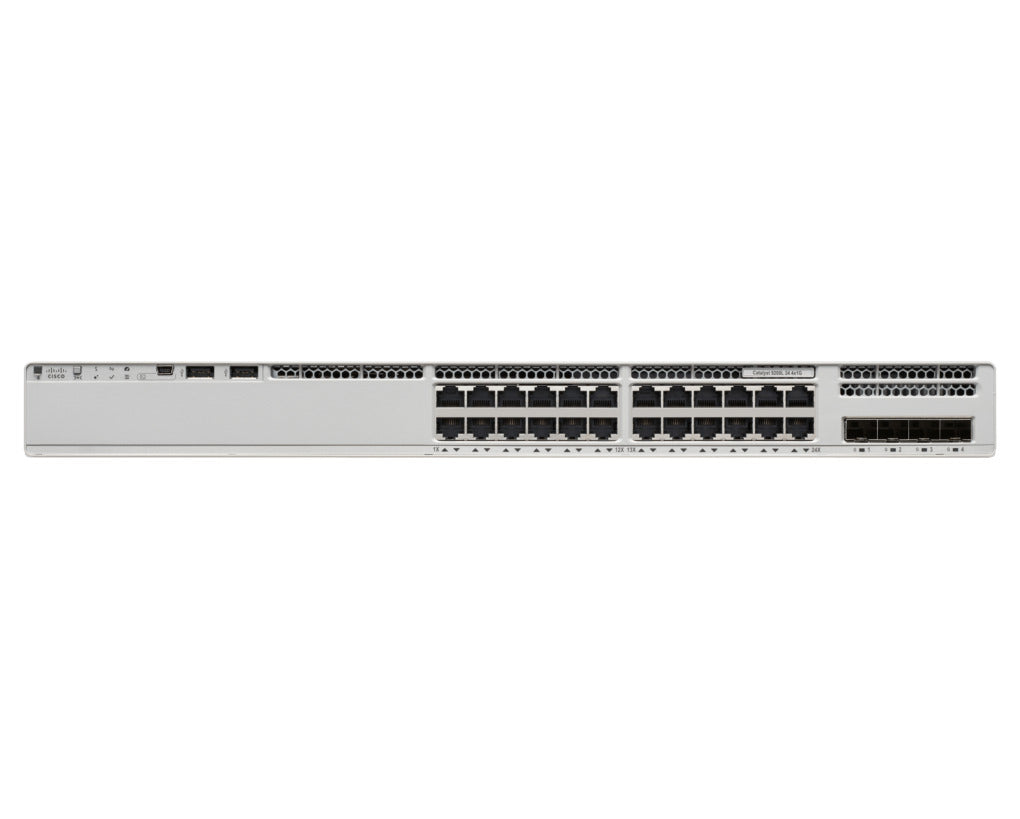

| C9200-24T-A Specifications | |
|---|---|
| Performance specifications | |
| Virtual Networks | 4 for C9200-24T, C9200-24P, C9200-48T, C9200-48P, C9200- 24PXG, C9200-48PXG, C9200-48PL 32 for C9200-24PB, C9200-48PB |
| Stacking bandwidth | 160 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries | 4,000 |
| IPv6 routing entries | 2,000 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,600 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models, 12MB buffers for 24 or 48 port multigigabit models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 4 GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| PVST Instances | 128 |
| STP Virtual Ports(Port *VLANs) for PVST | 13,000 |
| STP Virtual Ports(Port *VLANs) for MST | 13,000 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | Up to 48 Gbps on 24- port and 48-port Gigabit Ethernet model |
| IP SGT binding scale | 8K |
| Number of IPv4 bindings | 8K |
| Number of SGT/DGT policies | 2K |
| Number of SXP Sessions | 200 |
| Bandwidth specifications | |
| Switching capacity | 128 Gbps |
| Switch capacity with Stacking | 288 Gbps |
| Forwarding rate | 95.23 Mpps |
| Forwarding rate with Stacking | 214 Mpps |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 Inches |
| Weight | 11.02 Pounds |
| Mean time between failures (hours) | 587,800 |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
