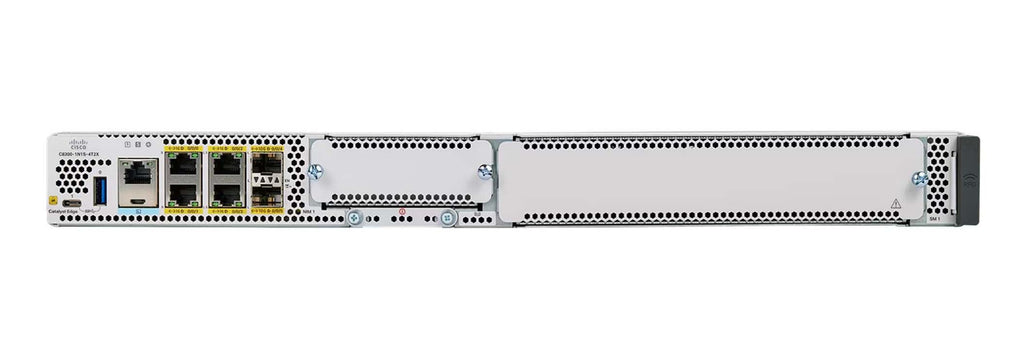

| Model | C8300-1N1S-4T2X |
| Series | Cisco Catalyst 8300 |
| Type | Edge Router |
| WAN Ports | 4 x RJ-45 1G |
| SFP+ Ports | 2 x 10G SFP+ |
| NIM Slots | 1 |
| SM Slots | 1 |
| USB Ports | 1 x USB 3.0, 1 x USB 2.0 |
| Management Port | 1 x RJ-45 10/100/1000 Mbps |
| Console Port | 1 x RJ-45, 1 x Mini USB |
| System Throughput | Up to 25 Gbps |
| IPsec VPN Throughput | Up to 10 Gbps |
| DRAM | 8 GB (expandable to 16 GB) |
| Flash | 16 GB |
| Routing Protocols | BGP, OSPF, OSPFv3, EIGRP, IS-IS, RIP, PIM, VRRP, HSRP |
| WAN Technologies | SD-WAN, MPLS, PPPoE, GRE, DMVPN, FlexVPN |
| VPN | IPsec, DMVPN, FlexVPN, GET VPN |
| QoS | H-QoS, DSCP, CBWFQ, LLQ, traffic shaping and policing |
| Security | ACL, Zone-Based Firewall, uRPF, CoPP, SSH, SNMPv3 |
| Management | CLI, SNMP v1/v2c/v3, NETCONF, RESTCONF, gNMI, streaming telemetry |
| Power Supply | Internal, 100–240V AC, 50–60 Hz |
| Mounting | 1U Rack-mountable |
| Dimensions (W x D x H) | 17.30 x 17.60 x 1.75 in |
| Weight | 9.70 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
