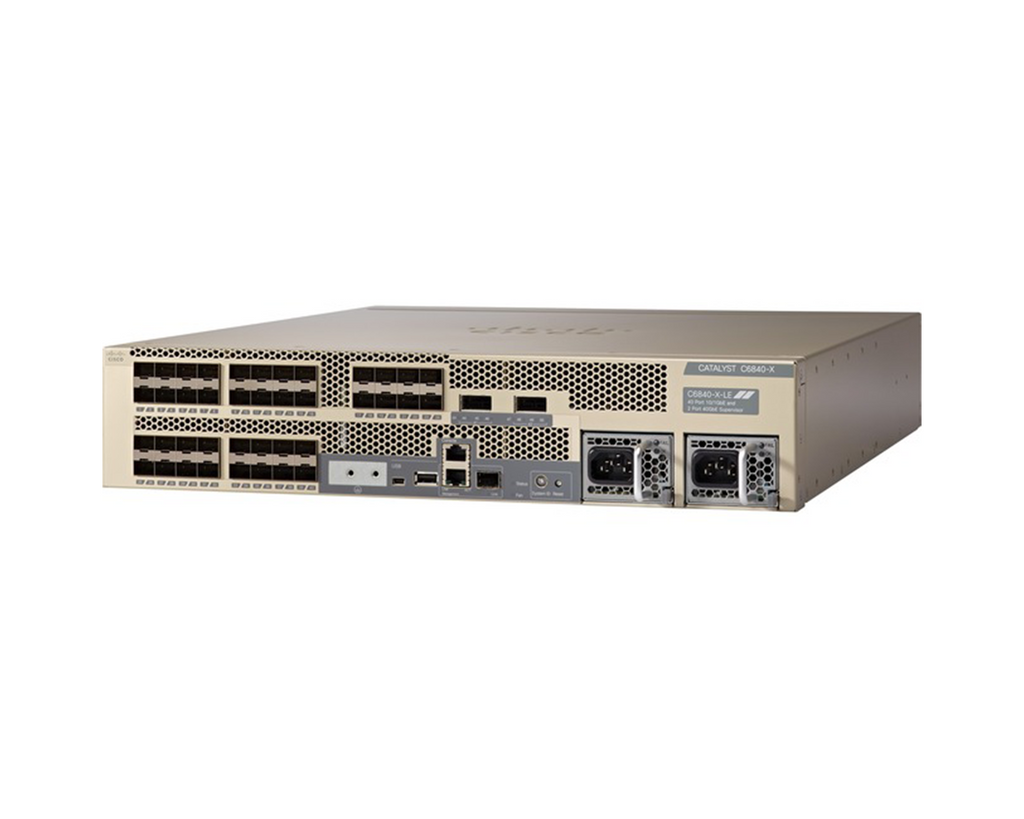

| Device Type | Switch - 40 ports - L3 - managed |
| Enclosure Type | Desktop rack-mountable 2U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 40 x 1 Gigabit SFP/ 10 Gigabit SFP 2 x 40 Gigabit QSFP (breakout compatible) |
| Performance | Forwarding performance: up to 180 Mpps | Switching capacity (full duplex): up to 240 Gbps | IPv4 routing: up to 180 Mpps | IPv6 routing: up to 90 Mpps | Layer 2 bridging: up to 180 Mpps |
| Capacity | IPv4 routes: 256000 | IPv6 routes: 128000 | NetFlow entries: 1500000 | IPv4 routes (Multicast): 128000 | IPv6 routes (Multicast): 64000 | Virtual interfaces (VLANs): 4094 | Domains: 16000 | ACL entries: 64000 | Logical interfaces: 128000 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2 IGMP PIM-SM PIM-DM IGMPv3 GRE MSDP MLDv2 MLD MPLS PIM-SMv6 PIM-DMv6 |
| Remote Management Protocol | RMON SMON |
| Features | NAT support VLAN support traffic shaping DoS attack prevention IPv6 support Class-Based Weighted Fair Queuing (CBWFQ) Weighted Random Early Detection (WRED) PIM snooping Spanning Tree Protocol (STP) support tunneling Access Control List (ACL) support Quality of Service (QoS) Virtual Route Forwarding-Lite (VRF-Lite) reset button Unicast Reverse Path Forwarding (URPF) IPv4 support Deficit Weighted Round Robin (DWRR) Shaped Round Robin (SRR) Port Security Remote Switch Port Analyzer (RSPAN) NetFlow Management Information Base (MIB) Flexible NetFlow (FNF) Multicast Source Discovery Protocol (MSDP) 802.1x authentication DiffServ Code Point (DSCP) support MACsec support Virtual Private LAN Service (VPLS) Control plane protection (CoPP) Label Distribution Protocol (LDP) Location ID Separation Protocol (LISP) Instant Access (IA) Virtual Switching System (VSS) |
| Compliant Standards | IEEE 802.1x IEEE 802.1ae |
| RAM | 4 GB |
| Interfaces | 40 x 10GBase-X SFP | 2 x 40Gbit WAN QSFP (breakout compatible) uplink | 1 x management (LAN) RJ-45 | 1 x serial (console) RJ-45 | 1 x USB Type A | 1 x console (mini-USB) Type B | 1 x management SFP |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 0 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1 1 (with optional power supply) |
| Compliant Standards | CISPR 22 Class A EN55024 EN55022 Class A EN50082-1 EN 61000-6-1 UL 60950-1 Second Edition FCC Part 15 A AS/NZS 3548 Class A AS/NZS 60950 EN 60950-1 Second Edition IEC 60950-1 Second Edition GR-1089-CORE CAN/CSA C22.2 No. 60950 VCCI Class A ETS 300 386 ETSI 300 019 |
| Software Included | Cisco IOS Advanced Enterprise Services Cisco IOS IP Services |
| OS Required | Cisco IOS 15.2(2)SY |
| Width | 17.4 in |
| Depth | 21.5 in |
| Height | 3.5 in |
| Weight | 37.04 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
