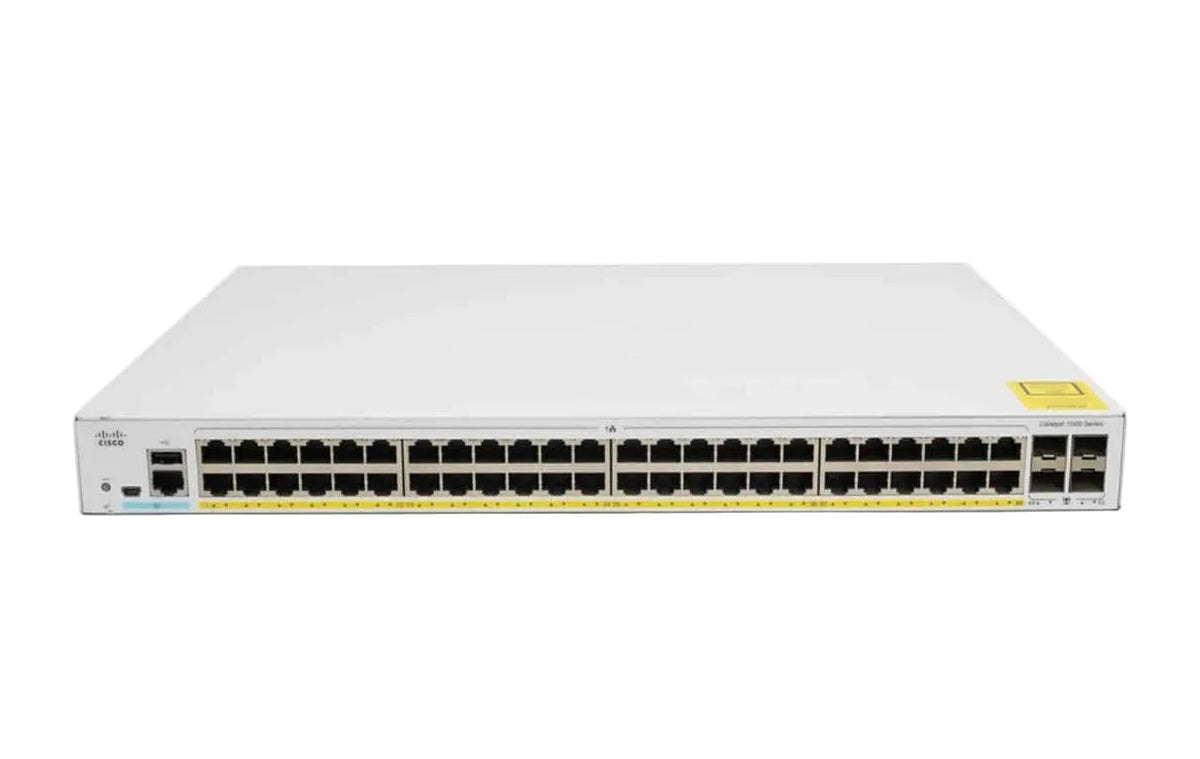

| Product & Series | Cisco C1300X-48T-4X, part of the Cisco Catalyst 1300X Series |
| Access Ports | 48 x Gigabit Ethernet RJ-45 ports |
| Uplink Ports | 4 x SFP28 (10G uplink, 25G available for stacking only) |
| Management Port | 1 x GE out-of-band management port |
| Console | Cisco standard RJ-45 console port and USB Type C port |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps (64-byte packets) |
| Packet Buffer | 3 MB |
| MAC Table | Up to 32,000 entries |
| VLANs | Up to 4094 VLANs |
| Spanning Tree | 802.1d Spanning Tree, 802.1w RSTP, 802.1s MSTP with 16 instances |
| Jumbo Frames | Frame sizes up to 9000 bytes |
| IGMP Snooping | 4000 multicast groups |
| Link Aggregation | Up to 8 groups, up to 8 ports per group |
| QoS | 8 hardware queues |
| Stacking | Up to 8 switches in a stack, up to 400 ports managed as a single system |
| Security and Routing | IEEE 802.1X; dynamic ARP inspection; DHCP snooping; Layer 3 routing with OSPF v2 and v3 |
| System Power Consumption | 110V: 66.7W; 220V: 72.1W |
| Idle Power | 110V: 18.5W; 220V: 20W |
| Heat Dissipation | 285.6 BTU/hr |
| Cooling | 1 fan, acoustic output 21.6 dBA at 25 C |
| MTBF | 324,549 hours |
| Dimensions | 444.3 x 270 x 43.94 mm (17.49 x 10.63 x 1.73 in.) |
| Weight | 3.6 kg (7.94 lb) |
| Operating Temperature | 23 to 122 F (-5 to 50 C) |
| Storage Temperature | -13 to 158 F (-25 to 70 C) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
