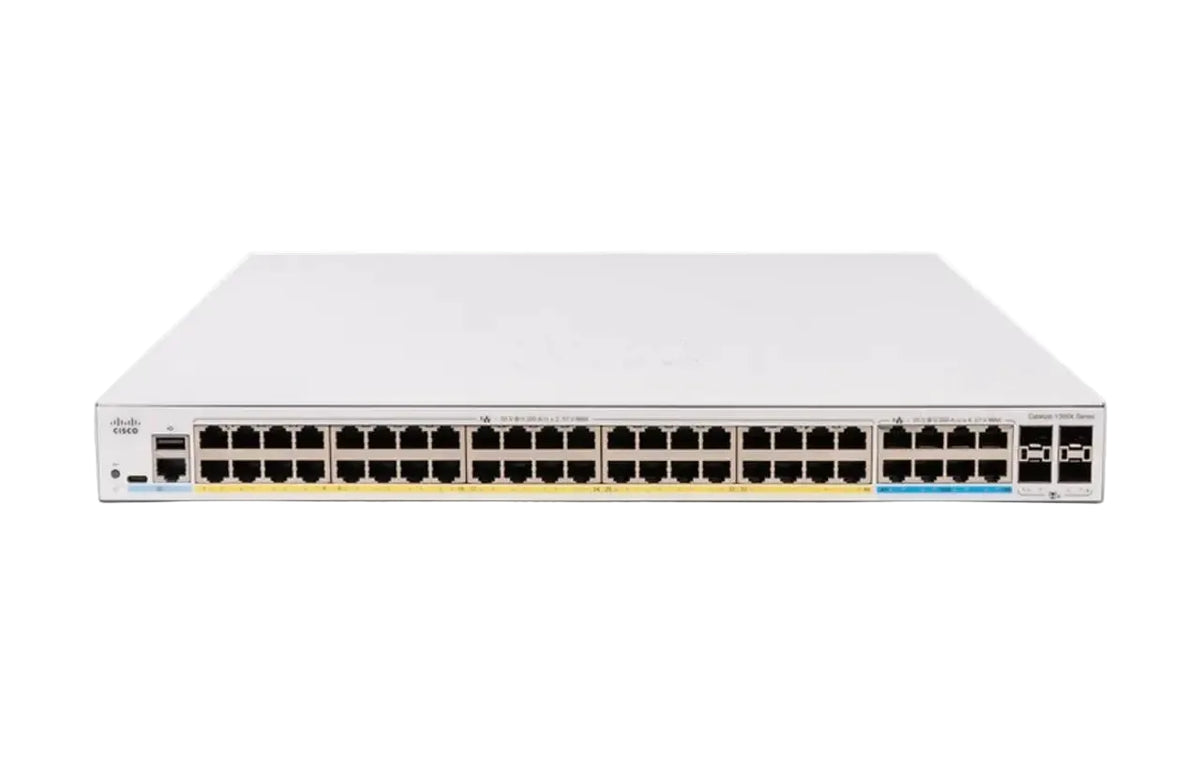

| Model | Cisco C1300X-48NGU-4X |
| Series | Cisco Catalyst 1300X Series |
| Type | Managed Layer 3 switch, rack-mountable |
| Gigabit Ports | 40 x 10/100/1000, 30W PoE+ |
| Multigigabit Ports | 8 x 5G, 60W PoE++ (802.3bt) |
| PoE Budget | 740W |
| Uplinks | 4 x 10G SFP28 (10G uplink, 25G available for stacking only) |
| Stacking | Up to 8 switches and 400 ports, single IP address |
| Switching Capacity | 240 Gbps, wire speed, nonblocking |
| Forwarding Rate | 178.57 Mpps |
| Packet Buffer | 8 MB |
| MAC Address Table | Up to 32,000 entries |
| VLANs | Up to 4094 |
| Jumbo Frames | Up to 9000 bytes (default MTU 2000 bytes) |
| ACL Rules | Up to 3,072 |
| IPv4 Routing | Up to 7,168 routes and 256 IP interfaces |
| IGMP Snooping | 4,000 multicast groups |
| CPU and Memory | ARM dual-core 1.5 GHz, 2 GB DDR4 DRAM, 1 GB SLC flash |
| Console | RJ-45 console port and USB Type C port |
| LEDs | System, Link/Act, PoE, Speed |
| System Power Consumption | 113.2W at 110V, 122.4W at 220V (worst case, without PoE load) |
| Fans | 2 |
| Dimensions (W x D x H) | 444.3 x 340 x 43.94 mm (17.49 x 13.38 x 1.73 in) |
| Weight | 5.15 kg (11.35 lb) |
| Operating Temperature | -5 to 50 C (23 to 122 F) |
| Storage Temperature | -25 to 70 C (-13 to 158 F) |
| Humidity | 10% to 90% relative, noncondensing |
| Layer 3 | RIPv2, OSPF v2 and v3, policy-based routing, DHCP server, DHCP relay, UDP relay |
| IPv6 | Dual-stack, wire-speed IPv6 routing, IPv6 QoS and ACLs, MLD v1/v2 snooping, IPv6 First Hop Security |
| Security | 802.1X, port security, web-based authentication, Dynamic ARP Inspection, IP Source Guard, DHCP snooping, storm control, DoS prevention, SSH, HTTPS, RADIUS, TACACS+ |
| Resiliency | Dual images, LACP, Rapid STP (802.1w), MSTP 16 instances, PVST+/RPVST+ 126 instances |
| Management | Cisco Business Dashboard, web UI, CLI, SNMP v1/v2c/v3, Cisco Network Plug and Play, Cisco Business mobile app |
| Energy Efficiency | IEEE 802.3az EEE, ports power off when links are down |
| Rack-Mount Kit | RCKMNT-1RU-1K= (1 RU rack-mount kit) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
