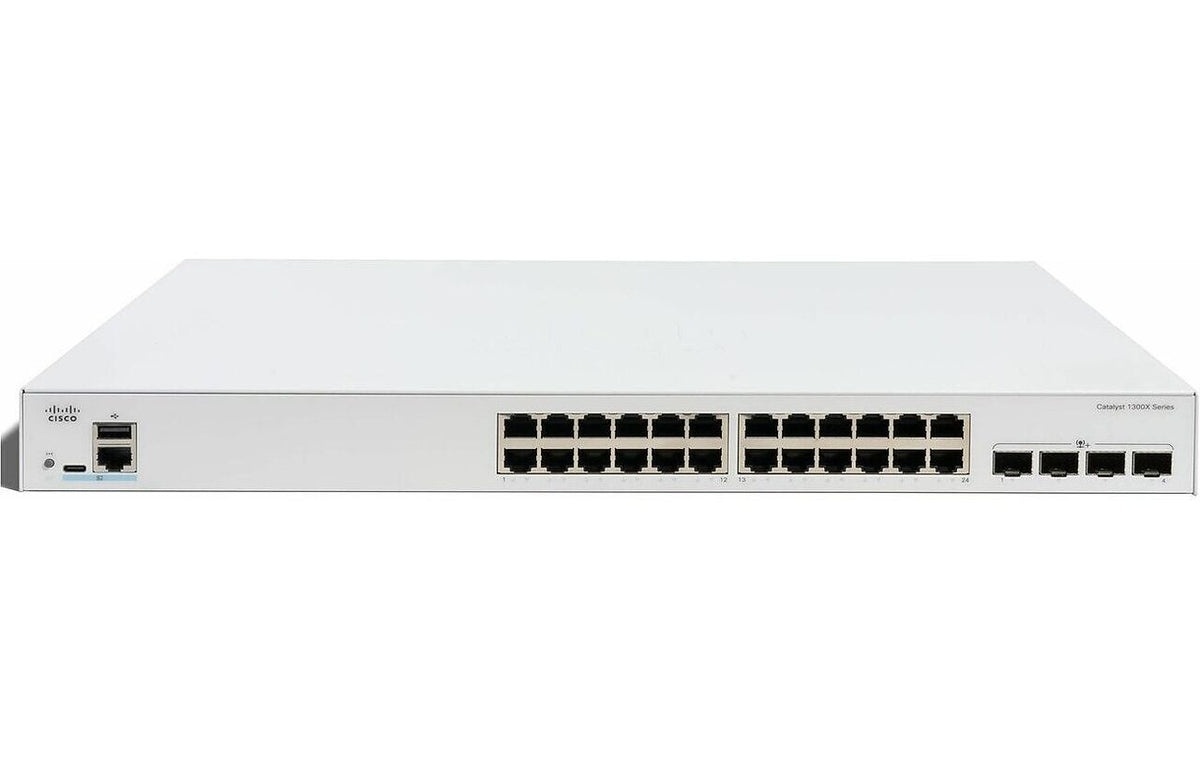

| Model | Cisco C1300X-24P-4X |
| Series | Cisco Catalyst 1300X Series |
| Switch Type | Managed Layer 3 switch, PoE+ |
| Downlink Ports | 24 x 10/100/1000 Gigabit Ethernet RJ-45 PoE+ |
| Uplink Ports | 4 x 10G SFP28 (25G on SFP28 slots for stacking only) |
| PoE Ports | 24 |
| Maximum Power per Port | 30W |
| Total PoE Budget | 385W |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps (64-byte packets) |
| Packet Buffer | 3 MB |
| CPU | Dual-core ARM at 1.5 GHz |
| DRAM | 2 GB DDR4 |
| Flash | 1 GB SLC |
| Stacking | Up to 8 units in a C1300X stack, hardware failover, LAG across units |
| Power Input | 100-240V AC, 50-60 Hz, internal universal supply |
| Power Consumption (System) | 81.3W at 110V, 84.6W at 220V |
| Idle Power | 13.6W at 110V, 16.6W at 220V |
| Cooling | 1 fan |
| Acoustic Noise | 44.5 dBA at 25C |
| MTBF | 368,309 hours at 25C |
| Dimensions (W x D x H) | 444.3 x 270 x 43.94 mm (17.49 x 10.63 x 1.73 in) |
| Weight | 3.96 kg (8.73 lb) |
| Rack Mounting | Rack-mountable, 19-inch |
| Operating Temperature | -5C to 50C (23F to 122F), cold start from 0C |
| Storage Temperature | -25C to 70C |
| Operating and Storage Humidity | 10% to 90% relative, noncondensing |
| MAC Address Table | 32,000 entries |
| Spanning Tree | 802.1D, RSTP, MSTP (16 instances), PVST+ and RPVST+ (126 instances) |
| Link Aggregation | LACP, up to 8 groups with up to 8 ports each |
| VLANs | VLAN IDs up to 4,094, with private VLAN, voice VLAN, guest VLAN, Q-in-Q, selective Q-in-Q and VLAN translation |
| IGMP Snooping | IGMP v1, v2 and v3, 4,000 groups, querier and proxy |
| Jumbo Frames | Up to 9,000 bytes |
| Layer 3 Routing | Wire-speed IPv4 and IPv6 routing, 7,168 IPv4 routes, RIPv2, OSPFv2/v3, policy-based routing, DHCP server and relay |
| ACL | Up to 3,072 rules, time-based ACLs |
| QoS | 8 hardware queues, strict priority and WRR, DSCP and 802.1p classification, ingress policing, egress shaping, iSCSI prioritization |
| Security | 802.1X, web authentication, port security, DHCP snooping, dynamic ARP inspection, IP Source Guard, IPv6 First Hop Security, BPDU Guard, root guard, RADIUS and TACACS+, SSH, HTTPS, storm control |
| Management | Web UI, CLI, SNMP v1/2c/3, RMON (4 groups), sFlow, port and VLAN mirroring, RSPAN, SCP, auto-configuration, Smartports |
| Cisco Business Dashboard | Embedded probe, plus mobile app and Network PnP |
| Discovery | Bonjour, LLDP-MED, Cisco Discovery Protocol |
| Firmware | Upgrade by HTTP/HTTPS, TFTP or SCP, dual images |
| Energy Efficiency | 802.3az EEE, energy detect, cable-length adjustment, time-based port and PoE scheduling, LED disable |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
