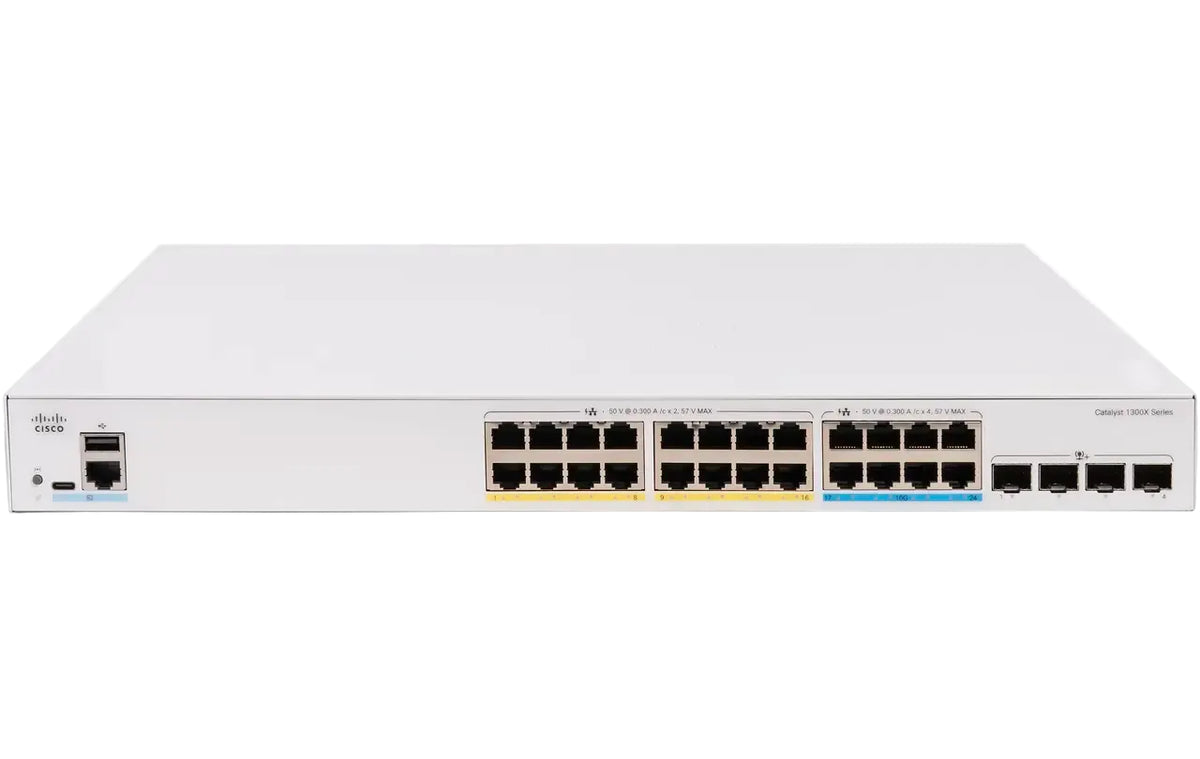

| Model | Cisco C1300X-24NGU-4X |
| Series | Cisco Catalyst 1300X Series |
| Switch Type | Managed Layer 3 switch, multigigabit PoE++ |
| Downlink Ports | 16 x 10/100/1000 Gigabit Ethernet RJ-45 PoE+, 8 x 5G multigigabit RJ-45 PoE++ |
| Uplink Ports | 4 x 10G SFP28 (25G on SFP28 slots for stacking only) |
| PoE Standards | 802.3at PoE+ on 16 Gigabit ports, 802.3bt PoE++ on 8 multigigabit ports |
| PoE Ports | 24 |
| Maximum Power per Port | 30W on Gigabit ports, 60W on multigigabit ports |
| Total PoE Budget | 740W |
| Switching Capacity | 192 Gbps |
| Forwarding Rate | 142.85 Mpps (64-byte packets) |
| Packet Buffer | 3 MB, shared across all ports |
| CPU | Dual-core ARM at 1.5 GHz |
| DRAM | 2 GB DDR4 |
| Flash | 1 GB SLC |
| Stacking | Up to 8 units and 400 ports in a C1300X stack, hardware failover |
| Power Input | 100-240V AC, 50-60 Hz, internal universal supply |
| Power Consumption (System) | 104.2W at 110V, 103.9W at 220V |
| Idle Power | 25.5W at 110V, 26.8W at 220V |
| Cooling | 1 fan |
| MTBF | 343,272 hours at 25C |
| Dimensions (W x D x H) | 444.3 x 270 x 43.94 mm (17.49 x 10.63 x 1.73 in) |
| Weight | 4.23 kg (9.33 lb) |
| Rack Mounting | Rack-mountable, 19-inch |
| Operating Temperature | -5C to 50C (23F to 122F), cold start from 0C |
| Storage Temperature | -25C to 70C (-13F to 158F) |
| Operating and Storage Humidity | 10% to 90% relative, noncondensing |
| MAC Address Table | 32,000 entries |
| Spanning Tree | 802.1D, RSTP, MSTP (16 instances), PVST+ and RPVST+ (126 instances) |
| Link Aggregation | LACP, up to 8 groups with up to 8 ports each |
| IGMP Snooping | IGMP v1, v2 and v3, 4,000 groups, querier and proxy |
| Jumbo Frames | Up to 9,000 bytes |
| Layer 3 Routing | Wire-speed IPv4 and IPv6 routing, 7,168 IPv4 routes, 256 IP interfaces, RIPv2, OSPFv2/v3, policy-based routing, DHCP server and relay |
| ACL | Up to 3,072 rules, time-based ACLs |
| QoS | 8 hardware queues, strict priority and WRR, DSCP and 802.1p classification, ingress policing, egress shaping, iSCSI prioritization |
| Security | 802.1X, web authentication, port security, DHCP snooping, dynamic ARP inspection, IP Source Guard, IPv6 First Hop Security, BPDU Guard, root guard, RADIUS and TACACS+, SSH, HTTPS, storm control |
| Management | Web UI, CLI, SNMP v1/2c/3, RMON (4 groups), sFlow, port and VLAN mirroring, RSPAN, SCP, auto-configuration, Smartports |
| Cisco Business Dashboard | Embedded probe, plus mobile app and Network PnP |
| Discovery | Bonjour, LLDP-MED, Cisco Discovery Protocol |
| Firmware | Upgrade by HTTP/HTTPS, TFTP or SCP, dual images |
| Energy Efficiency | 802.3az EEE, energy detect, cable-length adjustment, time-based port and PoE scheduling, LED disable |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
