| Brand | Cisco |

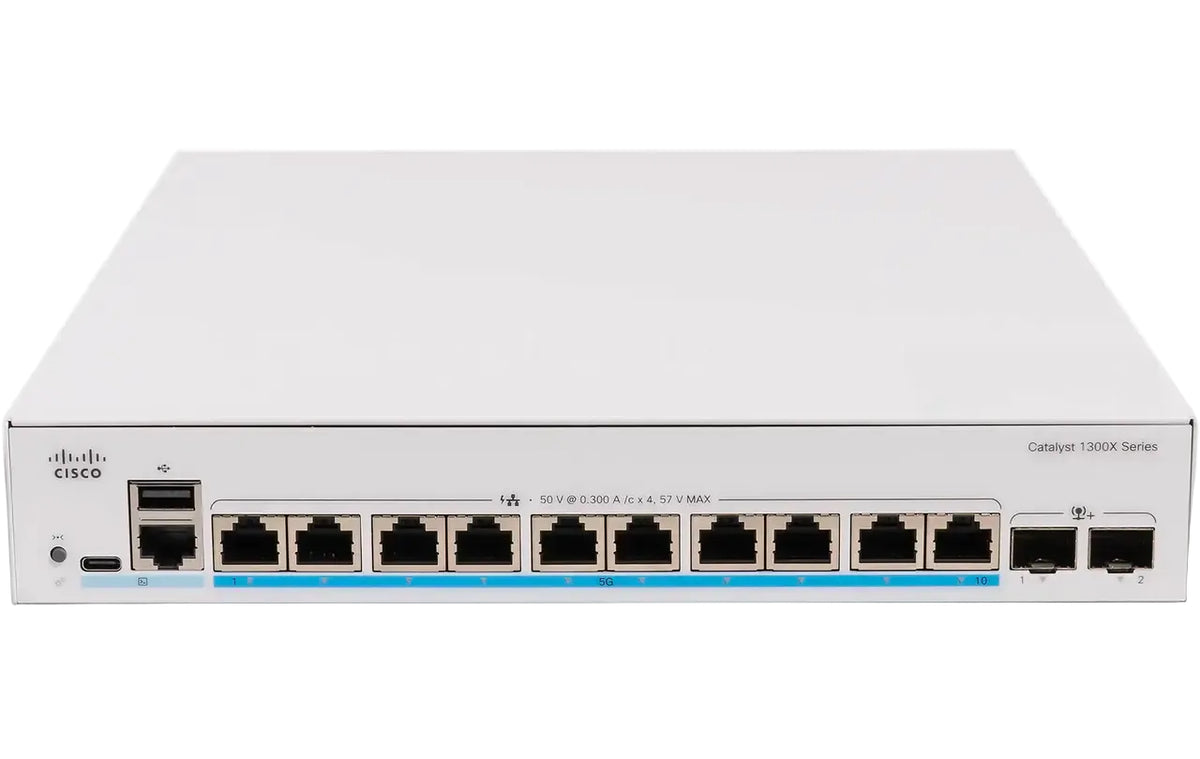

| Model | C1300X-10NU-2X |
| Series | Catalyst 1300X Series |
| Switch Type | Layer 3 managed |
| RJ-45 Ports | 10 x 5G multigigabit |
| Uplink Ports | 2 x 10G SFP28 (25G available for stacking only) |
| Console | Cisco standard RJ-45 console port and USB Type-C port |
| PoE Standards | 802.3bt PoE++, 802.3at PoE+ |
| PoE Ports | 10 |
| Maximum Power per Port | 60 W |
| PoE Power Budget | 385 W |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps (64-byte packets) |
| Packet Buffer | 3 MB |
| MAC Address Table | 32,000 |
| VLANs | 4094 |
| Jumbo Frames | Up to 9000 bytes |
| IPv4 Routes | Up to 7168 (dynamic and static) |
| ACL Rules | Up to 3072 |
| Multicast Groups | 4000 |
| Stacking | Up to 8 switches per stack |
| Quality of Service | 8 hardware queues, rate limiting, Weighted Round-Robin scheduling |
| Security | IEEE 802.1X, Dynamic ARP Inspection, DHCP snooping, IPv6 First Hop Security |
| IPv6 | Full support including ND inspection, RA guard and DHCPv6 guard |
| Management | Cisco Business Dashboard, web UI, CLI, SNMP, Cisco Network Plug and Play |
| Energy Efficiency | Energy Efficient Ethernet (IEEE 802.3az) |
| CPU | ARM dual-core, 1.5 GHz |
| DRAM | 2 GB DDR4 |
| Flash Memory | 1 GB SLC |
| Fans | 1 |
| Power Input | 100 to 240 V, 50 to 60 Hz, internal |
| Power Consumption (no PoE) | 51.9 W at 110 V, 52.5 W at 220 V |
| Power Consumption (full PoE) | 453.2 W at 110 V, 442.2 W at 220 V |
| Heat Dissipation | 1546.38 BTU/hr |
| Acoustic Noise | 38.9 dBA at 25 C |
| MTBF | 470,352 hours at 25 C |
| Dimensions (W x D x H) | 268 x 308 x 43.94 mm (10.55 x 12.13 x 1.73 in) |
| Weight | 3.03 kg (6.68 lb) |
| Operating Temperature | 23 to 122 F (-5 to 50 C) |
| Storage Temperature | -13 to 158 F (-25 to 70 C) |
| Operating Humidity | 10% to 90% relative, noncondensing |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
