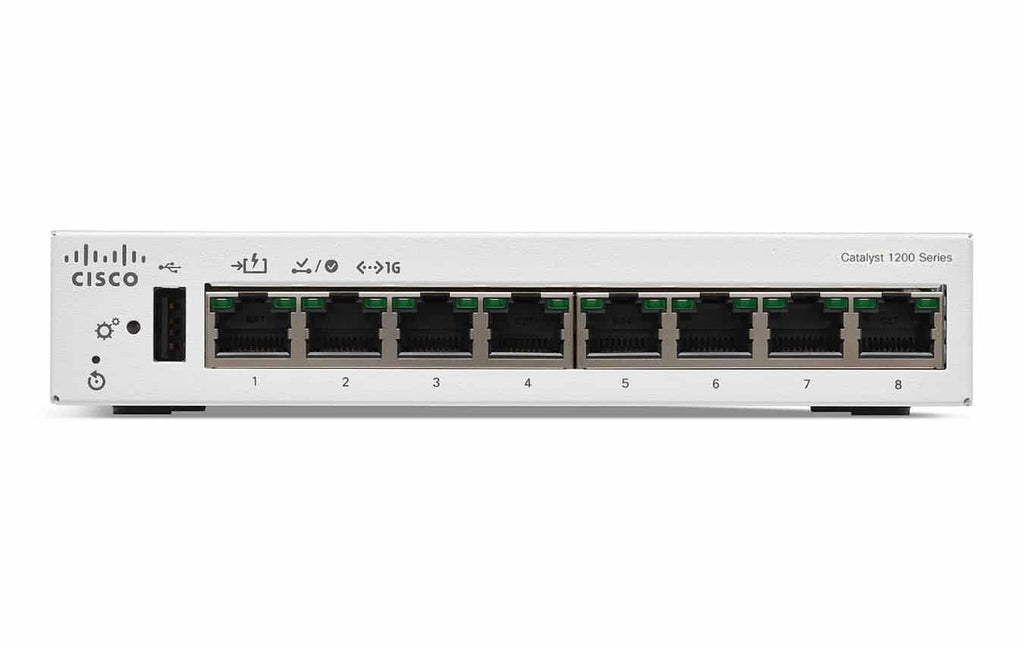

| Brand | Cisco |
| Model | C1200-8T-D |
| Series | Catalyst 1200 Series |
| Product Type | Desktop smart switch |
| Description | 8 x 10/100/1000 ports, desktop |
| RJ-45 Ports | 8 x 10/100/1000 |
| SFP Ports | 0 |
| Cabling | Cat 5e or better for 1000BASE-T |
| PoE Output | Not supported |
| PoE Input | 1 x 802.3af input on port 1 |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.90 Mpps (64-byte packets) |
| Packet Buffer | 1.5 MB, shared dynamically across ports |
| Architecture | Wire-speed, nonblocking |
| MAC Address Table | 8,000 |
| VLANs | Up to 255 active, port-based and 802.1Q tag-based |
| Jumbo Frames | Up to 9,000 bytes (default MTU 2,000 bytes) |
| ACL Rules | Up to 512, including time-based ACLs |
| Quality of Service | 8 hardware queues, strict priority and weighted round-robin scheduling |
| Spanning Tree | 802.1d, RSTP, MSTP (8 instances), PVST+ and RPVST+ (126 instances each), loopback guard |
| Link Aggregation | LACP, up to 4 groups with up to 8 ports each |
| Multicast | IGMP v1/v2/v3 snooping (255 groups), IGMP querier, MLD v1/v2 snooping |
| IPv4 Routing | Static routing, up to 32 routes and 16 IP interfaces, DHCP relay, UDP relay |
| IPv6 | Host mode, dual stack, IPv6 routing, IPv6 ACL, IPv6 QoS |
| Security | 802.1X authenticator, RADIUS client, port security, storm control, DoS prevention, SSH, SSL/HTTPS, SCP, CLI privilege levels 1, 7 and 15 |
| Management | Cisco Business Dashboard embedded probe, Cisco Business mobile app, Cisco Network Plug and Play agent, web UI, scriptable CLI, SNMP v1/v2c/v3, RMON, dual firmware images |
| Port Mirroring | Up to 4 source ports, VLAN mirroring up to 4 sources |
| Discovery | Bonjour, LLDP, LLDP-MED, CDP |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet, Energy Detect, cable length detection, port scheduling, port LEDs can be disabled, fanless design |
| CPU | Dual-core ARM, 1.4 GHz |
| DRAM | 1 GB DDR4 |
| Flash Memory | 512 MB |
| Cooling | Fanless |
| Power Supply | External adapter, 100 to 240 V, 50 to 60 Hz |
| Power Consumption | 7.03 W at 110 V, 7.09 W at 220 V |
| Idle Power Consumption | 4.14 W at 110 V, 4.26 W at 220 V |
| Heat Dissipation | 24.20 BTU/hr |
| MTBF | 3,277,956 hours at 25 C |
| Mounting | Desktop |
| Package Contents | Switch, power adapter, mounting kit, pointer card |
| Dimensions (W x D x H) | 160 x 128 x 30 mm (6.3 x 5.04 x 1.18 in) |
| Weight | 0.54 kg (1.19 lb) |
| Operating Temperature | 0 to 50 C (32 to 122 F) |
| Storage Temperature | -25 to 70 C (-13 to 158 F) |
| Operating Humidity | 10% to 90% relative, noncondensing |
| Storage Humidity | 10% to 90% relative, noncondensing |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
