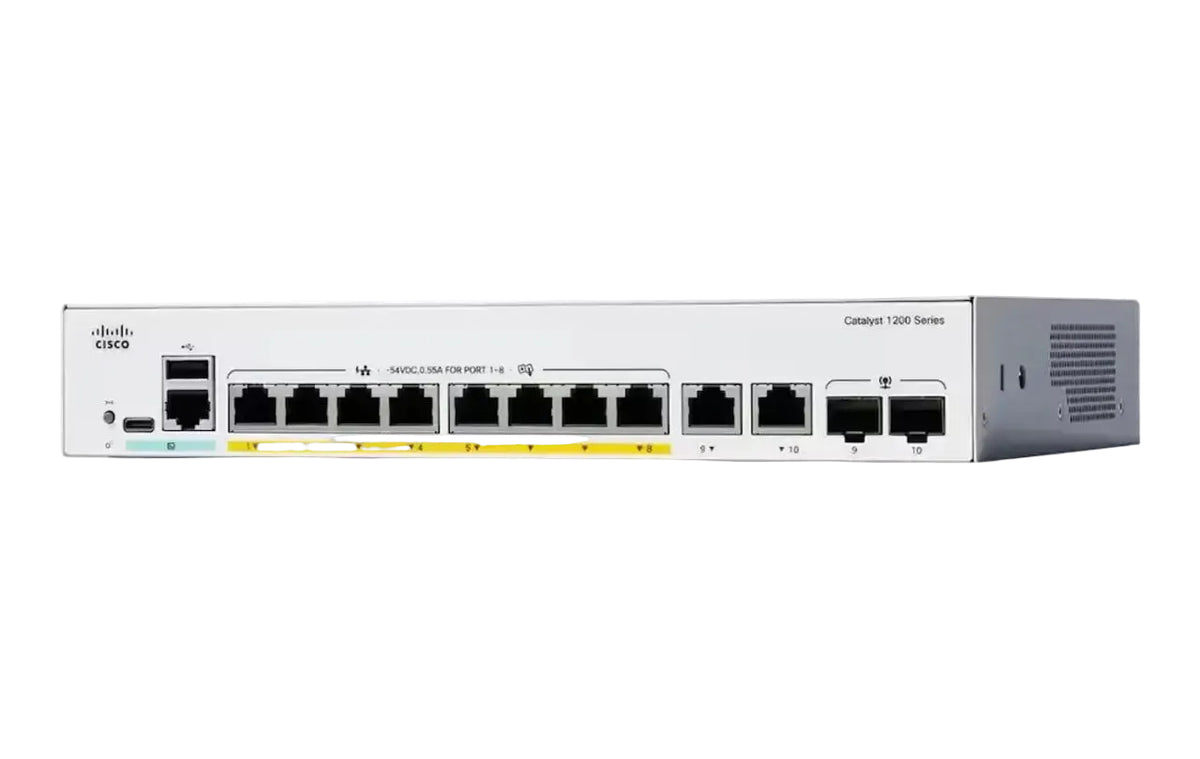

| Model | Cisco C1200-8FP-2G |
| Series | Catalyst 1200 |
| Form Factor | Rack-mountable, fanless |
| Access Ports | 8 x 10/100/1000 PoE+ |
| Uplink Ports | 2 x Gigabit Ethernet combo (RJ-45 or SFP, one active at a time) |
| Total Ports | 10 x Gigabit Ethernet |
| PoE Budget | 120W |
| Max PoE Per Port | 30W |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps (64-byte packets) |
| Packet Buffer | 1.5 MB |
| MAC Address Table | 8,000 entries |
| VLANs | Up to 255 active |
| Link Aggregation | LACP (IEEE 802.3ad) |
| Jumbo Frames | Up to 9,000 bytes (default MTU 2,000 bytes) |
| Static Routes | Up to 32 |
| IP Interfaces | Up to 16 |
| IGMP Snooping | 255 multicast groups |
| QoS | 8 hardware queues, IPv6 packet prioritization in hardware |
| ACL Rules | Up to 512 |
| Energy Efficiency | IEEE 802.3az on all copper Gigabit ports |
| Discovery | Bonjour |
| SNMP | Versions 1, 2c and 3 with traps |
| Console | Cisco standard RJ-45 and USB Type-C |
| CPU | Dual-core ARM at 1.4 GHz |
| Memory | 1 GB DDR4 DRAM |
| Flash | 512 MB |
| LEDs | System, Link/Act, PoE, Speed |
| Power Input | 100 to 240V AC, 50 to 60 Hz, internal universal |
| System Power (Worst Case) | 14.59W at 110V, 14.33W at 220V |
| Idle Power | 9.75W at 110V, 9.59W at 220V |
| Dimensions (W x D x H) | 10.56 x 7.28 x 1.73 in (268 x 185 x 44 mm) |
| Weight | 3.37 lb (1.53 kg) |
| Operating Temperature | 23 to 122°F (-5 to 50°C) |
| Storage Temperature | -13 to 158°F (-25 to 70°C) |
| Operating Humidity | 10 to 90% relative, noncondensing |
| Storage Humidity | 10 to 90% relative, noncondensing |
| Acoustic Noise | None (fanless) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
