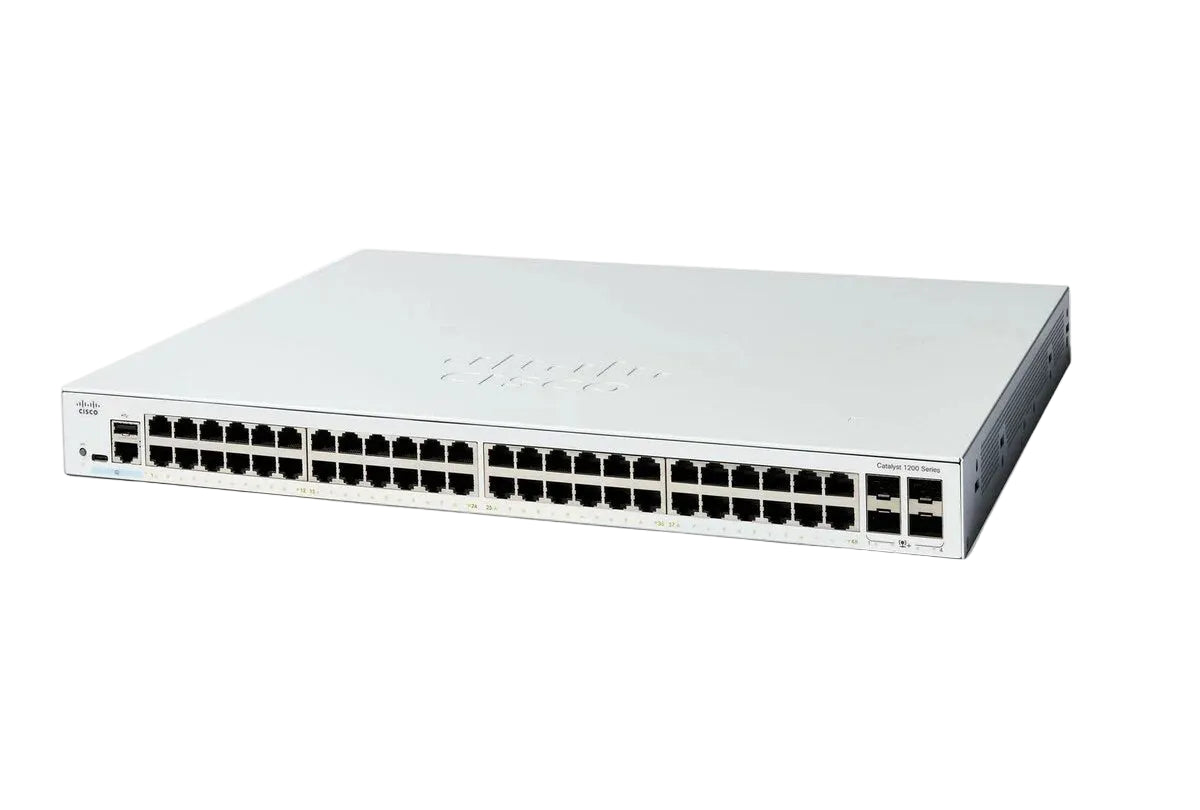

| Model | Cisco C1200-48T-4G |
| Series | Catalyst 1200 |
| Form Factor | Rack-mountable, 1RU |
| Access Ports | 48 x 10/100/1000 RJ-45 |
| Uplink Ports | 4 x Gigabit SFP |
| Total Ports | 52 x Gigabit Ethernet |
| PoE | Not supported |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps (64-byte packets) |
| Packet Buffer | 3 MB |
| MAC Address Table | 8,000 entries |
| VLANs | Up to 255 active |
| Spanning Tree | 802.1D, RSTP, MSTP (8 instances), PVST+ and RPVST+ (126 instances each) |
| Link Aggregation | LACP, up to 4 groups with up to 8 active ports each |
| Jumbo Frames | Up to 9,000 bytes (default MTU 2,000 bytes) |
| Multicast | IGMP v1/v2/v3 snooping (255 multicast groups), IGMP querier, MLD v1/v2 snooping |
| Routing | IPv4 and IPv6 at wire speed, up to 32 static routes, up to 16 IP interfaces |
| ACL Rules | Up to 512, time-based ACLs supported |
| QoS | 8 hardware queues, strict priority and weighted round-robin, 802.1p, DSCP, ingress policing, egress shaping |
| Security | 802.1X authenticator, port security, RADIUS client, storm control, DoS prevention, SSH, SSL/HTTPS |
| Management | Embedded Cisco Business Dashboard probe, Cisco Business mobile app, web interface, CLI, SNMP v1/v2c/v3, RMON |
| Port Mirroring | Up to 4 source ports to one destination port, VLAN mirroring |
| Firmware | Dual images, SCP upgrade |
| Discovery | Bonjour, LLDP, LLDP-MED, Cisco Discovery Protocol |
| Energy Efficiency | IEEE 802.3az on copper Gigabit ports |
| Console | Cisco standard RJ-45 and USB Type-C |
| CPU | Dual-core ARM at 1.4 GHz |
| Memory | 1 GB DDR4 DRAM |
| Flash | 512 MB |
| LEDs | System, Link/Act, PoE, Speed |
| Power Input | 100 to 240V, 50 to 60 Hz, internal, universal |
| System Power (Worst Case) | 38.80W at 110V, 38.07W at 220V |
| Idle Power | 13.36W at 110V, 13.09W at 220V |
| Heat Dissipation | 132.39 BTU/hr |
| Fans | 1 |
| Acoustic Noise | 29.7 dBA at 25°C |
| Dimensions (W x D x H) | 17.5 x 11.33 x 1.73 in (445 x 288 x 44 mm) |
| Weight | 8.71 lb (3.95 kg) |
| Operating Temperature | 23 to 122°F (-5 to 50°C) |
| Storage Temperature | -13 to 158°F (-25 to 70°C) |
| Operating Humidity | 10 to 90% relative, noncondensing |
| Storage Humidity | 10 to 90% relative, noncondensing |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
