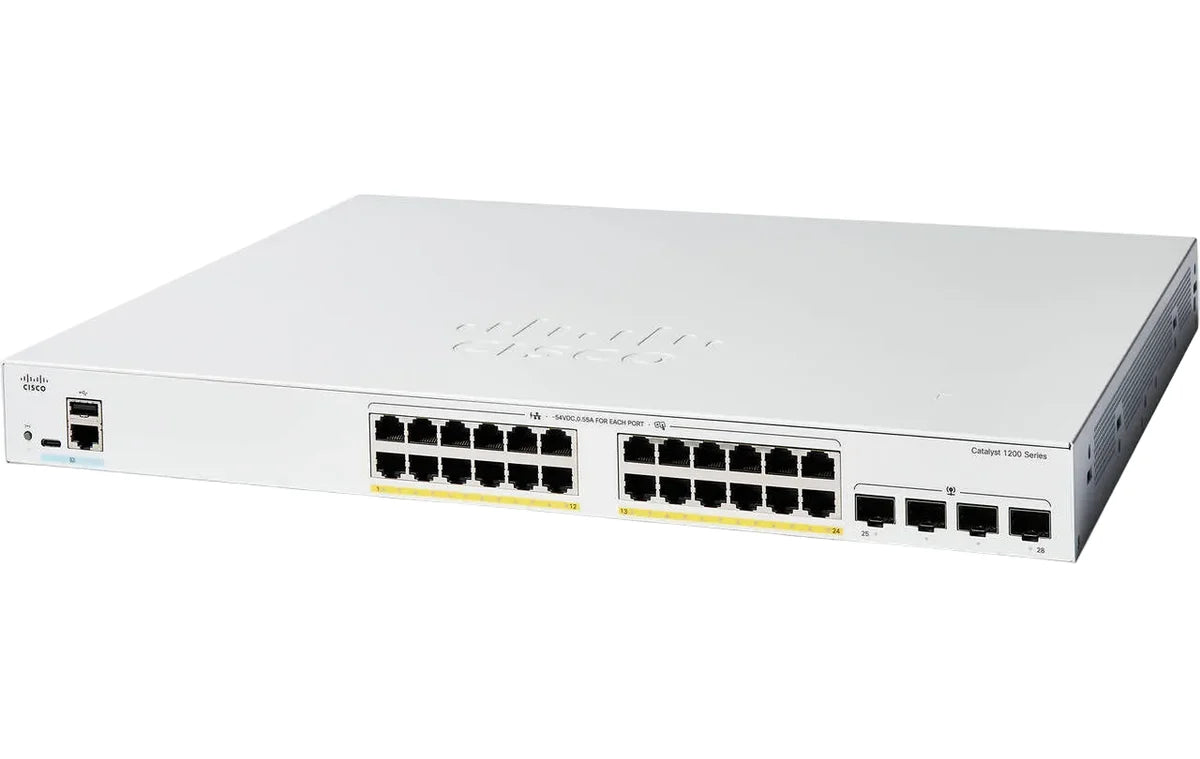

| Model | Cisco C1200-24P-4X |
| Series | Catalyst 1200 |
| Form Factor | Rack-mountable, fanless |
| Access Ports | 24 x 10/100/1000 PoE+ |
| Uplink Ports | 4 x SFP+ (10G or 1G) |
| Total Ports | 24 x Gigabit Ethernet + 4 x 10 Gigabit Ethernet |
| PoE Budget | 195W |
| PoE Ports | 24 |
| Max PoE Per Port | 30W |
| PoE Standards | 802.3at (PoE+), 802.3af, Cisco prestandard PoE |
| PoE Features | Perpetual PoE, time-based PoE |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps (64-byte packets) |
| Packet Buffer | 1.5 MB |
| MAC Address Table | 8,000 entries |
| VLANs | Up to 255 active |
| Spanning Tree | 802.1D, RSTP, MSTP (8 instances), PVST+ and RPVST+ (126 instances each) |
| Link Aggregation | LACP, up to 4 groups with up to 8 active ports each |
| Jumbo Frames | Up to 9,000 bytes (default MTU 2,000 bytes) |
| Multicast | IGMP v1/v2/v3 snooping (255 multicast groups), IGMP querier, MLD v1/v2 snooping |
| Routing | IPv4 and IPv6 at wire speed, up to 32 static routes, up to 16 IP interfaces |
| ACL Rules | Up to 512, time-based ACLs supported |
| QoS | 8 hardware queues, strict priority and weighted round-robin, 802.1p, DSCP, ingress policing, egress shaping |
| Security | 802.1X authenticator, port security, RADIUS client, storm control, DoS prevention, SSH, SSL/HTTPS |
| Management | Embedded Cisco Business Dashboard probe, Cisco Business mobile app, web interface, CLI, SNMP v1/v2c/v3, RMON |
| Port Mirroring | Up to 4 source ports to one destination port, VLAN mirroring |
| Firmware | Dual images, HTTP/HTTPS, TFTP or SCP upgrade |
| Discovery | Bonjour, LLDP, LLDP-MED, Cisco Discovery Protocol |
| Energy Efficiency | IEEE 802.3az on copper Gigabit ports, Energy Detect, cable length detection |
| Console | Cisco standard RJ-45 and USB Type-C |
| CPU | Dual-core ARM at 1.4 GHz |
| Memory | 1 GB DDR4 DRAM |
| Flash | 512 MB |
| LEDs | System, Link/Act, PoE, Speed |
| Power Input | 100 to 240V, 50 to 60 Hz, internal, universal |
| System Power (Worst Case) | 30.2W at 110V, 31.6W at 220V |
| Idle Power | 13.9W at 110V, 15.2W at 220V |
| Dimensions (W x D x H) | 17.5 x 11.77 x 1.73 in (445 x 299 x 44 mm) |
| Weight | 8.11 lb (3.68 kg) |
| Operating Temperature | 23 to 122°F (-5 to 50°C) |
| Storage Temperature | -13 to 158°F (-25 to 70°C) |
| Operating Humidity | 10 to 90% relative, noncondensing |
| Storage Humidity | 10 to 90% relative, noncondensing |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
