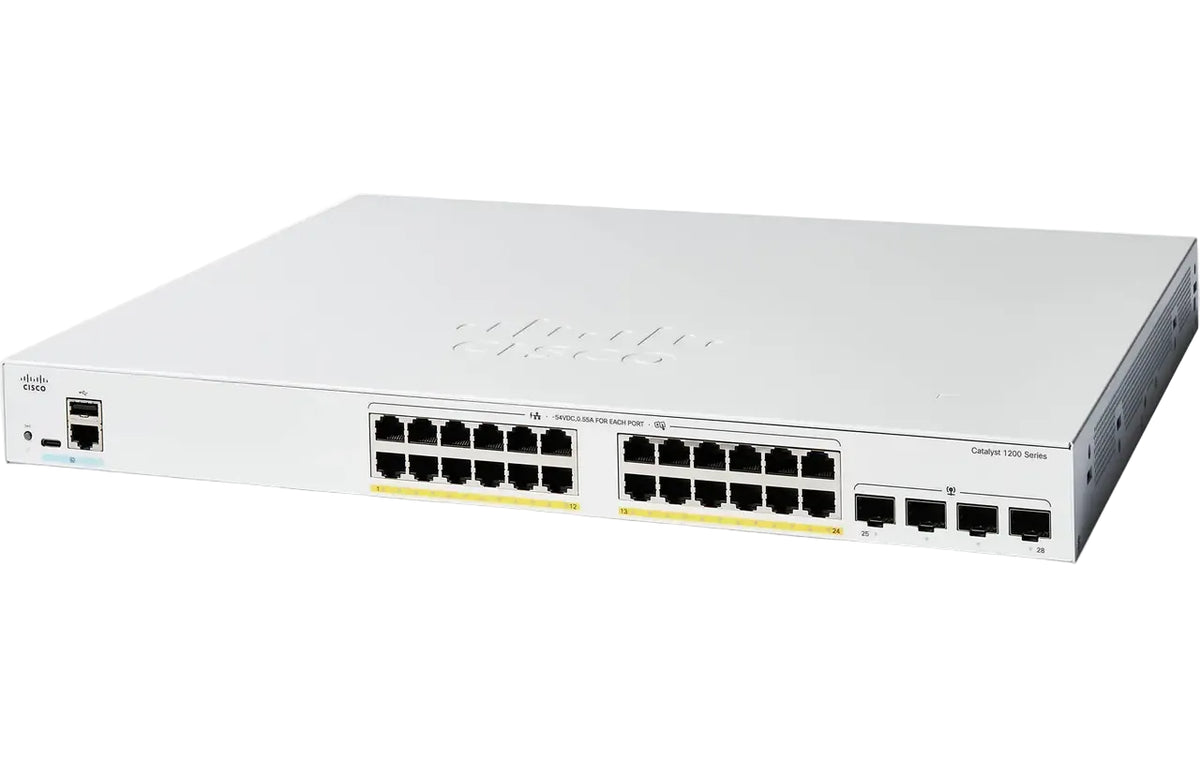

| Brand | Cisco |
| Model | C1200-24FP-4G |
| Series | Catalyst 1200 Series |
| Description | 24x 10/100/1000 PoE+ ports with 375 W power budget, 4x Gigabit SFP |
| RJ-45 Ports | 24 x 10/100/1000 PoE+ |
| SFP Ports | 4 x Gigabit SFP |
| Console | Cisco standard RJ-45 console port and USB Type-C port |
| PoE Standard | 802.3at PoE+ |
| PoE Ports | 24 |
| Maximum Power per Port | 30 W |
| PoE Power Budget | 375 W |
| Switching Capacity | 41.67 Gbps |
| Forwarding Rate | 41.67 Mpps (64-byte packets) |
| Packet Buffer | 1.5 MB |
| MAC Address Table | 8000 |
| VLANs | Up to 255 active |
| Jumbo Frames | Up to 9000 bytes |
| Static Routes | Up to 32 |
| ACL Rules | Up to 512 |
| Multicast Groups | 255 |
| Quality of Service | 8 hardware queues, priority scheduling, rate limiting |
| Security | IEEE 802.1X port authentication, DoS attack prevention, RADIUS |
| IPv6 | Full stack support including routing, ACLs and multicast snooping |
| Management | Cisco Business Dashboard, mobile app, web UI with configuration wizards, CLI, SNMP, SSH |
| Energy Efficiency | Energy Efficient Ethernet (IEEE 802.3az) |
| CPU | Dual-core ARM, 1.4 GHz |
| DRAM | 1 GB DDR4 |
| Flash Memory | 512 MB |
| Fans | 1 |
| Power Input | 100 to 240 V, 50 to 60 Hz, internal, universal |
| Power Consumption (no PoE, worst case) | 28.9 W at 110 V, 29.8 W at 220 V |
| Power Consumption (full PoE) | 443.5 W at 110 V, 429.9 W at 220 V |
| Heat Dissipation | 1512.3 BTU/hr |
| Acoustic Noise | 34.8 dBA at 25 C |
| MTBF | 698,220 hours |
| Dimensions (W x D x H) | 445 x 345 x 44 mm (17.5 x 13.59 x 1.73 in) |
| Weight | 4.6 kg (10.14 lb) |
| Operating Temperature | 23 to 122 F (-5 to 50 C) |
| Storage Temperature | -13 to 158 F (-25 to 70 C) |
| Operating Humidity | 10% to 90% relative, noncondensing |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
