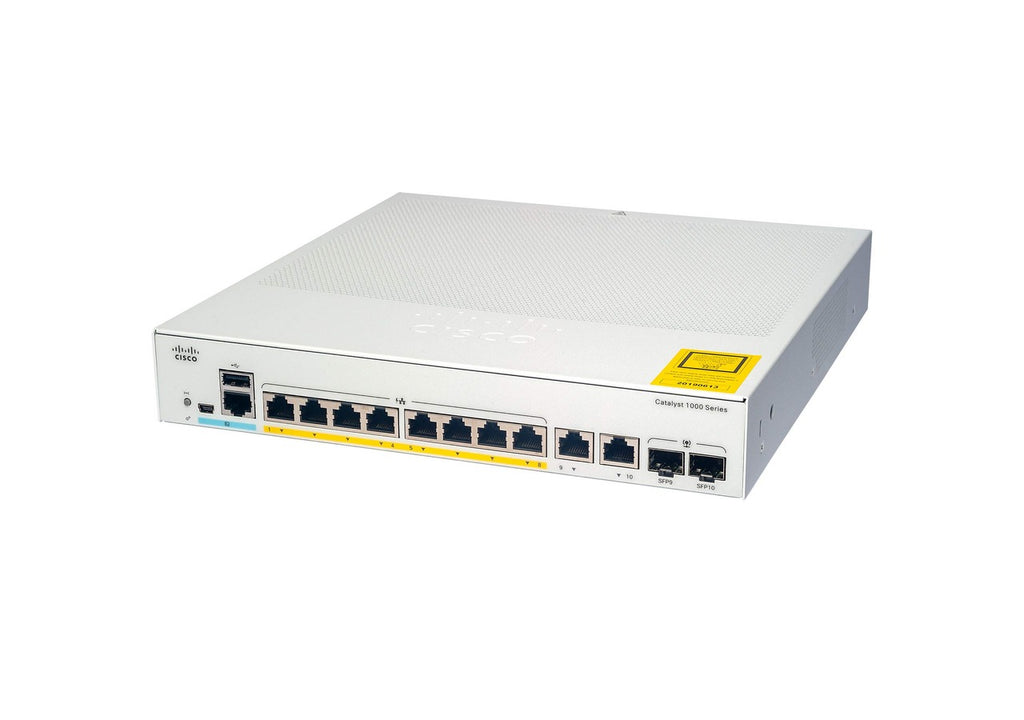

Cisco C1000-8T-2G-L Catalyst 1000 Series 8x1GB RJ45 Switch
Roll over image to zoom in Click on image to zoom
Cisco C1000-8T-2G-L Catalyst 1000 Series 8x1GB RJ45 Switch

Cisco C1000-8T-2G-L Catalyst 1000 Series 8x1GB RJ45 Switch

Condition:  refurbished     MPN:  C1000-8T-2G-L
Price:
$395.00
Stock:
In stock
View full product specifications

Overview

C1000-8T-2G-L Specification
Description 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks
Gigabit Ethernet ports 8
Uplink interfaces 2 SFP/ RJ-45 combo
PoE power budget \
Fanless Y
Dimensions (WxDxH in inches) 10.56 x 7.28 x 1.73
Console ports
RJ-45 Ethernet 1
USB mini-B 1
USB-A port for storage and Bluetooth console 1
Memory and processor
CPU ARM v7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Performance
Forwarding bandwidth 10 Gbps
Switching bandwidth 20 Gbps
Forwarding rate(64—byte L3 packets) 14.88 Mpps
Unicast MAC addresses 16000
IPv4 unicast direct routes 542
IPv4 unicast indirect routes 256
IPv6 unicast direct routes 414
IPv6 unicast indirect routes 128
IPv4 static routes 16
IPv6 static routes 16
IPv4 multicast routes and IGMP groups 1024
IPv6 multicast groups 1024
IPv4/MAC security ACEs 600
IPv6 security ACEs 600
Maximum active VLANs 256
VLAN IDs available 4094
Maximum STP instances 64
Maximum SPAN sessions 4
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
Dying Gasp Yes
MTBF in hours (data) 2,171,669
MTBF in hours (PoE) 1,786,412, 1,706,649 (External PS)
MTBF in hours (Full PoE) 1,706,649
Environmental
Operating temperature Seal level -5 to 50 deg C*
Up to 5,000ft (1500 m) -5 to 45 deg C
Upto 10,000 (3000 m) -5 to 40 deg C
Operating altitude 10,000 ft (3,000m)
Operating relative humidity 5% to 90% at 40C
Storage temperature -13 to 158F (-25 to 70C)
Storage altitude 15,000 ft (4500m)
Storage relative humidit 5% to 95% at 65C
*Note: 50C operation is supported for short term operation only; GLC-BX-D/U and CWDM optics cannot support 50C operation; Minimum ambient temperature for cold start is at 0C (32F)
Safety and compliance
Safety   UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011
EMC: Emissions   47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications TBD
Connectors and interfaces
Ethernet interfaces     * 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling * 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling * 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling * 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs   * Per-port status: link integrity, disabled, activity * System status: system
Console cables   * CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 * CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power   * Use the supplied AC power cord to connect the AC power connector to an AC power outlet * Models have external power supply

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
