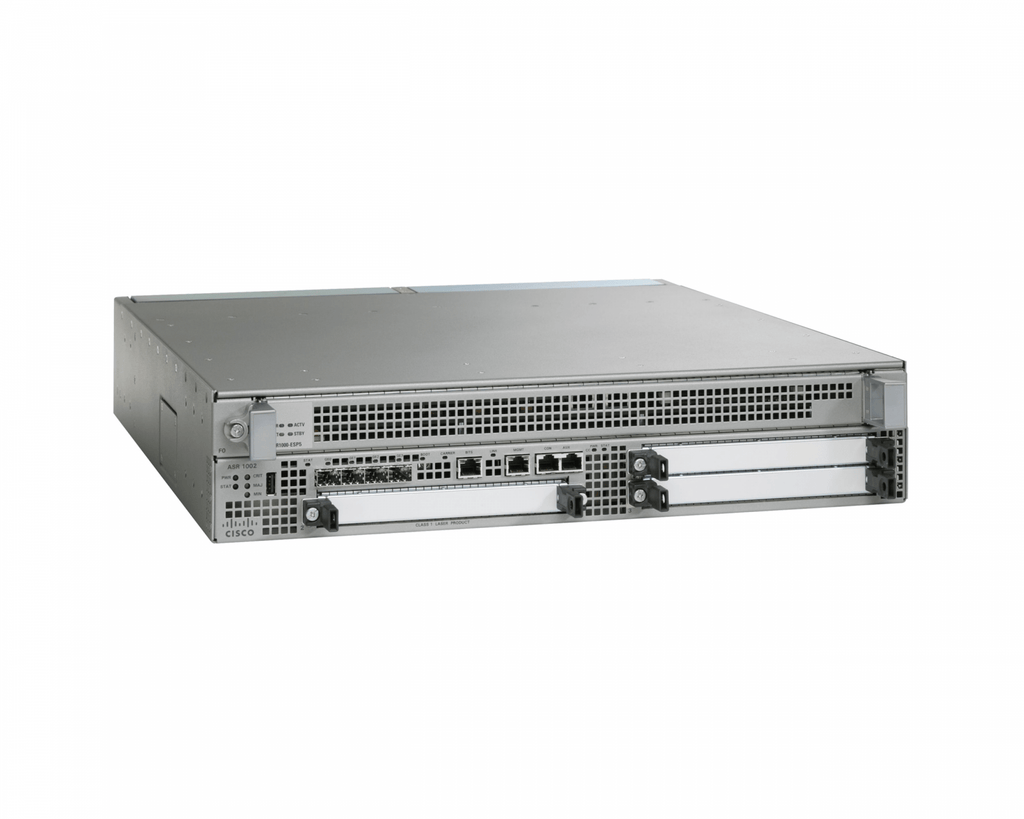

| Device Type | Router |
| Enclosure Type | Front to back airflow desktop rack-mountable - modular - 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Performance | Bandwidth: 5 Gbps ¦ Encryption throughput: 4 Gbps |
| Network / Transport Protocol | IPSec |
| Encryption Algorithm | AES |
| Features | Firewall protection VPN support |
| Compliant Standards | CISPR 24 EN55022 VCCI Class A ITE EN55024 CISPR 22 EN50082-1 CSA 22.2 No. 60950 EN 61000-6-1 AS/NZS 60950-1 AS/NZ 3548 Class A ICES-003 Class A FCC CFR47 Part 15 UL 60950-1 IEC 60950-1 EN 60950-1 EN 300 386 |
| RAM | 4 GB (installed) / 16 GB (max) |
| Flash Memory | 8 GB |
| Status Indicators | Power active standby status |
| Interfaces | Management: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ Management: 1 x auxiliary - RJ-45 ¦ 6 x Ethernet 1000 - SFP (mini-GBIC) ¦ USB: 2 x 4 pin USB Type A |
| Expansion Slots | 3 (total) / 3 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 3 (max) |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 0 (installed) / 2 (max) |
| OS Provided | Cisco IOS Universal |
| Width | 17.2 in |
| Depth | 18.1 in |
| Height | 3.5 in |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
