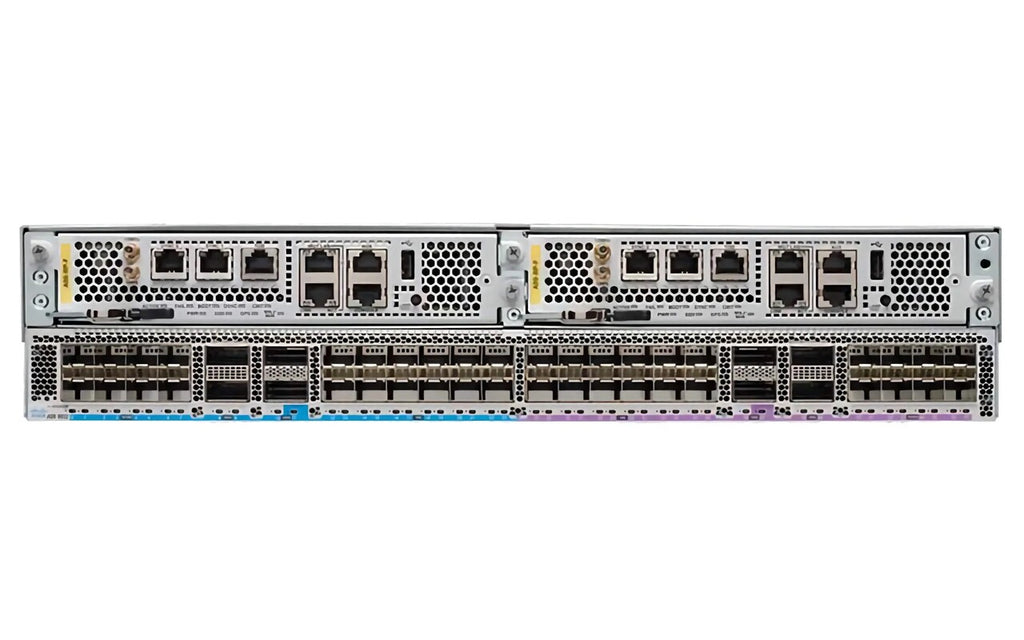

| Physical dimensions (includes ejector bracket/lever); (H x W x D); weight | ASR 9902 chassis (including 2 RPs, 2 PSUs, 3 FANs): H x W x D: 3.45 x 17.3 x 19 in.; 46.39 lb (87.63 x 439.74 x 482.60 mm; 21.04 kg) Note: Excluding ejector, the depth is 19 in./482.6 mm |
| Redundancy | Route processor redundancy Power supply redundancy Fan redundancy Software redundancy |
| Port density | - ASR 9902 chassis with integrated ports:
- 2 QSFP-DD ports capable of 10Gb, 40Gb, and 100Gb Ethernet
- 6 QSFP28 ports capable of 10Gb, 40Gb, and 100Gb Ethernet
- 16 SFP28 dual-rate ports capable of 25Gb and 10Gb Ethernet
- 24 SFP ports capable of 10Gb Ethernet (LAN) and WAN (OTN)
|
| RP CPU memory | SDRAM DDR4 – 32GB |
| Rack mounting | 2-post and 4-post 19-in. and 23-in. |
| Airflow | Front to back |
| Power | - 1.6 kW DC power module (up to 2 modules), redundancy: 1 1
- 1.6 kW AC power module (up to 2 modules), redundancy: 1 1 Note: Mixing of AC and DC modules is not supported.
|
| Ethernet | - 10-Gbps IEEE 802.3ae compliant
- 25-Gbps IEEE 802.3by and IEEE 802.3cc compliant
- 40/100-Gbps IEEE 802.3ba compliant
- 100 Gigabit Ethernet PHY monitoring
- IEEE 802.x flow control
- Full-duplex operation
- Per-port byte and packet counters for policy drops; oversubscription drops; Cyclic Redundancy Check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
|
| Performance | - 10-Gbps line-rate throughput per SFP port
- 25-Gbps line-rate throughput per SFP28 port
- 100-Gbps line-rate throughput per QSFP28 or QSFP-DD port
|
| Operating temperature | 41 to 104°F (5 to 40°C) Note: Limitations may apply when using high-power optics |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Storage temperature | –40 to 158°F (–40 to 70°C) |
| Storage (relative humidity) | 5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air |
| Operating altitude | 0 to 4000 m Note: Limitations may apply when using high-power optics |
| ETSI/EN standards | - The Cisco ASR 9902 Router is designed to meet:
- EN300 386: Telecommunications Network Equipment (EMC)
- ETSI 300 019 Storage Class 1.1
- ETSI 300 019 Transportation Class 2.3
- ETSI 300 019 Stationary Use Class 3.1
- EN55022: Information Technology Equipment (Emissions)
- EN55024: Information Technology Equipment (Immunity)
- EN50082-1/EN-61000-6-1: Generic Immunity Standard
|
| EMC standards | - The Cisco ASR 9902 Router is designed to meet:
- FCC Class A
- ICES 003 Class A
- AS/NZS 3548 Class A
- CISPR 22 (EN55022) Class A
- VCCI Class A
- BSMI Class A
- IEC/EN 61000-3-2: Power Line Harmonics
- IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
- EN50121-4 Railway Applications Part 4: Emission and immunity of the signaling and telecommunications apparatus
|
| Immunity | - The Cisco ASR 9902 Router is designed to meet:
- IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
- IEC/EN-61000-4-3: Radiated Immunity (10V/m)
- IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
- IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
- IEC/EN-61000-4-5: Signal Ports (1kV)
- IEC/EN-61000-4-5: Surge DC Port (1kV)
- IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
- IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
- IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
- EN 50121-4: Railway EMC
|
| Safety | - The Cisco ASR 9902 Router is designed to meet:
- UL/CSA/IEC/EN 60950-1
- IEC/EN 60825 Laser Safety
- ACA TS001
- AS/NZS 60950
- FDA: Code of Federal Regulations Laser Safety
|
| Network Equipment Building Systems (NEBS) | - The Cisco ASR 9902 Router is designed to meet:
- SR-3580: NEBS Criteria Levels (Level 3)
- GR-1089-CORE: NEBS EMC and Safety
- GR-63-CORE: NEBS Physical Protection
|
