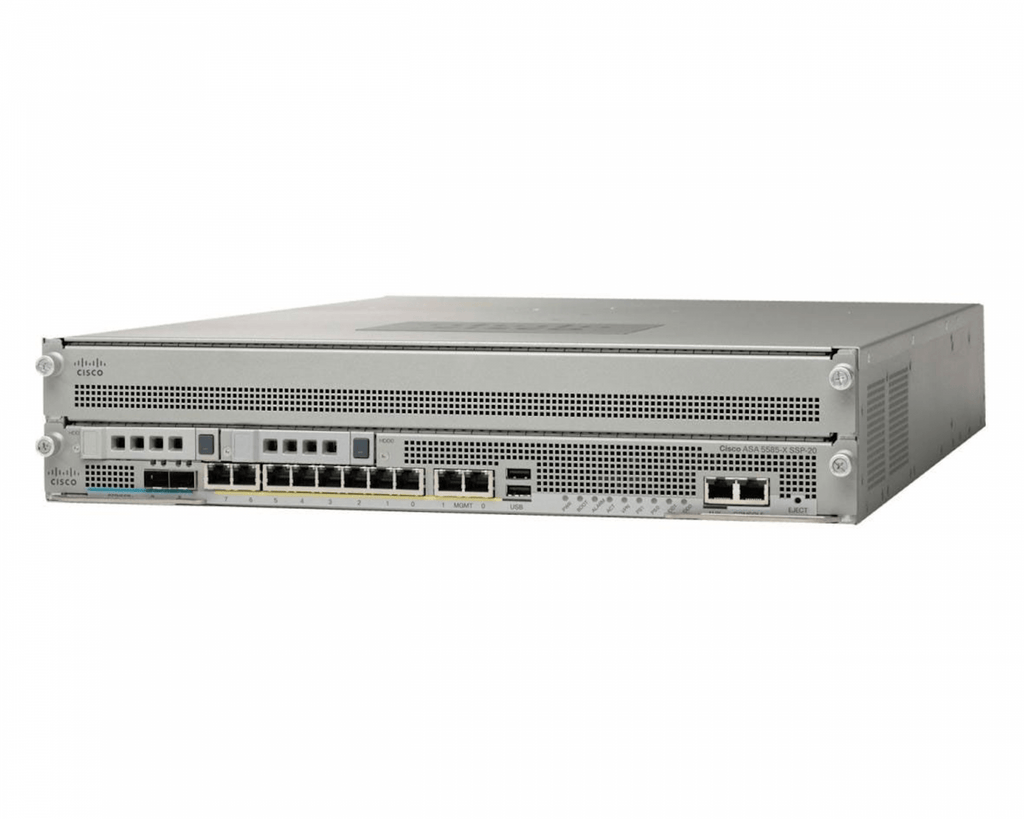

| Brand | Cisco |
| Model | ASA5585-S40-K9 |
| Series | Cisco ASA 5500-X Series Firewalls |
| Cisco Product Description | ASA 5585-X Chas with SSP40,6GE,4SFP+,2GE Mgt,1 AC,3DES/AES |
| Edition | Firewall Edition |
| Security Services Processor | SSP-40 |
| Typical Use Case | Data center |
| Stateful Inspection Throughput | Up to 20 Gbps (maximum, UDP traffic under ideal test conditions) |
| Multiprotocol Throughput | 10 Gbps |
| 3DES/AES IPsec VPN Throughput | Up to 3 Gbps |
| Packets per Second (64 byte) | 5,000,000 |
| Concurrent Connections | 4,000,000 |
| New Connections per Second | 200,000 |
| Users or Nodes | Unlimited |
| IPsec VPN Sessions | Up to 10,000 site-to-site and IKEv1 client sessions |
| Security Contexts | Up to 250 |
| Virtual Interfaces (VLANs) | 1024 |
| Authentication | Active Directory agent, LDAP, Kerberos, NTLM |
| Integrated Network Ports | 6 x 10/100/1000; 4 x 10 Gigabit Ethernet (SFP+) |
| Management Ports | 2 x 10/100/1000 |
| Interface Card Slots | 2 |
| I/O Modules | ASA5585-NM-8-10GE (8-port 10 Gigabit Ethernet); ASA5585-NM-4-10GE (4-port 10 Gigabit Ethernet); ASA5585-NM-20-1GE (20-port 1 Gigabit Ethernet) |
| Supported SFP Modules | GLC-SX-MMD, GLC-LH-SMD, GLC-T, GLC-EX-SMD, GLC-ZX-SMD |
| Supported SFP+ Modules | SFP-10G-SR, SFP-10G-LRM, SFP-10G-LR, SFP-10G-ER, SFP-H10GB-CU1M, SFP-H10GB-CU3M, SFP-H10GB-CU5M, SFP-H10GB-ACU7M, SFP-H10GB-ACU10M |
| USB Ports | 2 x USB 2.0 |
| Console Port | 1 x RJ-45, console and auxiliary |
| Memory | 12 GB (SSP-40) |
| System Flash | 2 GB (SSP-40) |
| High Availability | Active/Active and Active/Standby |
| Clustering | Up to 16 firewall modules in a single cluster |
| Scalability | VPN clustering and load balancing |
| Power Supplies | 1 AC |
| Redundant Power | Supported with a second power supply |
| AC Input | 100 to 240 VAC, 50 to 60 Hz |
| Maximum Current | 9 A (100 VAC), 4.5 A (200 VAC) |
| Steady State Power | 320 W (1 SSP only) |
| Maximum Peak Power | 370 W (1 SSP only) |
| Maximum Heat Dissipation | 3960 Btu/hr (100 VAC), 5450 Btu/hr (200 VAC) |
| Form Factor | 2RU, 19-inch rack-mountable |
| Rack Mountable | Yes |
| Dimensions (H x W x D) | 3.47 x 19 x 26.5 in (8.8 x 48.3 x 67.3 cm) |
| Weight | 50 lb (22.7 kg) with 1 SSP and a single power supply |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Operating Relative Humidity | 10 to 90 percent, noncondensing |
| Operating Altitude | 0 to 10,000 ft (3050 m) |
| Acoustic Noise | 65 dBA maximum |
| Nonoperating Temperature | -40 to 158 F (-40 to 70 C) |
| Nonoperating Relative Humidity | 5 to 95 percent, noncondensing |
| Nonoperating Altitude | 0 to 30,000 ft (9144 m) |
| Related Models | ASA5585-S40-2A-K9 (dual AC power supplies); ASA5585-S40-K8 (DES encryption) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
