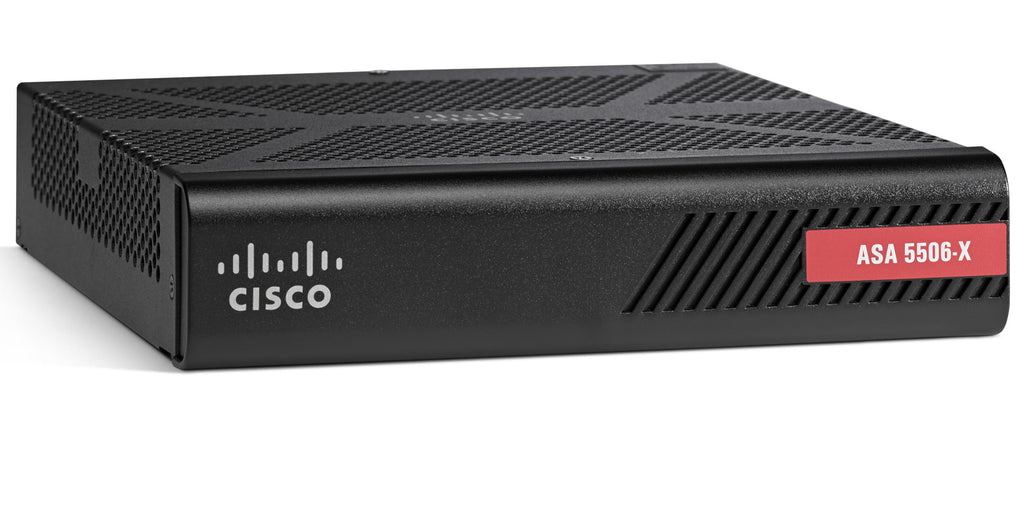

| ASA5506-FTD-K9 Specification | |
|---|---|
| Product Number | ASA5506-FTD-K9 |
| Product Description | ASA 5506-X with Firepower Threat Defense. 8GE. AC |
| Throughput: Application Control (AVC) | 250 Mbps |
| Throughput: Application Control (AVC) and IPS | 125 Mbps |
| Maximum concurrent sessions | 20,000; 50000 |
| Maximum New Connections per second | 5,000 |
| Supported applications | More than 3,000 |
| URL categories | 80 |
| Number of URLs categorized | More than 280 million |
| Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
| On-Device Management | ASDM (version 7.3 or higher required) |
| Feature | Cisco ASA 5506-X w/ FirePOWER Services |
| Stateful inspection throughput (maximum1) | 750 Mbps |
| Stateful inspection throughput (multiprotocol2) | 300 Mbps |
| Triple Data Encryption Standard/Advanced Encryption Standard (3DES/AES) VPN throughput3 | 100 Mbps |
| Users/nodes | Unlimited |
| IPsec site-to-site VPN peers | 10; 50 |
| Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5 | 50 |
| Virtual interfaces (VLANs) | 5; 30 |
| Security contexts5(included; maximum) | N/A |
| High availability | Requires Security Plus License; Active/Standby |
| Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) | N/A |
| Expansion slot | N/A |
| User-accessible Flash slot | No |
| USB 2.0 ports | USB port type ‘A’, High Speed 2.0 |
| Integrated I/O | 8 x 1 Gigabit Ethernet (GE) |
| Expansion I/O | N/A |
| Dedicated management port | Yes (To be shared with FirePOWER Services), 10/100/1000 |
| Serial ports | 1 RJ-45 and Mini USB console |
| Solid-state drive | 50 GB mSata |
| Memory | 4 GB |
| System flash | 8 GB |
| System bus | Multibus architecture |
| Temperature | 32 to 104°F (0 to 40 °C) |
| Relative humidity | 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 10,000 ft (3048 m) |
| Acousticnoise | Fanless0 dBA |
| Temperature | -13 to 158ºF (-25 to 70ºC) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
| AC range line voltage | External, 90 to 240 volts alternating current (VAC) |
| AC normal line voltage | 90 to 240 VAC |
| AC current | N/A |
| AC frequency | 50/60 Hz |
| Dual-power supplies | None |
| DC domestic line voltage | N/A |
| DC international line voltage | N/A |
| DC current | N/A |
| Steady state | 12V @2.5A |
| Maximum peak | 12V @ 5A |
| Maximum heat dissipation | 103 British thermal units (Btu)/hr |
| Form factor | Desktop, rack mountable |
| Dimensions(H x W x D) | 1.72 x 7.871 x 9.23 in.(4.369 x 19.992 x 23.444 cm) |
| Weight (with AC power supply) | 4 lb (1.82 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
