| Manufacturer | Cisco |

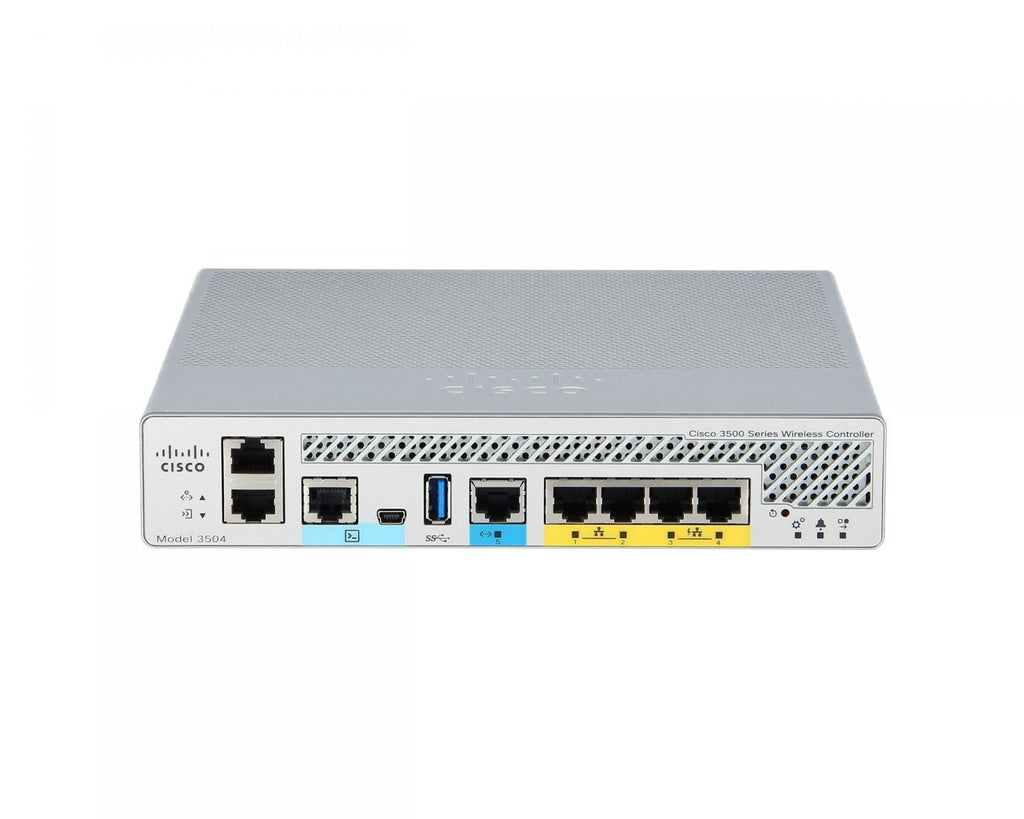

| Product Line | 3500 Series Wireless Controllers |
| Product Type | Wireless LAN Controller |
| Access Point Capacity | Up To 150 |
| Client Capacity | Up To 3,000 |
| Throughput | Up To 4 Gbps |
| Ethernet Interfaces | 1x Multigigabit (Up To 5 Gbps) + 4x Gigabit Ethernet (RJ-45) |
| Service Port | 1x Gigabit Ethernet (RJ-45) |
| Redundancy Port | 1x Gigabit Ethernet (RJ-45) |
| Console Ports | 1x RJ-45 Serial, 1x Mini-B USB |
| USB | 1x USB 3.0 |
| PoE | 2 Ports Support Direct Access Point Power |
| VLANs | Up To 4,096 |
| Storage | Solid-State, No Moving Parts |
| Cooling | Fanless Up To 86°F (30°C) Ambient; Fans Engage Only Under Certain Conditions |
| Interoperability | Cisco 5520 and 8540 Wireless Controllers |
| Deployment Modes | Centralized, FlexConnect, Mesh (Bridge) |
| Note | Controller Contains No Radio Function Itself — Manages Connected Access Points |
| Power Input | 100-240VAC, 50/60Hz |
| Heat Dissipation (Without PoE) | 47W, 160 BTU/hr |
| Heat Dissipation (With PoE) | 98W, 335 BTU/hr |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Humidity | 5 to 95% Non-Condensing (Operating) |
| Dimensions (H x W x D) | 1.73 x 9.5 x 8.5 in |
| Weight | 4.4 lb |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
