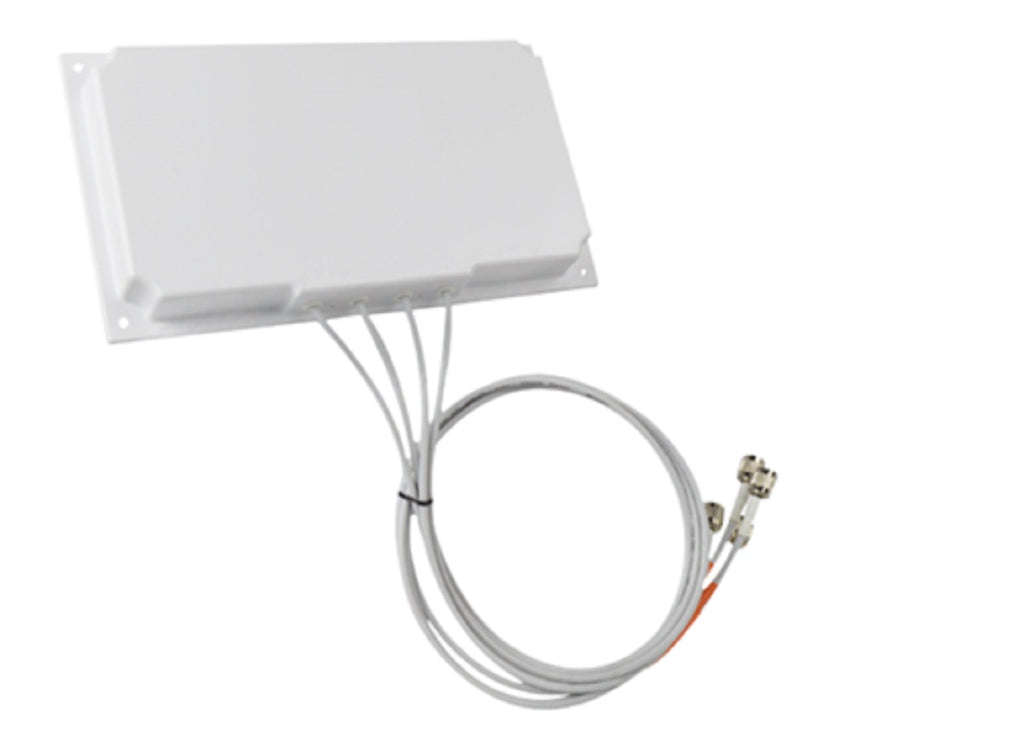

Cisco AIR-ANT2566D4M-R Aironet Dual Band Directional Array Antenna

Roll over image to zoom in Click on image to zoom

Cisco AIR-ANT2566D4M-R

The Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R), and provides electrical specifications and mounting instructions.

The AIR-ANT2566D4M-R antenna is a four-port polarization-diverse array that operates over the 2.4 GHz and 5 GHz Wi-Fi bands. It ships with an articulating mount for use on flat surfaces and masts, and is adjustable in both horizontal and vertical planes. The radome can be painted using commonly available non-conductive spray paints, such as Krylon or Rust-Oleum.

The antenna is designed for use in indoor and outdoor environments with an approved Cisco Aironet access point that requires four dual-band antennas.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Antenna Type	Dual-Band Polarization-Diverse Directional Array
Operating Frequency Ranges	2.4–2.5 GHz	5.15–5.925 GHz
Nominal Input Impedance	50 Ohms	50 Ohms
Voltage Standing Wave Ratio (VSWR)	2:1	2:1
Peak Gain	6 dBi	6 dBi
Polarization (Ports A & C)	Vertical	Vertical
Polarization (Ports B & D)	Horizontal	Horizontal
Nominal Elevation Plane 3-dB Beamwidth	65°	60°
Nominal Azimuth Plane 3-dB Beamwidth	65°	55°
Front-to-Back Ratio	> 12 dB	> 20 dB
Port-to-Port Isolation	> 30 dB	> 30 dB
> or = to 30º Elevation Peak Gain	3 dBi
Connector Type	RP-TNC (with coupling ring)
Cable Length	3 ft
Length	10 in. (25.4 cm)
Width	10 in. (25.4 cm)
Height	1.61 in. (4.1 cm)
Weight	2.5 lbs. (1.13 kg)
Water/Foreign Body Ingress	IP-67
Operational Wind	100 MPH
Operating Temperature Range	-40° C to 70° C
Storage Temperature Range	-40° C to 85° C

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
