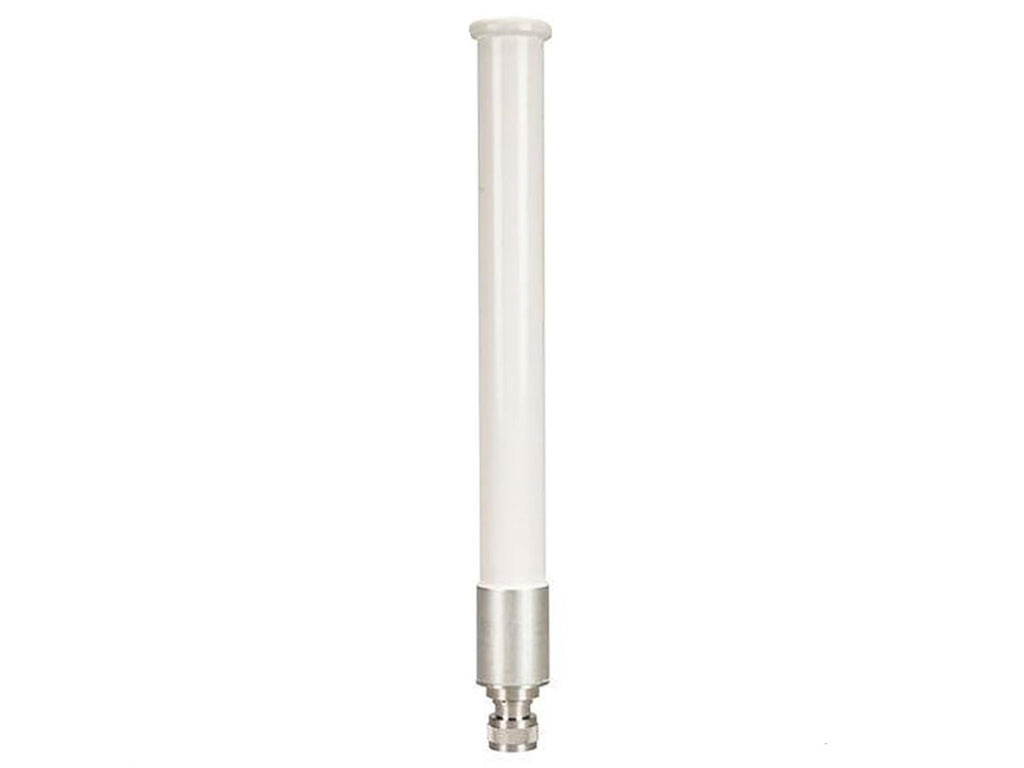

Cisco AIR-ANT2547V-N Aironet Dual Band Omnidirectional Antenna
Roll over image to zoom in Click on image to zoom
Cisco AIR-ANT2547V-N Aironet Dual Band Omnidirectional Antenna

Cisco AIR-ANT2547V-N Aironet Dual Band Omnidirectional Antenna

Condition:  refurbished     MPN:  AIR-ANT2547V-N
Price:
$149.00
Stock:
In stock
View full product specifications

Overview

Antenna type Omni-directional colinear array
Operating frequency range 2400–2483 MHz; 5150–5875 MHz
2:1 VSWR bandwidth 2400–2483 MHz; 5150–5875 MHz
Nominal input impedance 50 Ohms
Gain (2400–2483 MHz) 4-dBi
Gain (5250–5875 MHz) 7-dBi
Polarization Linear
E-plane 3-dB beamwidth 2.4 GHz: 30° for5 GHz 14°
H-plane 3-dB bandwidth Omni-directional
Length 11.1 in. (28.2 cm)
Diameter 1.25 in. (3.17 cm)
Weight 6.0 oz. (170.0 g)
Connector type N-Male
Mounting To mast mount the antenna you must purchase the U-bolt bracket from a third party
Operating temperature -40–185°F (-40–85°C)
Water/Foreign Body Ingress IP66, IP67
Wind rating 100 mph (161 kph) operational165 mph (265 kph) survival

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
