| Brand | Cisco |
| Model | A9K-RSP880-TR |

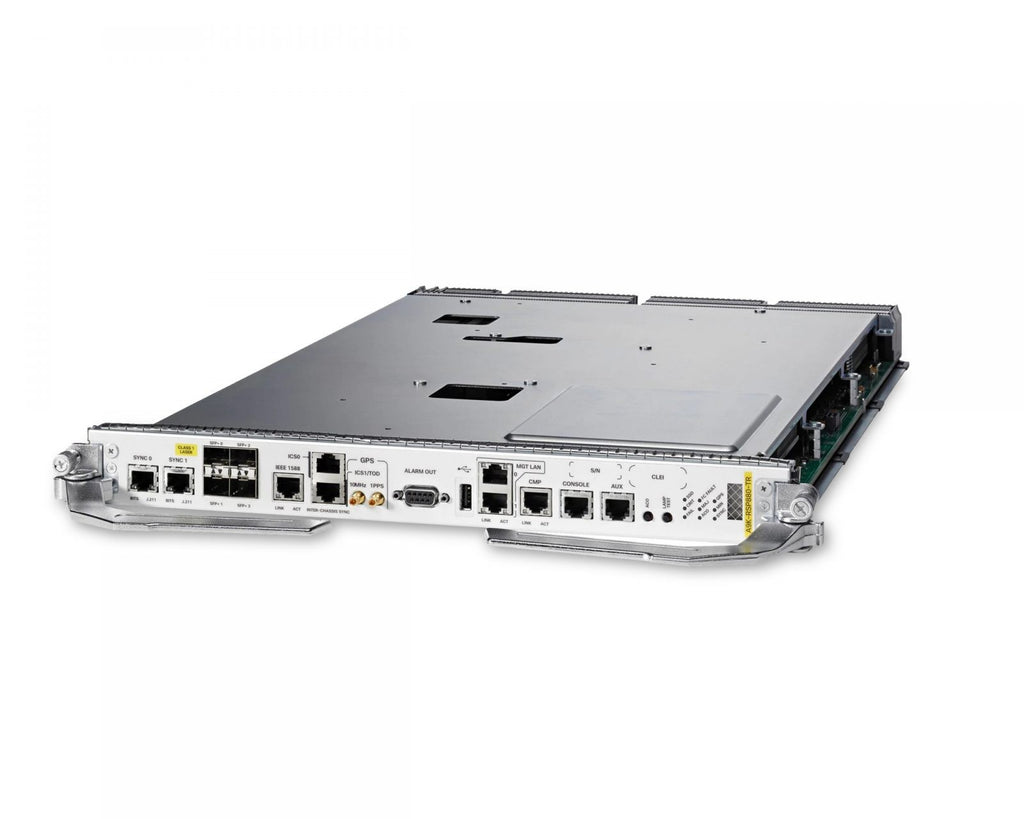

| Description | ASR 9000 Route Switch Processor 880 for Packet Transport 16G |
| CPU | 8 cores, 1.9 GHz |
| DRAM | 16 GB ECC-protected |
| Solid-State Disk | Two 32 GB SSDs |
| Embedded USB | 8 GB |
| Switch Fabric Bandwidth (Nonredundant) | 880 Gbps (ASR 9904, ASR 9006, ASR 9010) |
| Switch Fabric Bandwidth (Redundant) | 440 Gbps (ASR 9904, ASR 9006, ASR 9010) |
| Supported Chassis | ASR 9904, ASR 9006, ASR 9010 |
| Redundancy | 1+1 route switch processor redundancy, both of the same kind |
| Slot Occupancy | 1 slot (2 slots in a redundant pair) |
| Management Ports | Two 100/1000BASE-T RJ-45 LAN |
| Console Port | 1 |
| Auxiliary Port | 1 |
| USB Port | 1 front-panel external USB 2.0 Type A |
| Timing | Two independent clock source connections |
| IEEE 1588 Port | Copper 10/100 Mbps RJ-45 Ethernet |
| GPS Interfaces | ToD (RS-422 and RS-232), 1-pps, 10-MHz in/out |
| Alarm Outputs | Critical, major and minor |
| Dimensions (H x W x D) | 1.81 x 16.87 x 24.74 in (4.60 x 42.85 x 62.89 cm) |
| Weight | 17.8 lb (8.07 kg) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Operating Humidity | 10 to 85%, noncondensing |
| Operating Altitude | -60 to 4000 m |
| Companion Variant | A9K-RSP880-SE (Service Edge, 32 GB DRAM) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
