| Brand | Cisco |
| Model | A9K-RSP5-SE |
| Series | ASR 9000 Series |

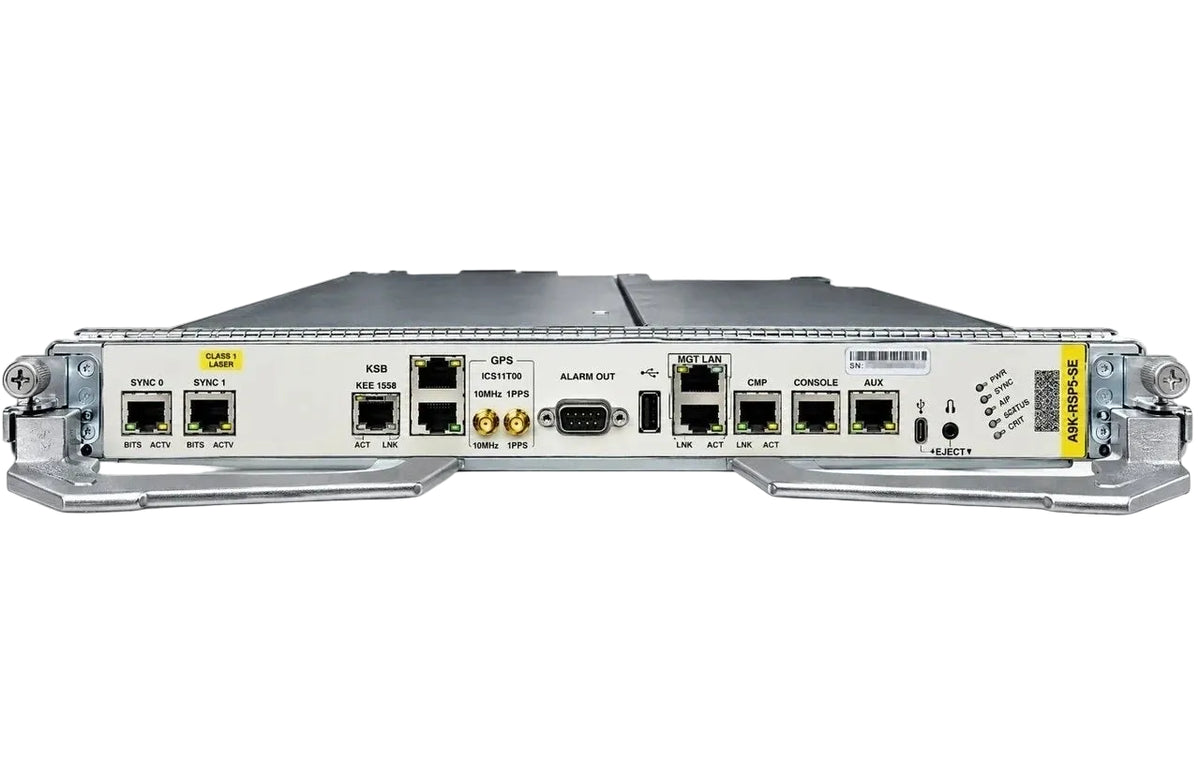

| Type | Route Switch Processor 5 (RSP5), Service Edge |
| Processor | 8 cores, 1.9 GHz |
| DRAM | 40 GB ECC-protected |
| Solid-State Drives | 2 x 128 GB |
| Embedded USB | 8 GB |
| USB Port | 1 x USB 2.0 Type A |
| Switch Fabric Control | Up to seven switch fabrics (two on the RSP, five on dedicated switch fabric cards) |
| Supported Port Speeds | 1, 10, 25, 40, 100 and 400 Gbps |
| Switching Capacity, Non-Redundant per Router | ASR 9910: 33.6T; ASR 9906: 16.8T; ASR 9010: 17.6T; ASR 9006: 8.8T; ASR 9904: 8.4T |
| Switching Capacity, N+1 per Router | ASR 9910: 28.8T; ASR 9906: 14.4T; ASR 9010: 8.8T; ASR 9006: 4.4T; ASR 9904: 3.6T |
| Switching Capacity, Non-Redundant per Line Card Slot | ASR 9910: 4.2T; ASR 9906: 4.2T; ASR 9010: 2.2T; ASR 9006: 2.2T; ASR 9904: 4.2T |
| Switching Capacity, N+1 per Line Card Slot | ASR 9910: 3.6T; ASR 9906: 3.6T; ASR 9010: 1.1T; ASR 9006: 1.1T; ASR 9904: 1.8T |
| Bidirectional Capacity per RSP5 to Each Line Card Slot | ASR 9910: 600G; ASR 9906: 600G; ASR 9010: 1.1T; ASR 9006: 1.1T; ASR 9904: 1.8T |
| Supported Chassis | ASR 9904, ASR 9006, ASR 9010, ASR 9906, ASR 9910 |
| Slots Occupied | 1 (2 for a redundant pair) |
| Redundancy | 1+1 route switch processor redundancy (both must be the same kind); software redundancy; no single point of failure |
| Timing | Two independent clock source connections (BITS and SSU DTI); IEEE 1588 support |
| GPS | ToD (RS-422 and RS-232); 1-pps (RS-422 or 1.0/2.3 50-ohm RF connector); 10-MHz in/out (1.0/2.3 50-ohm RF connector) |
| Management Ports | 2 x 100/1000BASE-T (RJ-45) LAN; 1 x console; 1 x auxiliary |
| Alarm Outputs | Critical (CR), Major (MJ) and Minor (MN) |
| LEDs | Alarm Cutoff (ACO) and lamp test; system synchronization (SYNC); GPS; fabric card fault; SSD |
| Minimum Software | Cisco IOS XR 6.5.15 or later |
| Compatible Line Cards, 5th Generation | A99-4T-FC, A99-10X400GE-X-SE, A99-10X400GE-X-TR, A99-32HG-FC, A99-32X100GE-X-SE, A99-32X100GE-X-TR, A9K-20HG-FLEX-FC, A9K-20HG-FLEX-SE, A9K-20HG-FLEX-TR, A9K-8HG-FLEX-FC, A9K-8HG-FLEX-SE, A9K-8HG-FLEX-TR, A99-4HG-FLEX-FC, A99-4HG-FLEX-SE, A99-4HG-FLEX-TR, A9K-4HG-FLEX-FC, A9K-4HG-FLEX-SE, A9K-4HG-FLEX-TR, A99-4HG-FLEX-X-FC, A99-4HG-FLEX-X-SE, A9K-4HG-FLEX-X-FC, A9K-4HG-FLEX-X-SE |
| Compatible Line Cards, 4th Generation | A99-32X100GE-FC, A99-32X100GE-TR, A99-32X100GE-CM, A9K-16X100GE-FC, A9K-16X100GE-TR, A9K-16X100GE-CM, A99-16X100GE-X-FC, A99-16X100GE-X-SE |
| Compatible Line Cards, 3rd Generation | A99-12X100GE-FC, A99-12X100GE, A99-12X100GE-CM, A99-8X100GE-FC, A99-8X100GE-SE, A99-8X100GE-TR, A99-8X100GE-CM, A9K-8X100GE-FC, A9K-8X100GE-SE, A9K-8X100GE-TR, A9K-8X100GE-CM, A9K-8X100G-LB-SE, A9K-8X100G-LB-TR, A9K-4X100GE-FC, A9K-4X100GE-SE, A9K-4X100GE-TR, A9K-400GE-LAN-FC, A9K-4X100GE, A99-48X10GE-1G-FC, A99-48X10GE-1G-TR, A99-48X10GE-1G-SE, A9K-48X10GE-1G-FC, A9K-48X10GE-1G-TR, A9K-48X10GE-1G-SE, A9K-48X10GE-1G-CM, A9K-24X10GE-1G-FC, A9K-24X10GE-1G-TR, A9K-24X10GE-1G-SE, A9K-24X10GE-1G-CM, A9K-MOD400-FC, A9K-MOD400-SE, A9K-MOD400-TR, A9K-MOD400-CM, A9K-MOD200-FC, A9K-MOD200-SE, A9K-MOD200-TR, A9K-400G-DWDM-TR |
| Related Models (sold separately) | A9K-RSP5-TR (Packet Transport, 24 GB or 16 GB DRAM); spare A9K-RSP5-SE= |
| Operating Temperature | 0 to 40 C (32 to 104 F) nominal; -5 to 55 C (23 to 131 F) short-term |
| Operating Humidity | 5% to 90% relative humidity |
| Storage Temperature | -40 to 70 C (-40 to 158 F) |
| Storage Humidity | 5% to 93% relative humidity |
| Operating Altitude | -60 to 4000 m (up to 2000 m conforms to IEC/EN/UL/CSA 60950 requirements) |
| Dimensions (H x W x D) | 1.63 x 15.86 x 24.62 in (4.10 x 40.28 x 62.53 cm), with ejector bracket and lever |
| Weight | 20.39 lb (9.25 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
