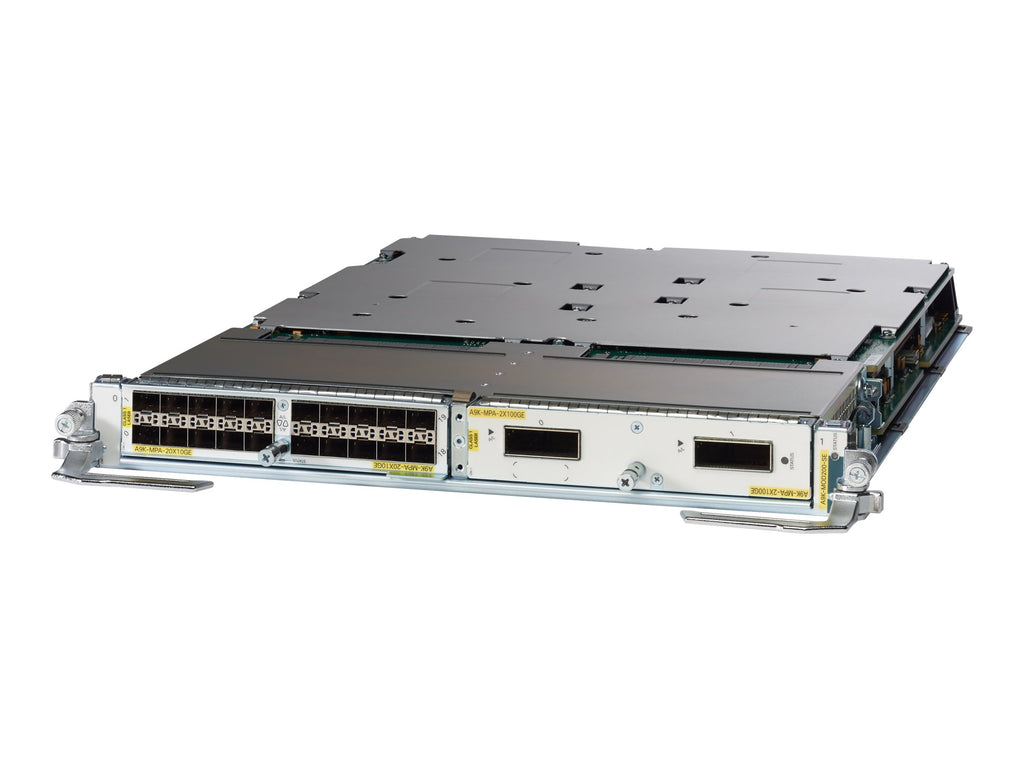

CISCO A9K-MOD200-SE 200G ASR 9000 MODULAR LINE CARD

The Cisco A9K-MOD200-SE Line Card provides customers with a highly flexible solution. It supports multiple combinations of Ethernet ports, and gives network operators the flexibility to choose the ideal port density, speed, and optic based on their network requirements.

The Cisco A9K-MOD200-SE 200G Service Edge modular line card allows for the flexible expansion of Cisco ASR 9000 series routers by providing two slots for ASR 9000 MPA cards. The A9K-MOD200 expansion card provides support for MPA totaling up to 200G of bandwidth in a variety of interface combinations.

For example, the A9K-MOD200 can support two 1-port 100G Ethernet adapters, a single 2-port 100 Gigabit Ethernet MPA, or a single 20-port 10G Ethernet modular port adapter.

The Service Edge optimized variant of the A9K-MOD200 (part number A9K-MOD200-SE) is optimized for customer deployments requiring advanced QoS capabilities. For applications requiring more basic QoS, the A9K-MOD200-TR transport optimized linecard is also available. Both of these card types also come in 400G editions, which can help increase bandwidth and port density when the requirements of your install call for more than 200G per slot.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Device Type	Expansion module
Form Factor	Plug-in module
Connectivity Technology	Wired
Features	Modular design MPLS support full duplex mode Quality of Service (QoS) NetFlow Virtual Circuit Connectivity Verification (VCCV) MACsec support
Compliant Standards	IEEE 802.3 IEEE 802.3ah IEEE 802.1ag IEEE 802.1ae ITU-T G.709 ITU-T Y.1731
Expansion Slots	2 (total) / 2 (free) x expansion slot
Compliant Standards	FCC Class A certified CISPR 22 Class A EN 61000-3-2 EN55022 IEC 61000-3-2 IEC 61000-3-3 IEC 61000-4-11 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 EN 61000-3-3 EN55024 EN50082-1 EN 61000-6-1 ACA TS001 EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 ICES-003 Class A EN 61000-4-5 EN 61000-4-11 EN 61000-4-8 EN 60825 FDA AS/NZS 3548 Class A BSMI Class A AS/NZS 60950 IEC 60825 VCCI Class A ETSI 300 019 IEC/UL/CSA/EN 60950-1 EN 300 386
OS Required	Cisco IOS XR 6.0.1
Width	1.7 in
Depth	20.5 in
Height	14 in
Weight	19 lbs

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
