| Description | Specification | |
| Chassis compatibility | ● Cisco ASR 9904, ASR 9006, ASR 9010, ASR 9912, and ASR 9922 routers | |

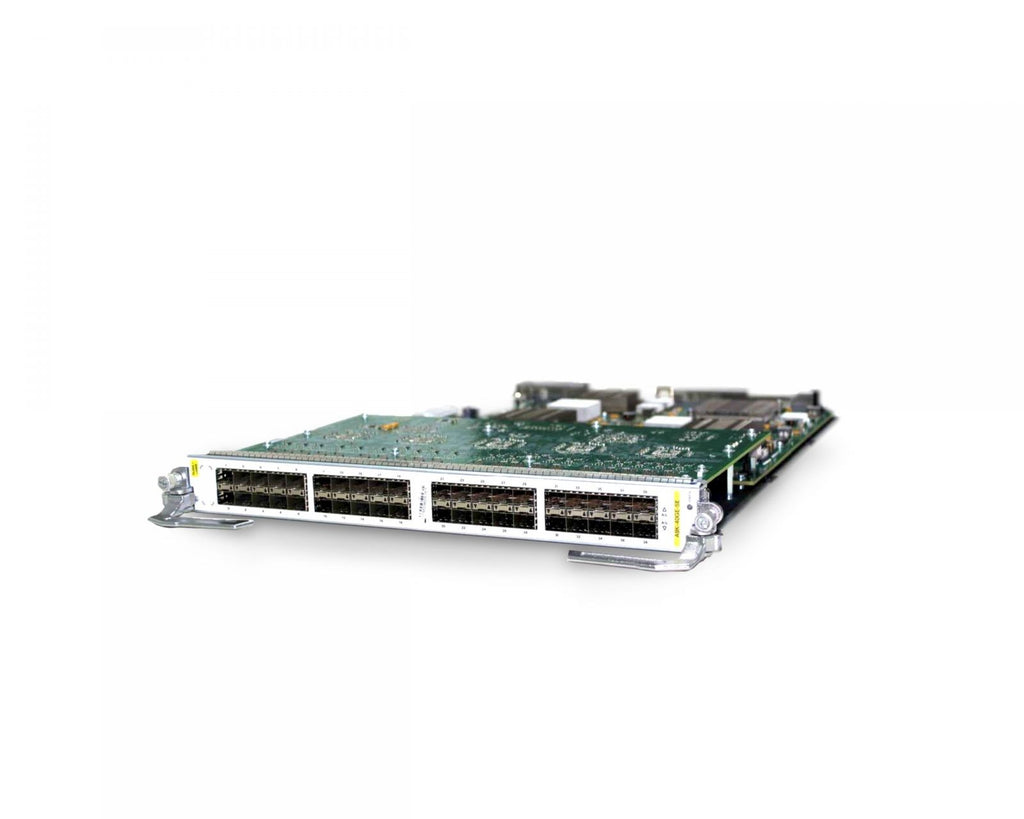

| Port density | ● 40GE - 40 ports of 1 Gigabit Ethernet per line card | |
| ● 4T16GE - 4 ports of 10 Gigabit Ethernet and 16 ports of 1 Gigabit Ethernet per line card; comes in a default 40 Gigabit capacity combo mode of 2 x 10 Gigabit Ethernet 16 x 1 Gigabit Ethernet, which can be changed to 4 x 10 Gigabit Ethernet through the command-line interface (CLI) and upgraded to full capacity of 4 x 10 Gigabit Ethernet 16 x 1 Gigabit Ethernet through a license | ||
| Ethernet | ● 1- and 10-Gbps IEEE 802.3 compliant ● 1 and 10 Gigabit Ethernet PHY monitoring ● IEEE 802.x flow control ● Full-duplex operation ● Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets | |
| Performance | 1- and 10-Gbps line-rate throughput per port | |
| Options | Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card | |
| Reliability and availability | Line card online insertion and removal (OIR) support without system impact | |
| Network Equipment Building Standards (NEBS) | Cisco ASR 9000 Series Routers are designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS EMC and Safety ● GR-63-CORE: NEBS Physical Protection | |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) | |
| Operating temperature (short-term)1 | 23 to 131ºF (-5 to 55ºC) | |
| Operating humidity (nominal) relative humidity | 10 to 85 percent | |
| Storage temperature | -40 to 158ºF (-40 to 70ºC) | |
| Storage relative humidity | 5 to 95 percent Note: Not to exceed 0.024 kg of water per kg of dry air | |
| Operating altitude | -60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements) | |
| Physical dimensions (H x W x D); weight | 14 x 1.72 x 20.5 in.; 14 lb (35.56 x 4.37 x 52.07 cm; 5.53 kg) | |
| ETSI standards | Cisco ASR 9000 Series Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard | |
| EMC standards | Cisco ASR 9000 Series Routers are designed to meet: ● FCC Class A ● ICES 003 Class A ● AS/NZS 3548 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-2: Power Line Harmonics ● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker | |
| Immunity | Cisco ASR 9000 Series Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations | |
| Safety of the Cisco ASR 9000 Series 40 and 56 Gigabit Ethernet Line Cards | Cisco ASR 9000 Series Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA: Code of Federal Regulations Laser Safety |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
