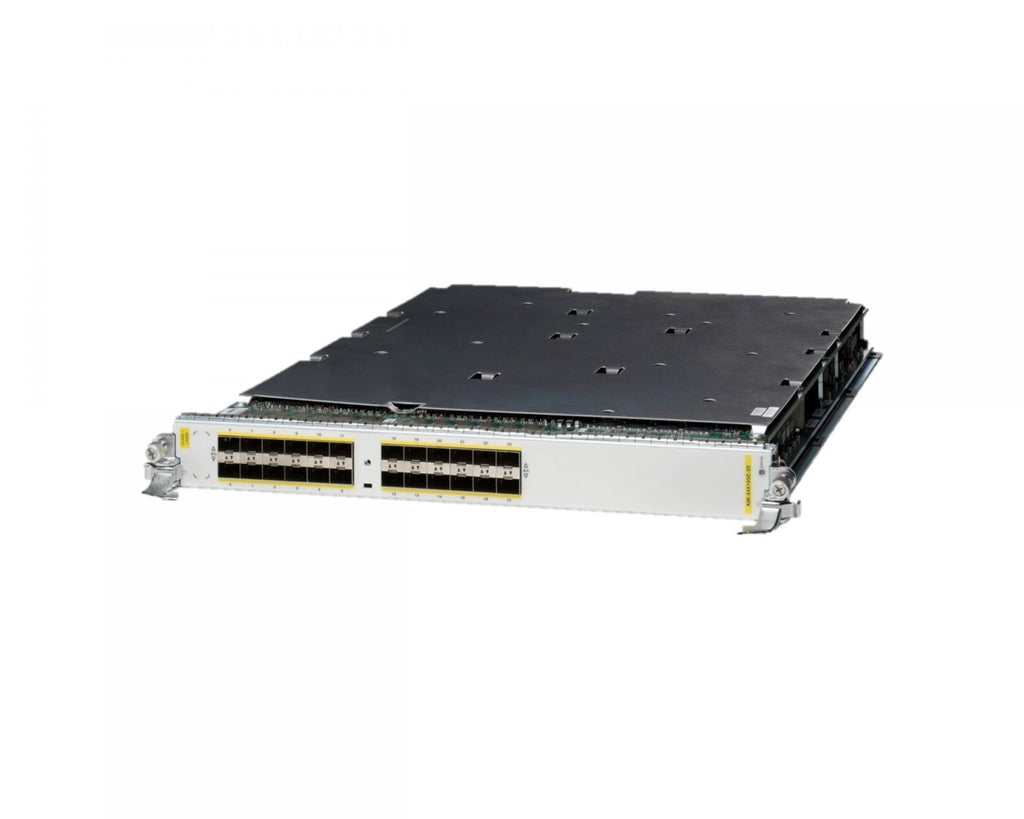

| Ports | 24 x 10GE SFP+ — optics not included |
| Throughput | 10 Gbps line-rate per port |
| Network Processor | Ezchip Typhoon NPU — 60 Gbps / ~45 Mpps |
| Optimization Variant | Service Edge (-SE) — enhanced HQoS; mixable with -TR cards in same chassis |
| SFP+ Interface Types | SR, LR, ER, ZR, CWDM, ITU-T DWDM 10GE |
| Services | IP, MPLS, L2VPN, L3VPN, Carrier Ethernet — simultaneous Layer 2 and Layer 3 |
| QoS | Hierarchical QoS (HQoS) — up to 512,000 queues |
| Scale — Service Interfaces | Up to 32,000 Layer 2 and Layer 3 interfaces |
| Scale — IPv4 Routes | Up to 1.3 million |
| Scale — MAC Addresses | Up to 1 million |
| Scale — VPNs | Up to 32,000 L2VPNs / 4,000 L3VPNs |
| OAM | NetFlow, 802.1ag, 802.3ah, Y.1731, IP SLA, VCCV, BFD, VidMon |
| Timing | Synchronous Ethernet (SyncE), IEEE 1588v2 PTP, Stratum-3 backplane timing |
| Optional Licenses | Infrastructure VRF (up to 8 VRFs), Advanced IP (full-scale VRFs), G.709/Advanced FEC, Advanced Video (VidMon) |
| Hot-Swap | Yes — OIR without system impact |
| Compatible Chassis | ASR 9006, 9010, 9922 (6-slot, 10-slot, 22-slot) |
| Operating System | Cisco IOS XR |
| Standards | IEEE 802.3, IEEE 802.1ag, IEEE 802.3ah, ITU Y.1731, IEEE 1588-2008, ITU-T G.709 |
| NEBS | Level 3 (SR-3580, GR-1089-CORE, GR-63-CORE) |
| Operating Temperature (nominal) | 5 to 40°C |
| Operating Temperature (short-term) | -5 to 55°C |
| Operating Humidity | 10 to 85% (relative, nominal) |
| Operating Altitude | Up to 4,000 m |
| Dimensions | 1.72 x 14.00 x 20.50 in. |
| Weight | 14.00 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
