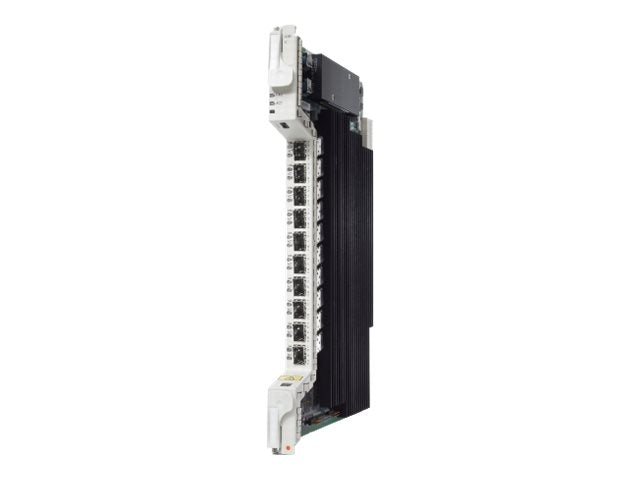

CISCO 15454-CE-MR-10 10-PORT MULTIRATE ETHERNET CARD

Roll over image to zoom in Click on image to zoom

Cisco 15454-CE-MR-10 CE-Series Ethernet Card

Through its portfolio of Ethernet service cards, the Cisco 15454-CE-MR-10 has enabled service providers and enterprises to effectively and efficiently expand their network capability from transporting only time-division multiplexing (TDM) services to delivering multiple services over a single, converged architecture and eliminating the need for multiple overlay infrastructures.

The CE-1000-4 card carries any Layer 3 protocol that can be encapsulated and transported over Ethernet, such as IP or IPX. The Ethernet frame from the data network is transmitted into the gigabit interface converter (GBIC) on a CE-1000-4 card. The CE-1000-4 card transparently maps Ethernet frames into the SONET/SDH payload using packet-over-SONET/SDH (POS) encapsulation. The POS circuit with encapsulated Ethernet is then multiplexed onto an optical card like any other SONET synchronous transport signal (STS) or SDH synchronous transport mode (STM). When the payload reaches the destination node, the process is reversed and the data is transmitted from the GBIC in the destination CE-1000-4 card onto the Ethernet of the data network. The CE-1000-4 card has four front-end Ethernet ports which use standard GBIC connectors for Gigabit Ethernet. Ethernet Ports 1 through 4 each map to a POS port with a corresponding number. These Ethernet ports can be daisy chained. The CE-1000-4 supports IEEE 802.3x flow control and allows you to enable symmetric flow control, enable asymmetric flow control, or to disable flow control. The configuration is done in CTC at the port level.

Customer Support

We are committed to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit: https://netmode.com/warranty-support/

Device Type	Expansion module
Form Factor	Plug-in module
Ports	Gigabit SFP x 10
Connectivity Technology	Wired
Cabling Type	Fiber optic
Data Link Protocol	SONET/SDH
Data Transfer Rate	1 Gbps
Capacity	Jumbo frame size: 9600
Remote Management Protocol	SNMP RMON
Features	Flow control full duplex capability VLAN support VLAN Trunking Protocol (VTP) Cisco Discovery Protocol
Compliant Standards	IEEE 802.1Q IEEE 802.1p IEEE 802.3x IEEE 802.1x
Interfaces	10 x 1000Base-T - SFP (mini-GBIC)
Compliant Standards	NEBS level 3 CISPR 24 EN55022 EN55024 CISPR 22 EN 61000-6-1 FCC CFR47 Part 15 IEC 60950-1 EN 60950-1 VCCI V-3 GR-1089-CORE ETS 300 019-2-2 Class 2.3 ETS 300 019-2-1 Class 1.1 ETS 300 019-2-3 Class 3.1E UL/CSA60950-1 ICES-003 issue 3
Width	0.7 in
Depth	9 in
Height	12.6 in
Min Operating Temperature	23 °F
Max Operating Temperature	131 °F
Humidity Range Operating	5 - 95% (non-condensing)

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
