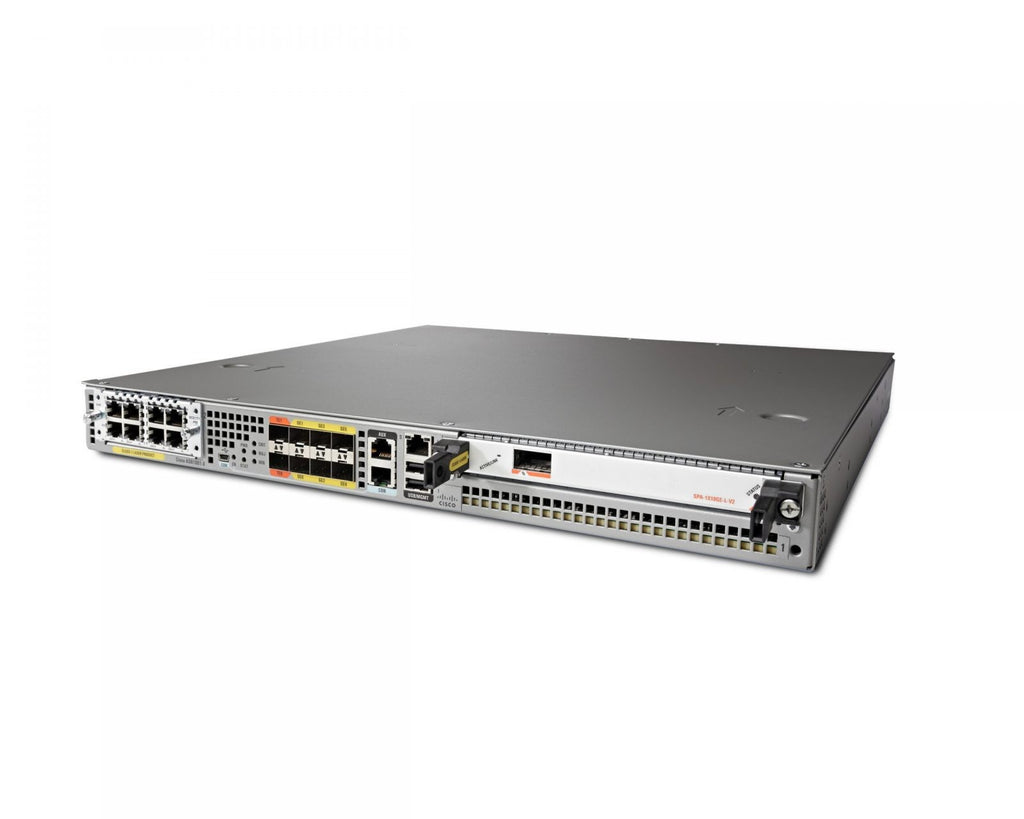

| Brand | Cisco |
| Model | ASR1001X-20G-K9 |
| Series | Cisco ASR 1000 Series Aggregation Services Routers |
| Bundle Description | ASR1001-X, 20G Base Bundle, K9, Built-in 6x1G, 2x10G |
| Product Type | Aggregation services router |
| Form Factor | 1 RU |
| Bundle Throughput Tier | 20 Gbps |
| Sustained Forwarding | Up to 20 Gbps |
| Security and Crypto Processing | Up to 8 Gbps (dedicated security processor) |
| Built-in Gigabit Ethernet Ports | 6 x SFP (SFP only, no SFP+), SyncE capable |
| Built-in 10 Gigabit Ethernet Ports | 2 x SFP+ (10 Gigabit rate only), SyncE capable |
| SPA Slots | 1 |
| NIM Slots | 1 (supports T1/E1 NIMs and the SSD NIM assembly and drive) |
| Route Processor | Integrated, quad core |
| Embedded Services Processor | Integrated |
| DRAM, Maximum | 16 GB DDR3 ECC |
| TCAM | 10 MB |
| Flash Storage | 8 GB embedded USB (eUSB) |
| Management Ethernet | 1 x 10/100/1000 |
| Console Ports | RJ-45 and mini USB |
| Auxiliary Port | 1 x RJ-45/RS-232 |
| USB Ports | 2 x USB 2.0 (flash sticks or secure tokens) |
| Power Supplies | 2, AC or DC (AC and DC not mixed in one chassis), hot-swappable, rear access |
| AC Input Voltage | 85 to 264 VAC |
| DC Input Voltage | -40 to -72 V (48 V nominal) |
| Maximum Power, AC | 250 W |
| Maximum Power, DC | 242 W |
| Internal Fans | 4 |
| Dimensions (H x W x D) | 1.71 x 17.3 x 18.17 in (43.43 x 439.42 x 461.5 mm) |
| Weight, Fully Loaded | 25 lb (11.35 kg) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Related Models | ASR1001X-10G-K9, ASR1001X-5G-K9 and ASR1001X-2.5G-K9 (lower throughput base bundles) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
