| Brand | HPE Aruba |
| Model | JL658A |

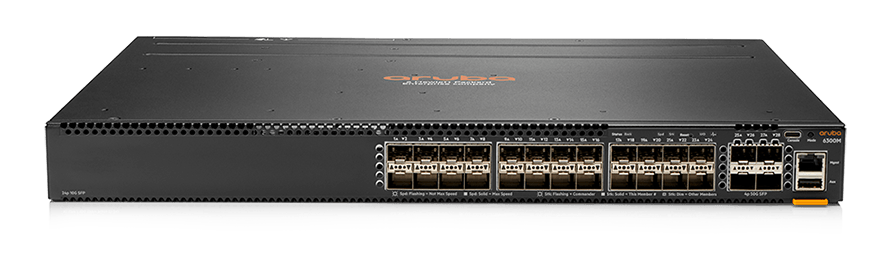

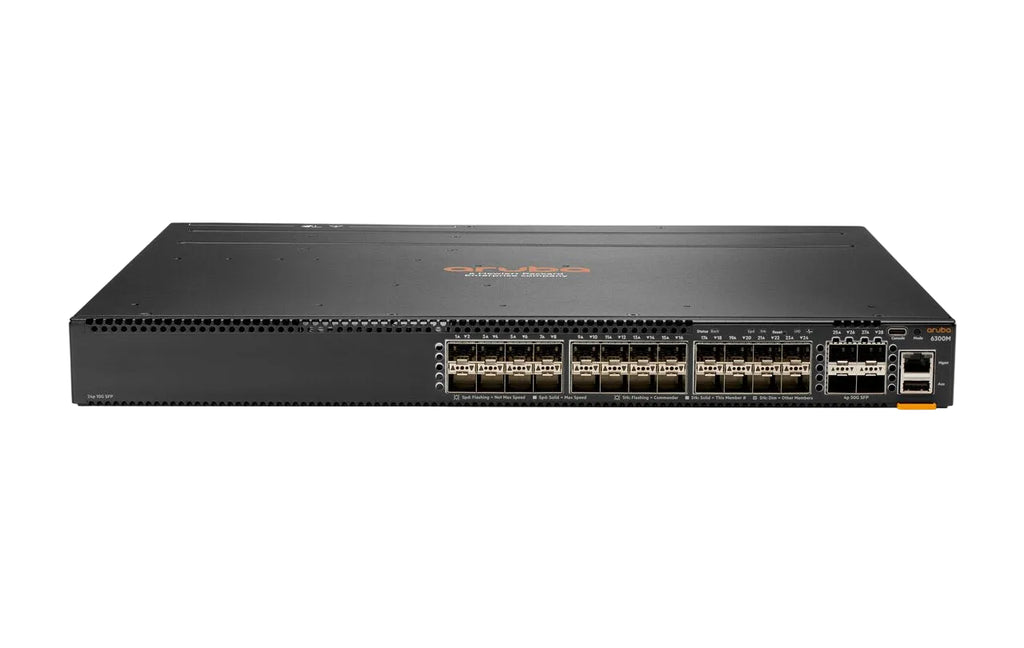

| Product Name | CX 6300M 24-port SFP+ and 4-port SFP56 Switch |
| Series | CX 6300M |
| SFP+ Ports | 24 x 1G/10G |
| SFP56 Ports | 4 x 1G/10G/25G/50G (50G for 50G direct attach cables, interconnect and VSF stacking) |
| Copper Ports | None |
| Switching Capacity | 880 Gbps |
| Throughput | 654 Mpps |
| Processor | Quad Core Arm Cortex A72, 1.8 GHz |
| Memory | 8 GB DDR4 |
| Flash | 32 GB eMMC |
| Stacking | VSF (not supported on 1G port speeds) |
| Power Supplies | Modular, hot-swappable (JL085A: 100 to 240 VAC) |
| Fans | Hot-swappable fan trays, two required |
| Console Port | 1 x USB Type-C |
| Management Port | 1 x RJ-45 out-of-band |
| USB Host Port | 1 x USB Type-A |
| Management Software | HPE Aruba Networking Central, AirWave, Switch Multi-Edit |
| Management Interfaces | Command line, SNMP v2c/v3, RMON |
| Width | 17.4 in (44.2 cm) |
| Height | 1.73 in (4.4 cm) |
| Weight | 11.27 lb (5.11 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
