| Manufacturer | Arista Networks |

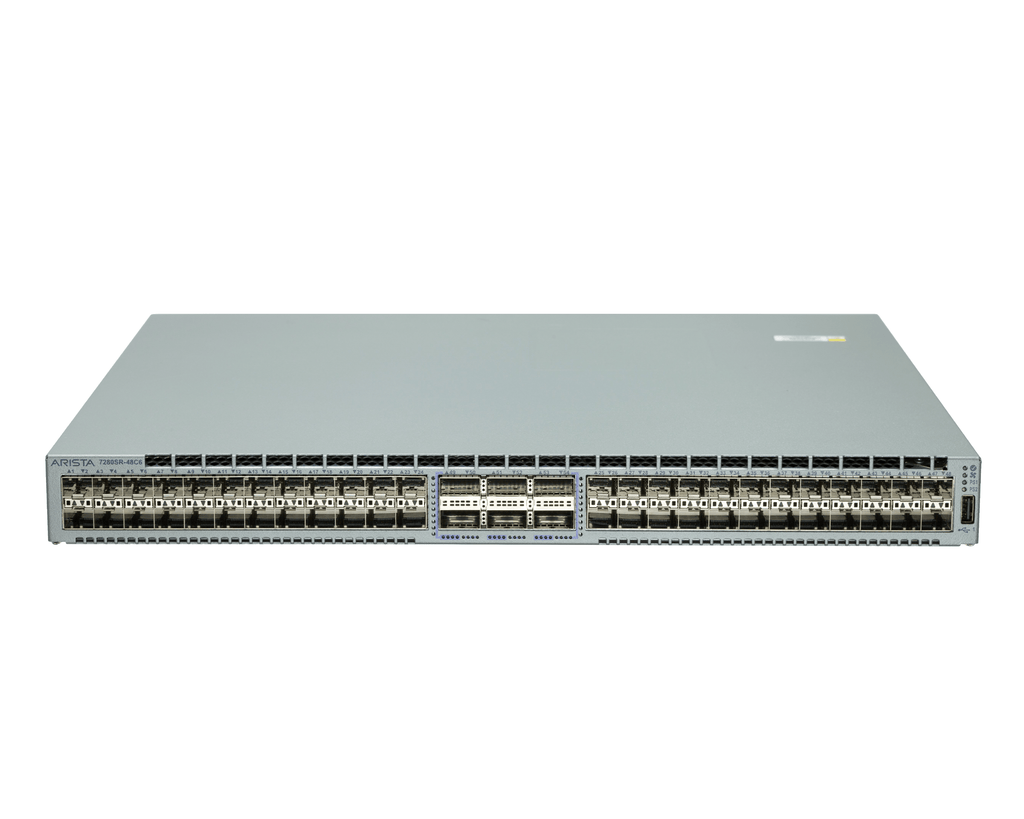

| Model | DCS-7280SE-64-R |
| Series | 7280E |
| Switch Type | Fixed Configuration Data Center Switch (L2/L3 Managed) |
| Ports | 48 x 10GbE SFP+ (1G/10G) + 4 x 40GbE QSFP+ (4x10G breakout capable) |
| Maximum Port Density | Up to 64 x 10GE (with 4x10G QSFP+ breakout) |
| PoE | No (Data Only) |
| Switching Capacity | 1.44 Tbps |
| Forwarding Rate | 900 Mpps |
| Latency | < 3.8 µs |
| Packet Buffer | 9 GB (deep buffer VOQ architecture) |
| MAC Address Table | 256,000 entries |
| ECMP | 128-way |
| MLAG | 128-way |
| ACL Entries | Up to 36,000 per module (12,000 per forwarding engine) |
| Jumbo Frame | 9,216 bytes |
| Operating System | Arista EOS |
| Layer 3 Routing | BGP, OSPF, OSPFv3, VRRP, PBR, PIM-SM, PIM-SSM, Static Routing, IS-IS |
| QoS | VOQ with advanced traffic scheduler (WFQ, strict priority, 802.1Qaz ETS) |
| Network Virtualization | VXLAN routing, bridging, and gateway |
| Monitoring | LANZ (Latency Analyzer), DANZ (Data Analyzer), sFlow, IEEE 1588 PTP, multi-port mirroring |
| Programmability | OpenFlow, eAPI, Python scripting, ZTP |
| Management | CLI, SNMP, HTTP/HTTPS, SSH, Syslog, Arista CloudVision |
| High Availability | 1+1 hot-swappable dual AC power supplies, 4 x N+1 hot-swappable fan modules |
| Airflow | Rear-to-front (back-to-front) (R model) |
| Power Supply | Dual AC (included), 2 x C13-C14 power cords included |
| Form Factor | Rack-mountable (1RU) |
| Dimensions (W x H x D) | 19 x 1.75 x 20.6 in |
| Weight | 22 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
