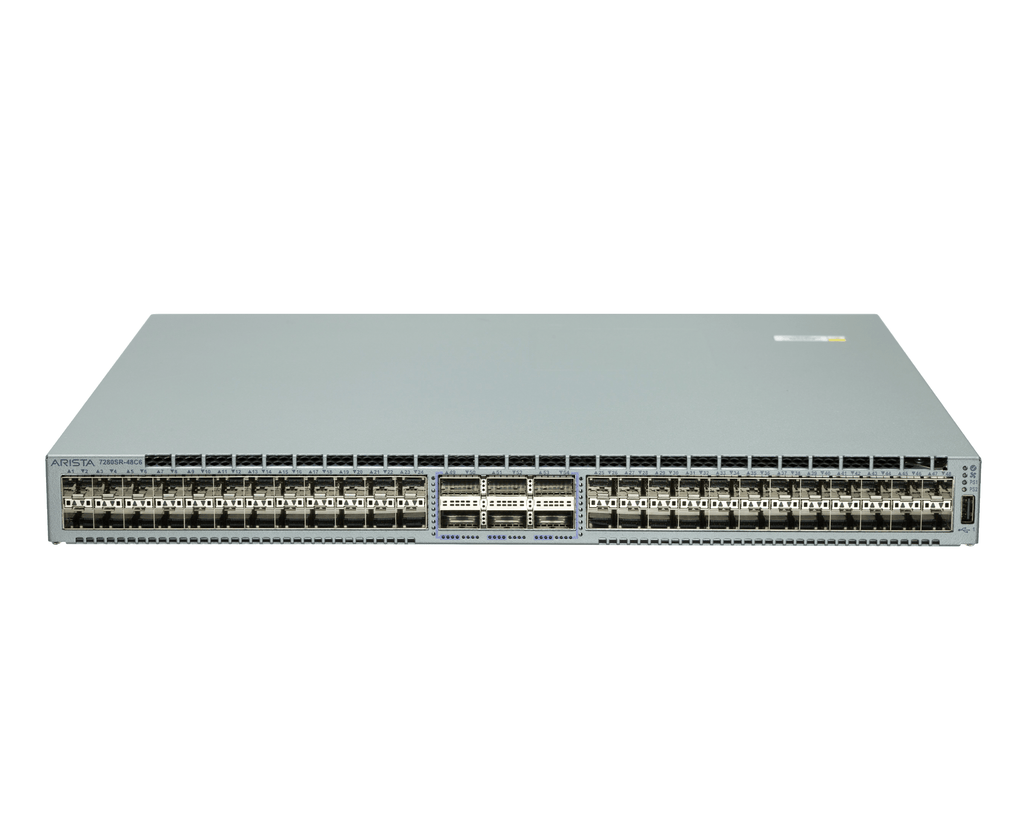

Arista DCS-7280SR-48C6-F 48x 10GbE SFP+ 6x 100GbE QSFP Switch F-R Airflow

Roll over image to zoom in Click on image to zoom

Arista DCS-7280CR2A-60-F

The Arista 7280R Series of fixed systems, including the 7280R, 7280RA, 7280R2, 7280R2A and the 7280R2K, are key components of the Arista 7000 Series portfolio of data center switches. The Arista 7280R Series are purpose built 10/25/40/100GbE systems built for the highest performance environments, and to meet the needs of the largest scale data centers and service providers They deliver scalable L2 and L3 resources and high density with advanced features for network monitoring, precision timing and network virtualization to deliver scalable and deterministic network performance while simplifying designs and reducing Opex. The 7280R capabilities address the requirements for modern networking and rich multi-media content delivery requiring a lossless forwarding solution in a compact and energy efficient form factor.

The 7280R can be deployed in a wide range of open networking solutions including large scale layer 2 and layer 3 cloud designs, overlay networks, virtualized or traditional enterprise data center networks. Deep packet buffers and large routing tables allow for internet peering, interconnect and Inter-DC networking. The broad range of interfaces and density choice provides deployment flexibility.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Device Type	Switch - 60 ports - L3 - managed
Enclosure Type	Front to back airflow rack-mountable 2U
Subtype	100 Gigabit Ethernet
Ports	60 x 100 Gigabit QSFP
Performance	Throughput: 12 Tbps \| Switching capacity: 5.02 Bpps \| Latency: 3.8 µs
Capacity	Host IPv4 routes: 768000 \| Host IPv6 routes (Unicast): 768000 \| Multicast routes: 768000 \| Equal-Cost Multipathing (ECMP) ways: 128 \| LAG groups: 1152 \| Virtual interfaces (VLANs): 4096 \| ACL entries: 24000 \| IPv4 routes (Unicast LPM): 1000000 \| IPv6 routes (Unicast LPM): 1000000 \| 50GbE ports: 120 \| 40GbE ports: 60 \| 25GbE ports: 240 \| 10GbE ports: 240
MAC Address Table Size	768K entries
Jumbo Frame Support	9216 bytes
Routing Protocol	OSPF, IS-IS, RIP-2, BGP, IGMPv2, VRRP, PIM-SM, static IP routing, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD)
Remote Management Protocol	SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Authentication Method	RADIUS, TACACS
Features	ARP support, IGMP snooping, Syslog support, traffic shaping, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Weighted Fair Queuing (WFQ), sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Unicast Reverse Path Forwarding (URPF), Rapid Per-VLAN Spanning Tree Plus (PVRST ), IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Strict Priority Queuing (SPQ), hot swappable 4 fans, Class of Service (CoS), Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, hot swappable power supply, MAC and IP-based ACLs support, Storm Control, Virtual Output Queuing (VOQ), Explicit Congestion Notification (ECN), Priority-Based Flow Control (PFC), VLAN Trunking Protocol (VTP), Virtual Extensible LAN (VXLAN), rate limit, 8GB packet buffer, Authentication, Authorization and Accounting (AAA), VLAN Double Tagging (Q-in-Q), Multi-Chassis Link Aggregation (MLAG), Enhanced Latency Analyzer and Microburst Detection (LANZ), Advanced Event Management suite (AEM), CloudVision, Zero-touch provisioning (ZTP), 3 1 redundant fans, Virtual ARP
Compliant Standards	IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3by
RAM	24 GB
Flash Memory	4 GB
Interfaces	1 x management (Gigabit LAN) RJ-45 \| 1 x management (RS-232) RJ-45 \| 60 x 100Gbit LAN QSFP \| 1 x USB
Power Device	Internal power supply - hot-plug
Installed Qty	2 (installed) / 2 (max)
Power Redundancy	Yes
Power Redundancy Scheme	1 1
Power Provided	1900 Watt
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	1660 Watt
Compliant Standards	C-Tick, BSMI, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, CB, CCC, EMC, FCC, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, NEBS, NRTL, EAC, MSIP, EN 61000-3-11:2000, EN 61000-3-12:2011, CSA 22.2 No. 60950-1, EN 300 386
Width	19 in
Depth	25.2 in
Height	3.5 in
Weight	54.89 lbs
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	5 - 95%
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
