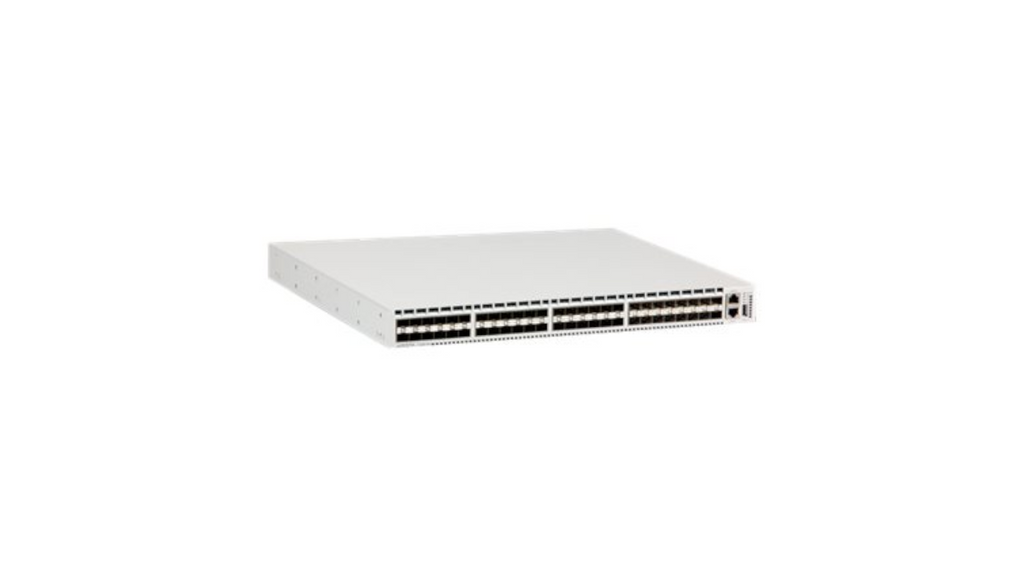

| Device Type | Switch - 52 ports - L3 - managed |
|---|---|
| Enclosure Type | Front to back airflow desktop rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 52 x SFP |
| Performance | Switching capacity: 1.04 Tbps |
| Capacity | Virtual interfaces (VLANs): 4096 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF IS-IS RIP-2 BGP IGMPv2 IGMP VRRP PIM-SM IGMPv3 Multiprotocol BGP static IPv4 routing static IPv6 routing ECMP Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 2 Telnet SNMP 3 SSH-2 CLI |
| Authentication Method | RADIUS TACACS |
| Features | Flow control layer 3 switching layer 2 switching DHCP support NAT support VLAN support IGMP snooping Syslog support port mirroring MAC address filtering IPv6 support High Availability Spanning Tree Protocol (STP) support Multiple Spanning Tree Protocol (MSTP) support Access Control List (ACL) support Quality of Service (QoS) Jumbo Frames support IPv4 support Link Aggregation Control Protocol (LACP) Zero Touch Auto Provisioning |
| Compliant Standards | IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.3ae IEEE 802.1s IEEE 802.1ab (LLDP) IEEE 802.3ba |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Interfaces | 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 management ¦ 1 x RS-232 - RJ-45 management ¦ 1 x USB Type A ¦ 52 x 10Gb Ethernet / 1Gb Ethernet - SFP |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 191 Watt |
| Compliant Standards | UL TUV EN 60950 VCCI Class A ITE IEC 60950 UL 60950 CSA 22.2 No. 60950 ICES-003 Class A RoHS FCC Part 15 A |
| Width | 17.5 in |
| Depth | 16 in |
| Height | 1.7 in |
| Weight | 18.98 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
