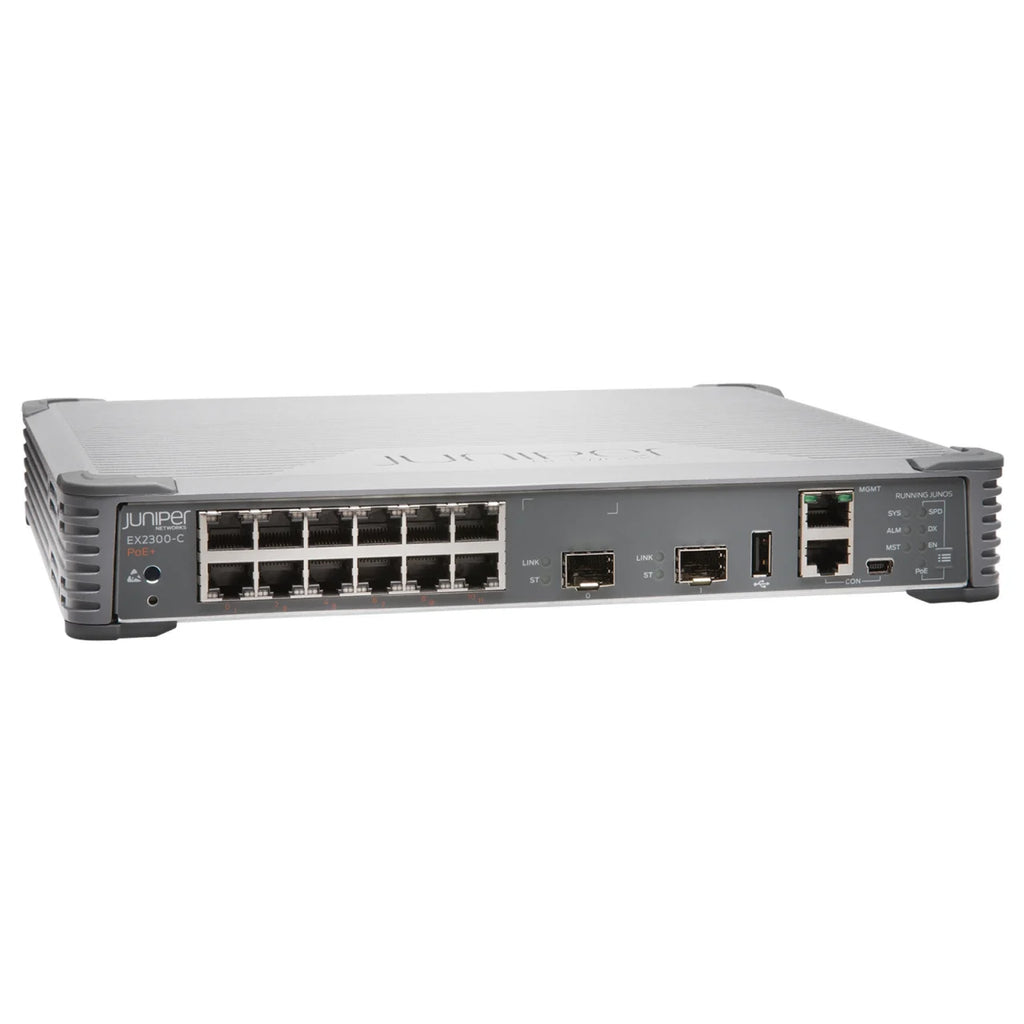

JUNIPER EX2300-C-12P SWITCH 12 PORT 10/100/1000 BASE-T - New

Condition:  new     MPN:  EX2300-C-12P
Price:
Sale price$1,097.00
Stock:
In stock
View full product specifications

Overview

Dimensions (W x H x D) 10.98 x 1.72 x 9.4 in (27.9 x 4.4 x 23.9 cm)
Weight 6.99 lb (3.17 kg)
Backplane 40 Gbps Virtual Chassis interconnect to link up to four switches as a single logical device
Hardware Specifications
Switching Engine Model Store and forward
DRAM 2 GB with ECC
Flash 2 GB
CPU 1.25GHz ARM CPU
GbE port density per system 14 (12 access ports 2 uplink ports)
Physical Layer Physical port redundancy: Redundant trunk group (RTG) Cable diagnostics for detecting cable breaks and shorts Auto medium-dependent interface/medium-dependent interface crossover (MDI/MDIX) support Port speed downshift/setting maximum advertised speed on 10/100/1000BASE-T ports Digital optical monitoring for optical ports
Packet-Switching Capacities (Maximum with 64-Byte Packets) 64 Gbps
Power Options
Power Supplies Fixed internal power supply (AC) 20 W AC Max. System Power Consumption (Input Power without PoE)
Environment
Operating Temperature 32° to 104° F (0° to 40° C)1,2
Storage Temperature -40° to 158° F (-40° to 70° C)
Relative Humidity (Operating) 10% to 85% (noncondensing)
Relative Humidity (Non-Operating) 0% to 95% (noncondensing)
Altitude (Operating) Up to 5,000 ft (1524 m)
Altitude (Non-Operating) Up to 16,000 ft (4877 m)
Cooling Fanless operation
Noise Specifications
Noise Specifications 0 db (fanless)
Safety and Compliance
Safety Certifications UL-UL60950-1 (Second Edition) C-UL to CAN/CSA 22.2 No.60950-1 (Second Edition) TUV/GS to EN 60950-1 (Second Edition) CB-IEC60950-1 (Second Edition with all country deviations) EN 60825-1 (Second Edition)
Electromagnetic Compatibility Certifications FCC 47CFR Part 15 Class A EN 55022 Class A ICES-003 Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 22 Class A EN 55024 EN 300386 CE
Telecom Quality Management TL9000
Telco CLEI code

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
