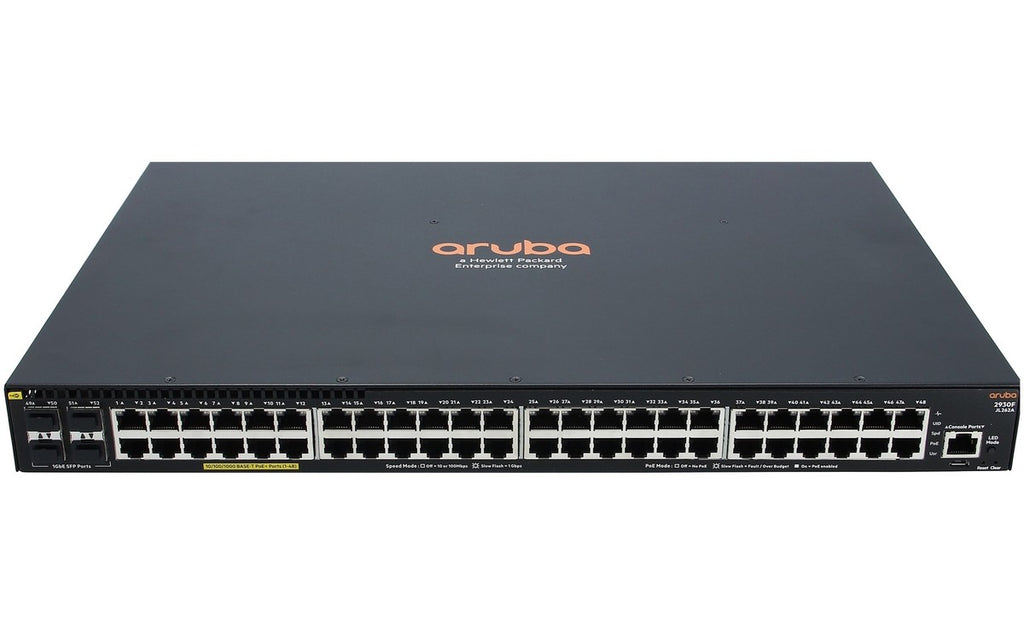

| Part Number | JL262A |
| Series | HPE Aruba 2930F |
| Product Type | Stackable Layer 3 Managed Switch |
| Access Ports | 48x 10/100/1000 GbE RJ-45, PoE+ (802.3at) |
| PoE Standard | IEEE 802.3at PoE+, 30W per port |
| PoE Budget | 370W |
| Uplink Ports | 4x 1G SFP (note: not SFP+; see JL263A for 10G uplinks) |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.4 Mpps |
| Latency | 3.8 µs at 1G |
| MAC Address Table | 32,768 entries |
| Jumbo Frames | 9,220 bytes |
| IPv4 Routing Table | 10,000 entries |
| IPv6 Routing Table | 5,000 entries |
| Stacking | VSF; up to 8 switches |
| Layer | Layer 3 |
| Routing | OSPF, RIPv1/v2, static, VRRP, PIM, ECMP, IPv6 |
| Security | 802.1X, ACLs, Dynamic Segmentation, Tunnel Node, RADIUS, TACACS+ |
| SDN | OpenFlow 1.3, REST API |
| ASIC | Aruba ProVision |
| Management | Aruba Central, AirWave, ClearPass, web GUI, CLI, SNMP |
| Provisioning | Zero Touch Provisioning (ZTP) |
| Software License | Not required |
| Power Supply | 80 PLUS Silver internal; IEEE 802.3az EEE |
| Dimensions (W x D x H) | 17.42 x 11.98 x 1.73 in |
| Weight | 9.83 lb |
| Form Factor | 1RU rack-mountable |
| Certifications | FCC, CE, RoHS, IEEE 802.3at, 802.3az EEE |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
