Cisco NIM-ES2-4 ISR 4000 4-Port Gigabit Ethernet Layer 2 Switch Network Interface Module - New

CISCO NIM-ES2-4 4-PORTS GIGABIT ETHERNET LAN SWITCH MODULE ISR ROUTER

Roll over image to zoom in Click on image to zoom

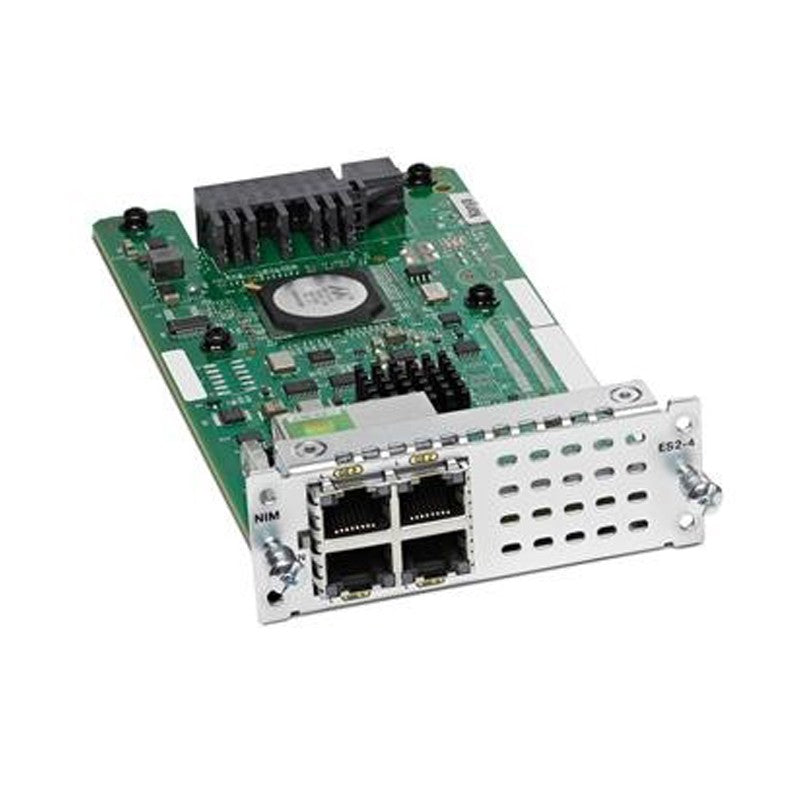

The Cisco NIM-ES2-4 is a 4-port Layer 2 Gigabit Ethernet LAN switch Network Interface Module for the Cisco 4000 Series ISR platform. The module installs into a single-wide NIM slot on ISR 4221, 4321, 4331, 4351, 4431, and 4451 routers, integrating switch port capacity directly into the router chassis without requiring a separate switch device. All four ports are 10/100/1000 RJ-45 with autonegotiation and IEEE 802.3ab compliance. The module supports Layer 2 switching features including IEEE 802.1Q VLANs, IEEE 802.1D Spanning Tree, IEEE 802.1p CoS traffic prioritization, IEEE 802.1X port-based security, and four egress QoS queues per port with SDWRR scheduling. VLAN trunking, port mirroring, and Switch Virtual Interfaces for inter-VLAN routing are supported. The NIM-ES2-4 does not include PoE, the NIM-ES2-8-P variant supports PoE/PoE+. Managed via the router CLI using IOS XE; minimum supported release is IOS XE 3.15. RMON groups 1, 2, 3, and 9 are supported for traffic monitoring.

Manufacturer	Cisco Systems
Part Number	NIM-ES2-4
Product Type	Layer 2 GE LAN Switch NIM
Compatible Platforms	Cisco ISR 4221; 4321; 4331; 4351; 4431; 4451
Form Factor	Single-wide NIM
Ports	4x 10/100/1000BASE-T RJ-45 (non-PoE)
Layer 2	IEEE 802.1Q VLAN; 802.1D STP; 802.1p CoS; 802.1X; 4x egress QoS queues (SDWRR)
Management	Cisco IOS XE CLI; SNMP; Telnet; RMON groups 1/2/3/9
Min IOS XE Release	3.15 (IP Base license)
PoE	Not supported (see NIM-ES2-8-P for PoE/PoE+)
Dimensions	0.8 x 3.1 x 4.8 in
Weight	0.17 lbs

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
